Shift Panel Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  3. Hold the shaded area shown in the figure, remove the shift panel in the direction of the arrows in the order of (1), (2) while detaching clips A and clips B.

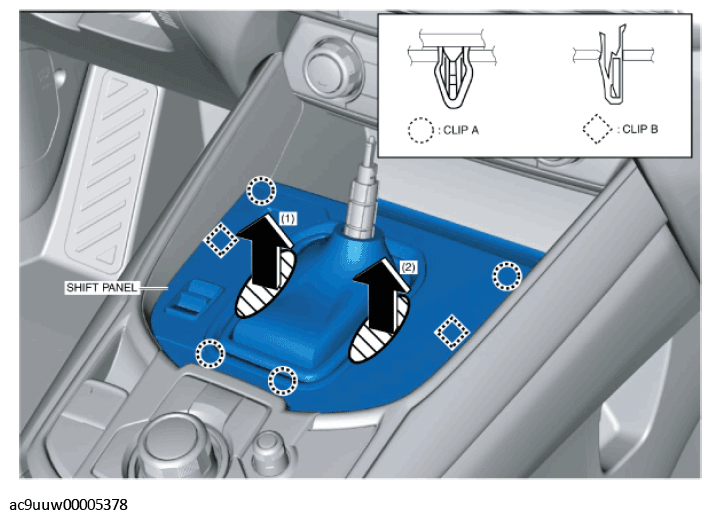

    Fig 1: Removing Shift Panel
    G11435009Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.

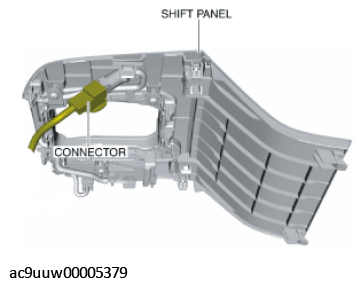

    Fig 2: Shift Panel And Connector
    G11435010Courtesy of MAZDA MOTORS CORP.
  5. Remove the shift panel.
  6. Remove the front console box when replacing the shift panel while detaching the clips.

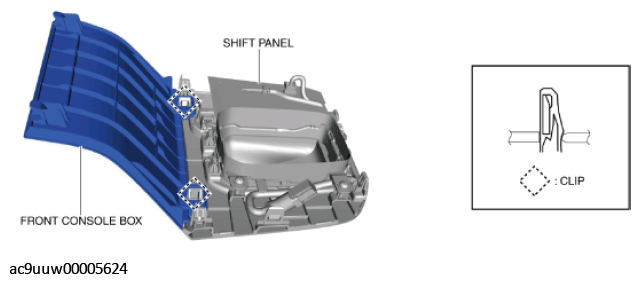

    Fig 3: Front Console Box, Shift Panel And Clips
    G11435011Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
