Retractable Fastback

Using the retractable fastback switch, keep the rear roof open.

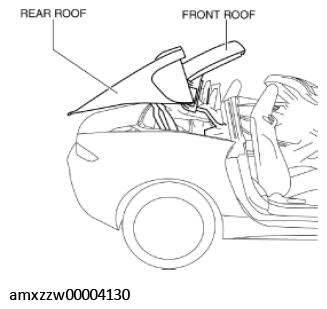

Fig 1: Identifying Rear And Front Roof
Courtesy of MAZDA MOTORS CORP.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
Remove the following parts:
1. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION ).
2. Shift lever knob (MT)
3. Shift panel assembly (See SHIFT PANEL REMOVAL/INSTALLATION ).
4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
5. Parking brake lever boot panel(See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION ).
6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION ).
7. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION ).
8. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION ).
9. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION ).
10. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION ).
11. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION ).
12. Back trim (See BACK TRIM REMOVAL/INSTALLATION ).
13. Side shelf (See SIDE SHELF REMOVAL/INSTALLATION ).
Remove the retractable fastback control module from the seat back crossmember assembly and set it aside so that it does not interfere with the servicing.(See RETRACTABLE FASTBACK CONTROL MODULE REMOVAL/INSTALLATION ).
Remove the fasteners.

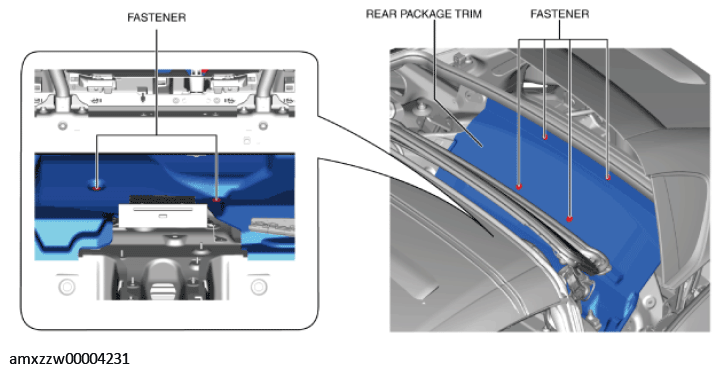

Fig 2: Identifying Fasteners And Rear Package Trim
Courtesy of MAZDA MOTORS CORP.
Remove the rear package trim.
Install in the reverse order of removal.
