Idler Disassembly/Assembly: Notes
NOTE:
- The idler is only installed to vehicles without A/C.

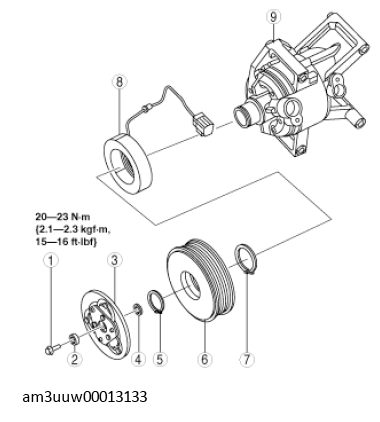

- Disassemble in the order shown in the figure.
- Assemble in the reverse order of disassembly.
- Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
COMPONENT DESCRIPTION
| 1 | Bolt (See Bolt Removal/Installation Note .) |
| 2 | Shim |
| 3 | Pressure plate (See Pressure Plate Installation Note .) |
| 4 | Shim |
| 5 | Snap ring (1) (See Snap Ring Removal/Installation Note .) (See Snap Ring (1) Installation Note .) |
| 6 | Idler pulley (See Idler Pulley Removal Note .) (See Idler Pulley Installation Note .) |
| 7 | Snap ring (2) (See Snap Ring Removal/Installation Note .) (See Snap Ring (2) Installation Note .) |
| 8 | Stator |
| 9 | Idler body |
