Bolt Removal/Installation Note

  1. When removing or installing the bolt, lock the idler pulley against rotation using the following procedure.
CAUTION:
  • When connecting the positive battery cable to the magnetic clutch connector, use a cable with a female terminal of the correct size. Otherwise, load will be applied to the male terminal, resulting in deformation or damage, and poor contact. In addition, the positive battery cable could disconnect from the connector resulting in a short circuit.
  1. Apply battery positive voltage to the magnetic clutch terminal and apply battery negative voltage to the idler body.

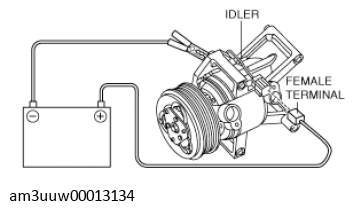

    Fig 1: Applying Battery Positive Voltage To Magnetic Clutch Terminal
    G11550138Courtesy of MAZDA MOTORS CORP.
  2. Wrap the no longer usable drive belt tightly around the idler pulley.

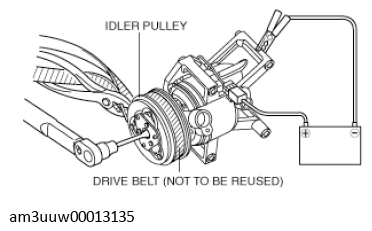

    Fig 2: Wrapping Drive Belt Around Idler Pulley
    G11550139Courtesy of MAZDA MOTORS CORP.
  3. Hold the drive belt in place with pliers.
  4. Remove or install the bolt.
  5. When replacing the idler body, replace the bolt.
