Snap Ring Removal/Installation Note

Remove/install the snap ring using snap ring pliers.

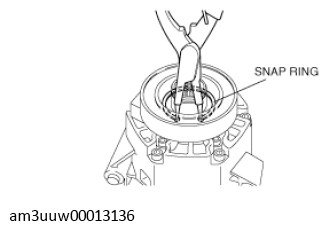

Fig 1: Installing Snap Ring Using Snap Ring Pliers

G11550140

Courtesy of MAZDA MOTORS CORP.
