Front Airflow Mode Actuator Inspection
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
- Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
- Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
- Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
- Glove compartment (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
- Dashboard under cover (Refer to DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
- Passenger-side decoration panel (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
- Front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Hood release lever (Refer to HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
- Fuel-filler lid opener lever (Refer to FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
- Driver-side lower panel (Refer to DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
- Passenger-side lower panel (Refer to PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
- Passenger-side front heat duct (Refer to FRONT HEAT DUCT REMOVAL/INSTALLATION .)
- Remove the front airflow mode actuator. (Refer to FRONT AIRFLOW MODE ACTUATOR REMOVAL .)

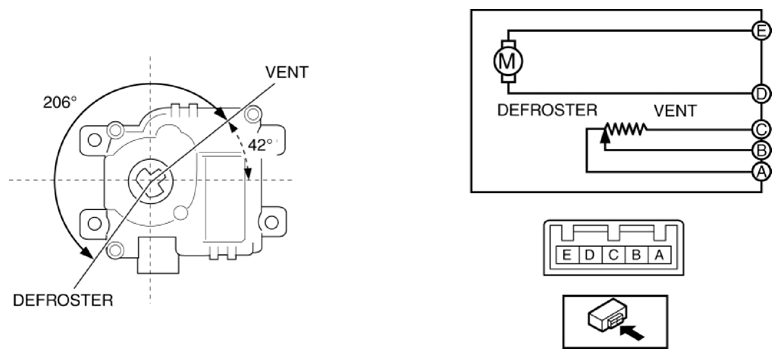

- Apply battery positive voltage and connect the ground to the front airflow mode actuator terminals as indicated in the table below and verify the operation condition.

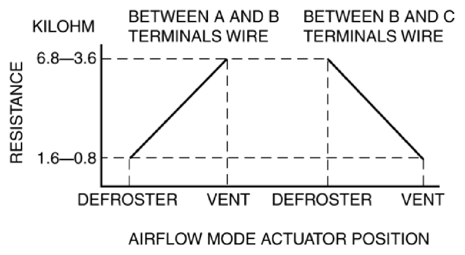

B+ Terminal Ground Terminal Operation D E VENT → DEFROSTER E D DEFROSTER → VENT - Verify that the resistance between terminals A and B, B and C matches the front airflow mode actuator operation as shown in the graph.
- If the operation condition and resistance are not normal, replace the front airflow mode actuator. (Refer to FRONT AIRFLOW MODE ACTUATOR REMOVAL .) (Refer to FRONT AIRFLOW MODE ACTUATOR INSTALLATION .)
