Foot Support Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Passenger-side front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    6. Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
    7. Side wall (Refer to SIDE WALL REMOVAL/INSTALLATION .)
    8. Rear console (Refer to REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Partially peel back the floor covering.
  4. Remove the fastener.

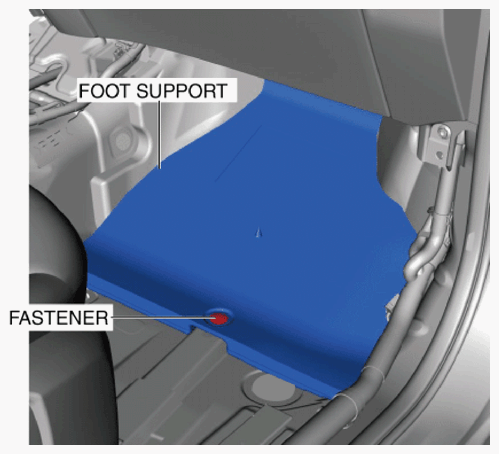

    Fig 1: Identifying Foot Support And Fastener
    G10950346Courtesy of MAZDA MOTORS CORP.
  5. Pull the foot support in the direction of the arrow and remove it.

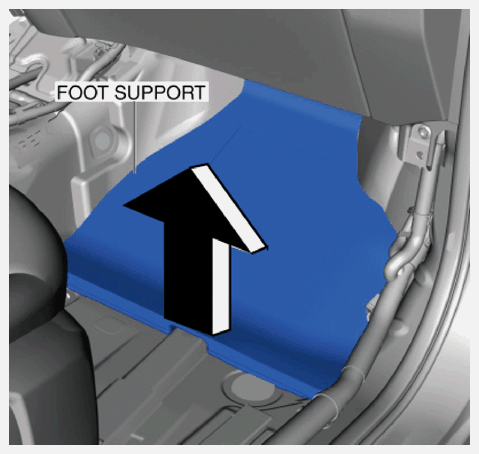

    Fig 2: Pulling Foot Support
    G10950347Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
