Rear Console Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
    5. Side wall (Refer to SIDE WALL REMOVAL/INSTALLATION .)
  3. Move the rear console panel in the direction of the arrow shown in the figure, and detach clips A and clips B.

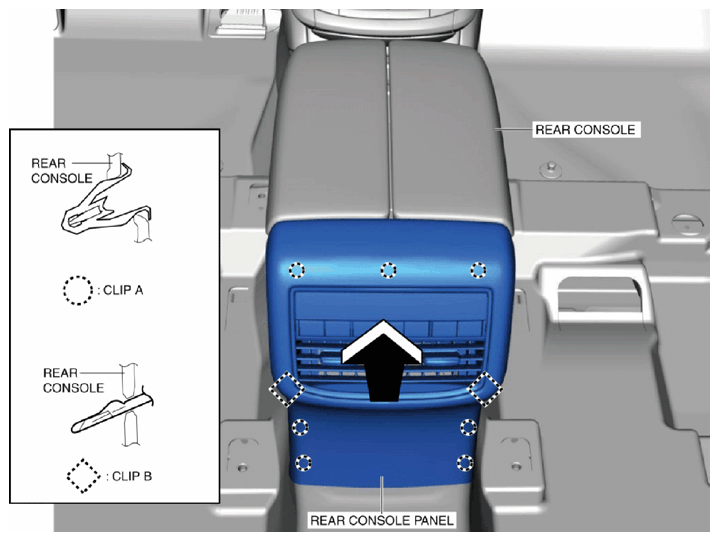

    Fig 1: Moving Rear Console Panel
    G10950225Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector and remove the harness clip

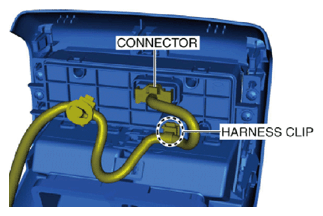

    Fig 2: Identifying Harness Clip
    G10950226Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear heat duct No. 1. (Refer to REAR HEAT DUCT No. 1 REMOVAL/INSTALLATION .)
  6. Disconnect the connectors.

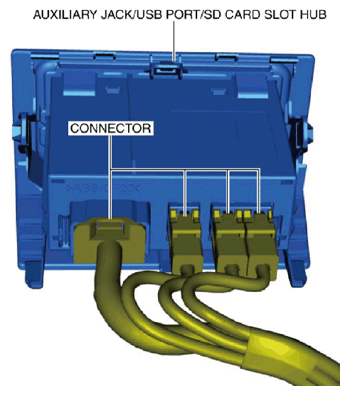

    Fig 3: Disconnecting Connectors
    G10950227Courtesy of MAZDA MOTORS CORP.
  7. Remove the harness clips.

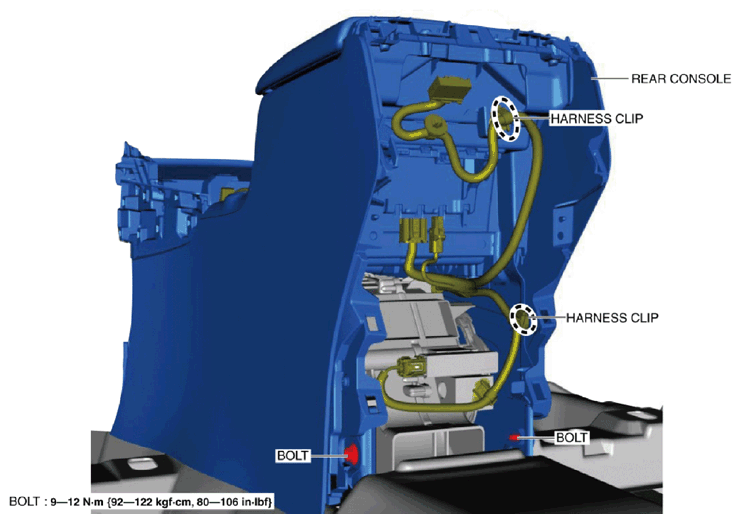

    Fig 4: Removing Harness Clips
    G10950228Courtesy of MAZDA MOTORS CORP.
  8. Remove the bolts.
  9. Remove the bolts.

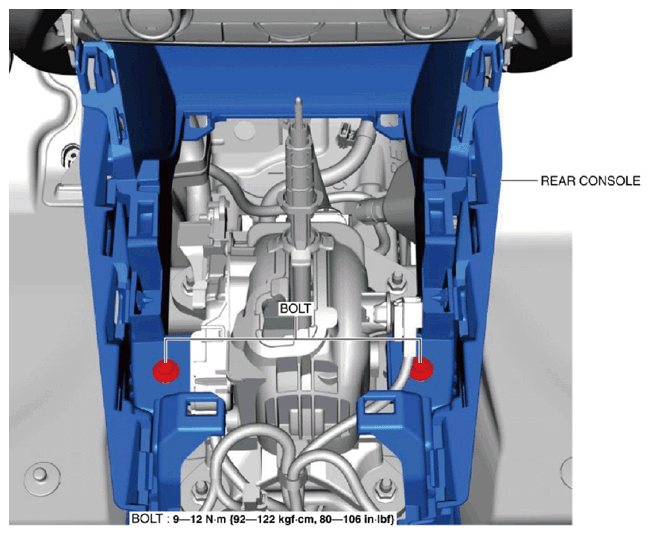

    Fig 5: Removing Bolts
    G10950229Courtesy of MAZDA MOTORS CORP.
  10. Pull the rear console in the direction of the arrow shown in the figure and remove it while detaching the clips.

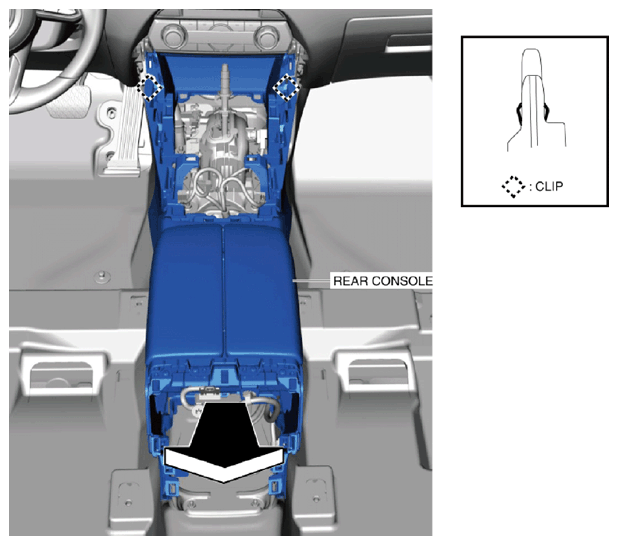

    Fig 6: Pulling Rear Console
    G10950230Courtesy of MAZDA MOTORS CORP.
  11. Install in the reverse order of removal.
