Front Console Removal/Installation

CAUTION:

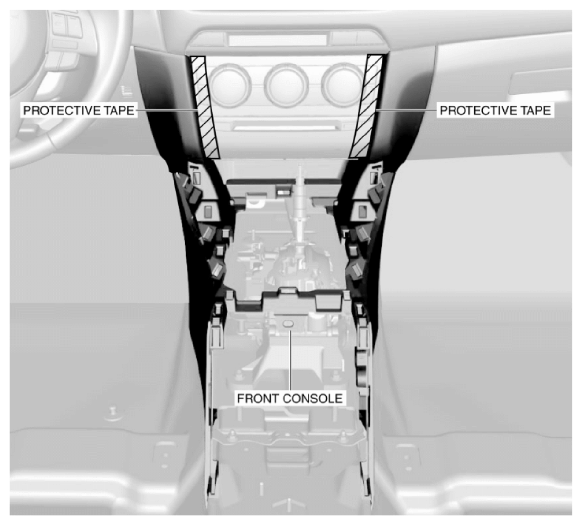

  • Affix protective tape to the position shown in the figure.
Fig 1: Identifying Front Console Protective Tape
G11011927Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    7. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    8. CD player (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
    9. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)

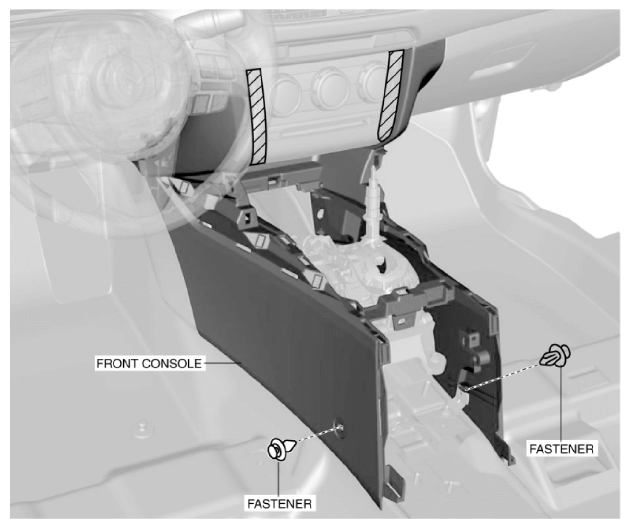

  3. Remove fasteners.
    Fig 2: Identifying Front Console Fasteners
    G11011928Courtesy of MAZDA MOTORS CORP.

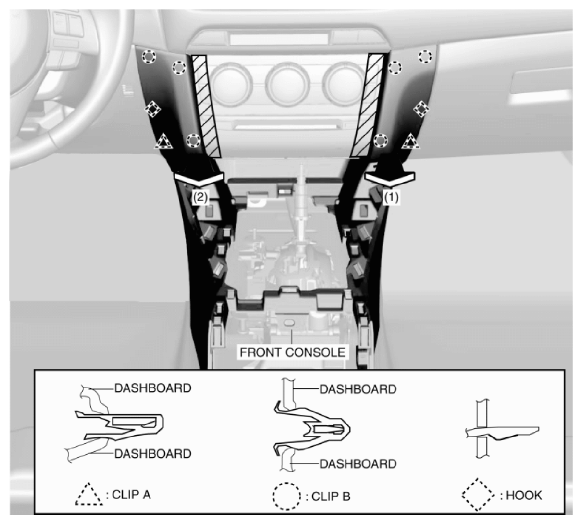

  4. Pull the front console in the direction of the arrow in the order of (1), (2) and remove it while detaching clips A, clips B and hooks.
    Fig 3: Pulling Out Front Console
    G11011929Courtesy of MAZDA MOTORS CORP.
  5. Remove the wiring harness clip.

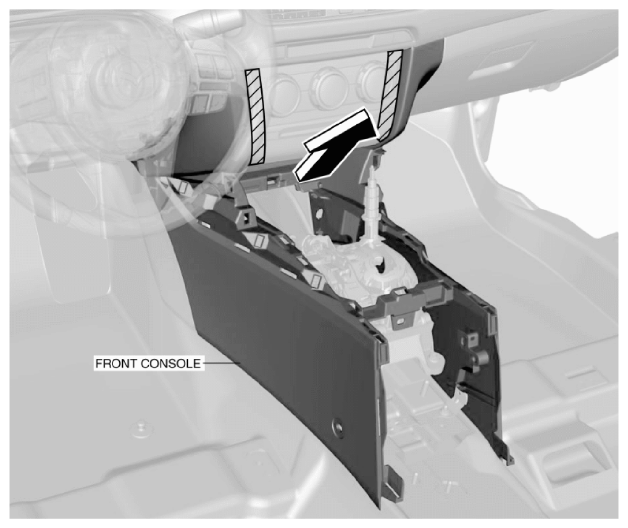

  6. Remove the front console in the direction of the arrow shown in the figure.
    Fig 4: Removing Front Console
    G11011930Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
