Front Console Box Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    4. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
  3. Pull the front console box in the direction of the arrow (1) and remove it while detaching clips and pin.

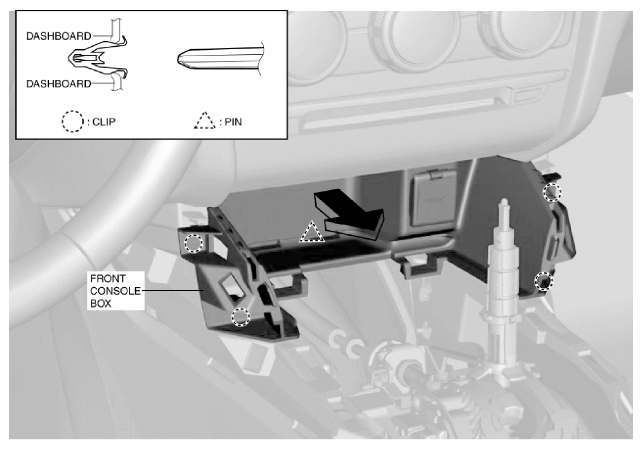

    Fig 1: Pulling Out Front Console Box
    G11011975Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
