Console Side Panel Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
  3. Remove the console side panel in the direction of arrow shown in the figure while detaching clips.

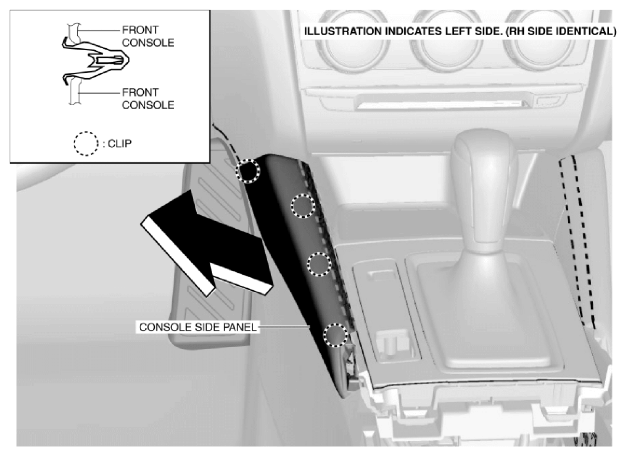

    Fig 1: Removing Console Side Panel
    G11012065Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
