Idler Disassembly/Assembly: Notes

1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
3. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)

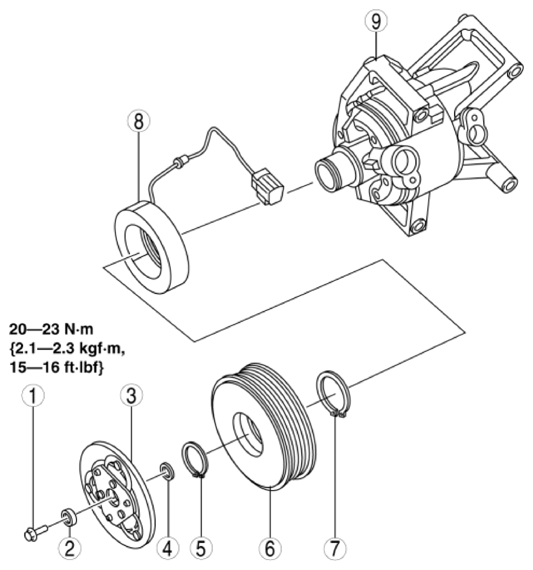

   Fig 1: Identifying Shim Bolt With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
   COMPONENT DESCRIPTION



   1	Bolt (See BOLT REMOVAL/INSTALLATION NOTE .)
   2	Shim
   3	Pressure plate (See PRESSURE PLATE INSTALLATION NOTE .)
   4	Shim
   5	Snap ring (1) (See SNAP RING REMOVAL/INSTALLATION NOTE .) (See SNAP RING (1) INSTALLATION NOTE .)
   6	Idler pulley (See IDLER PULLEY REMOVAL NOTE .) (See IDLER PULLEY INSTALLATION NOTE .)
   7	Snap ring (2) (See SNAP RING REMOVAL/INSTALLATION NOTE .) (See SNAP RING (2) INSTALLATION NOTE .)
   8	Stator
   9	Idler body
