Snap Ring Removal/Installation Note

  1. Remove/install the snap ring using snap ring pliers.

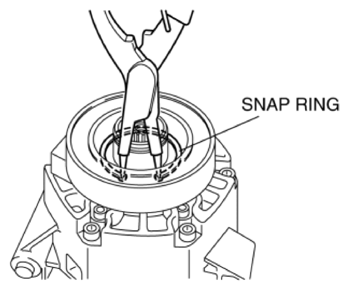

    Fig 1: Installing Snap Ring Using Snap Ring Pliers
    G10959872Courtesy of MAZDA MOTORS CORP.
