Snap Ring (2) Installation Note

  1. When replacing the stator (stator and thermal protector) or idler body, replace the snap ring (2).

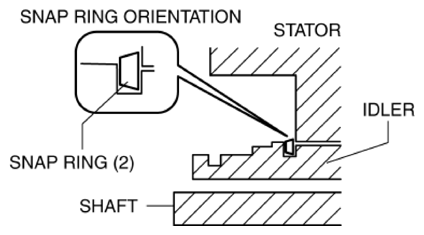

    Fig 1: Installing Snap Ring
    G10959873Courtesy of MAZDA MOTORS CORP.
