Outer Mirror Garnish Removal/Installation
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
- Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL ). (See OUTER MIRROR GLASS INSTALLATION ).

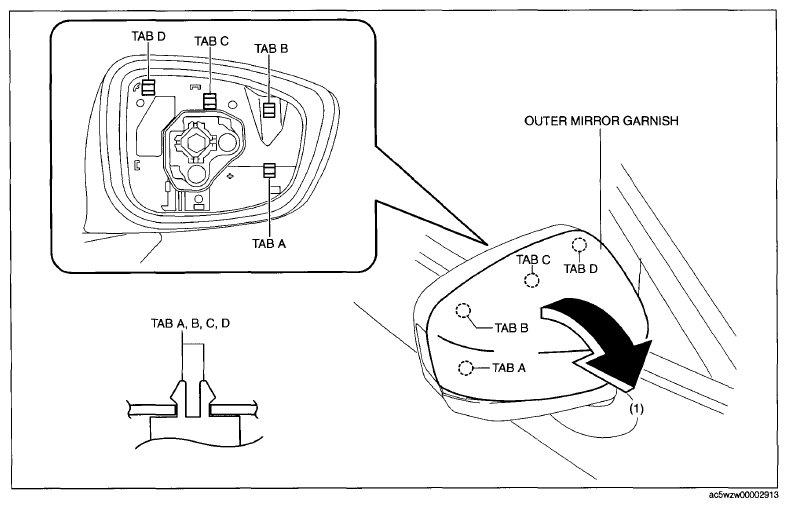

- Insert a tape-wrapped flathead screwdriver into the upper outer mirror garnish and remove tab A, B, C, D in the direction of arrow (1).
- Insert a tape-wrapped flathead screwdriver into the upper outer mirror garnish and remove tab F, G in the direction of arrow (2).
- Install in the reverse order of removal.
