Outer Mirror Glass Removal

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Press area A of the outer mirror glass shown in r the figure so that area B moves outward.
Put your hand on the lower part of the outer mirror glass and while supporting the hatch-marked area shown in the figure, remove pin C in the direction of the arrow (1).
CAUTION:
- When removing the outer mirror glass, if excessive force is applied to the area other than cross-hatched area, the outer mirror glass could be damaged.
Fig 1: Pressing Outer Mirror Glass Area A

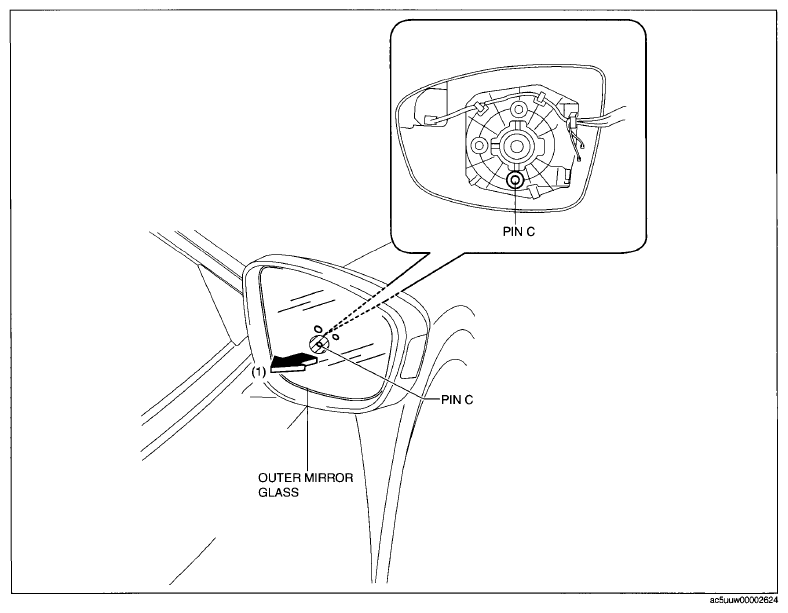

Fig 2: Removing Outer Mirror Glass Pin C
Press area D of the outer mirror glass shown in the figure so that area E moves outward.
Put your hand on the side part of the outer mirror glass and while supporting the hatch-marked area shown in the figure, remove pin F, pin G in the direction of the arrow (2).
CAUTION:
- When removing the outer mirror glass, if excessive force is applied to the area other than cross-hatched area, the outer mirror glass could be damaged.
Fig 3: Pressing Outer Mirror Glass Area D

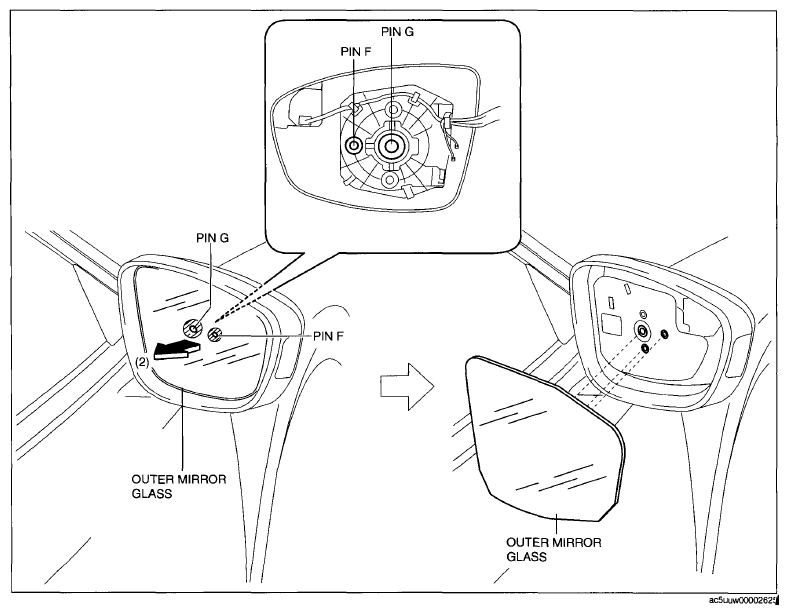

Fig 4: Removing Outer Mirror Glass Pin F And G
Pull the outer mirror glass in the direction of the arrow (1) and remove it while detaching the pin E from the mirror glass holder.
Remove the harness from hooks F.

Fig 5: Identifying F Hooks Harness
Disconnect the mirror heater connectors, (with heated outer mirror)

Fig 6: Identifying Mirror Heater Connector

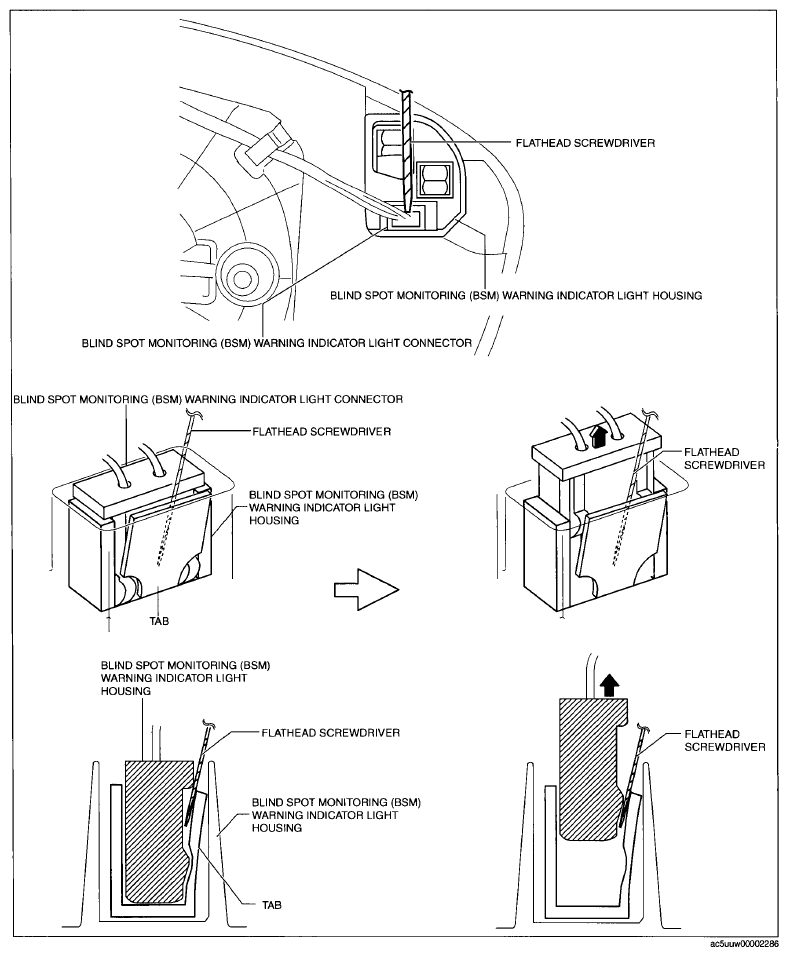

Insert a tape-wrapped flathead screwdriver to the position shown in the figure, remove the blind spot monitoring (BSM) warning indicator light connector (with blind spot monitoring system).
CAUTION:
- The connector can be easily deformed, therefore do not apply excessive force.
Fig 7: Removing Mirror Glass Holder And Outer Mirror Glass
Remove the mirror glass holder and the outer mirror glass as a single unit.
