Outer Mirror Glass Installation
- Connect the mirror heater connectors, (with heated outer mirror)
- Connect the blind spot monitoring (BSM) warning indicator light connector (with blind spot monitoring system).NOTE:

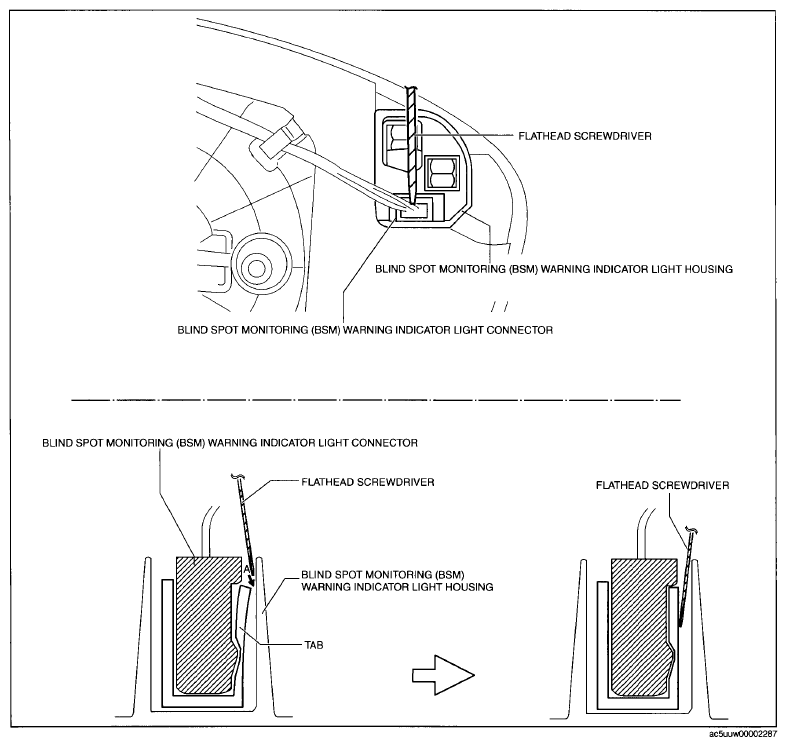

- Lightly pull the blind spot monitoring (BSM) warning indicator light connector and verify that the blind spot monitoring (BSM) warning indicator light housing cannot be pulled off. If the connection is poor, insert a tape-wrapped flathead screwdriver into position A shown in the figure and engage the connector.
- Install the harness from the hook.

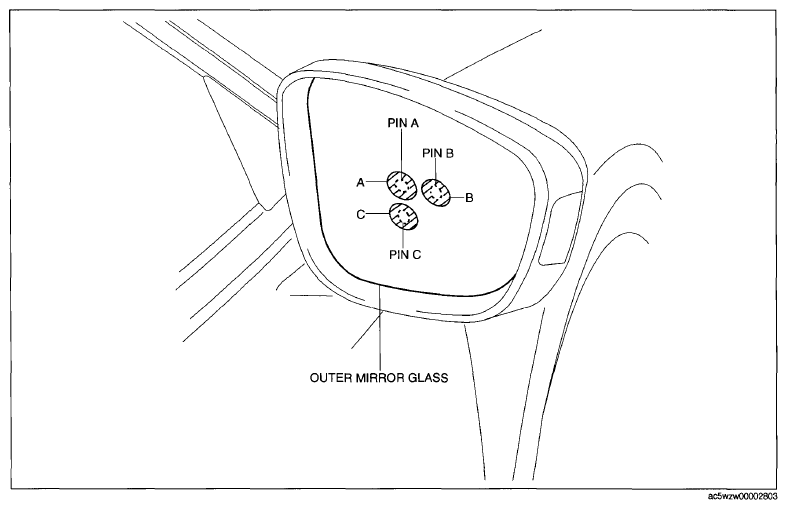

- Press part A on the outer mirror glass and install pin A.CAUTION:
- When installing the outer mirror glass, if excessive force is applied to the area other than cross-hatched area, the outer mirror glass could be damaged.
- Press part B on the outer mirror glass and install pin B.
- Press part C on the outer mirror glass and install pin C.
- Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
