Pcm Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Disconnect the PCM connector. (See PCM CONNECTOR CONNECTION NOTE .)
- Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)

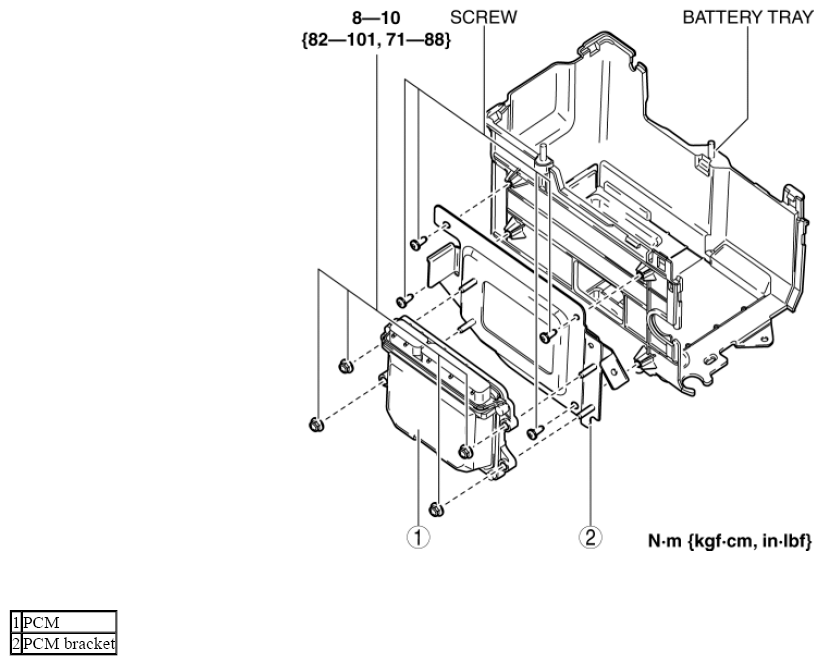

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- When replacing the PCM on the vehicles, perform the following:
- PCM configuration (See PCM CONFIGURATION .)
- Immobilizer system-related parts programming (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM] .)
