PCM Connector Connection Note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Do not touch the PCM connector terminal. The terminal is extremely thin and can be damaged by touching it.
  • If the PCM connector is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the PCM connector is inserted straight.

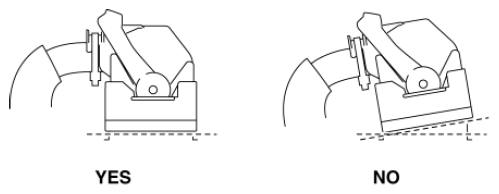

Fig 1: Checking PCM Connector
G08155490
  1. Set the PCM connector to the position shown in the figure.

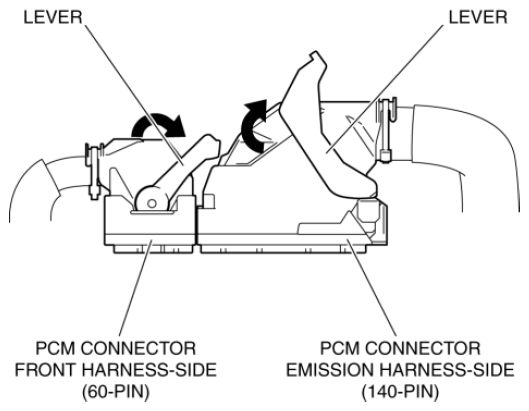

    Fig 2: Locking PCM Connector
    G08155491
  2. Align the PCM connector straight against the connection surface.

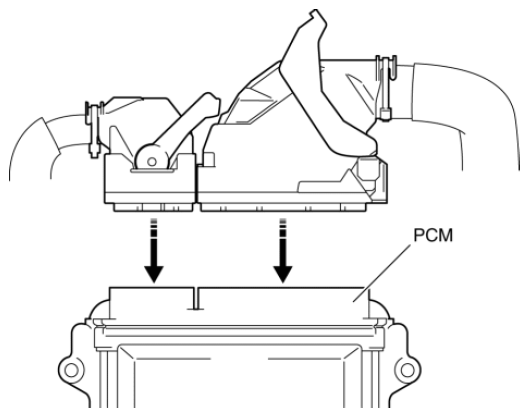

    Fig 3: Aligning PCM Connector Straight Against Connection Surface
    G08155492
  3. Insert the PCM connector straight and press it in until the lever moves up naturally. (Front harness-side connector)

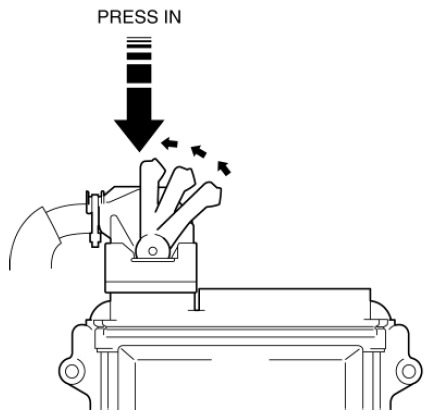

    Fig 4: Pressing PCM Connector Straight In
    G08155493
  4. Press the PCM connector lever until a click sound is heard.

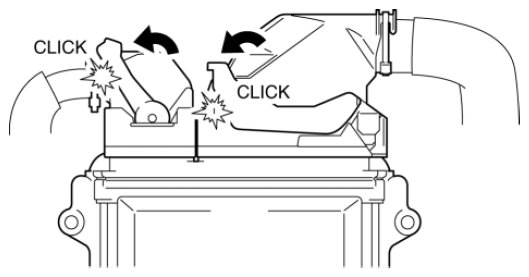

    Fig 5: Locking PCM Connector
    G08155494
