Climate Control Unit Installation [Manual Air Conditioner]: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wire clamp to A/C unit.
  2. Install E-ring to each wire. (See E-RING INSTALLATION NOTE .)
  3. Pass each wire through the following routes and connect to A/C unit.
  4. Connect the climate control unit connector, fan switch connector.
  5. Install the climate control unit.
  6. Connect each wire to A/C unit.
  7. Install the center panel module. (See CENTER PANEL REMOVAL/INSTALLATION .)
  8. Install the following parts:
    1. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    3. Side panel (passenger's side) (See SIDE PANEL REMOVAL/INSTALLATION .)
    4. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)

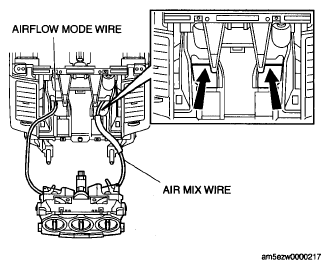

      Fig 1: Identifying Airflow Mode Wire And Air Mix Wire
      G05543416Courtesy of MAZDA MOTORS CORP.
    5. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    6. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    7. Selector lever component (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    8. Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    9. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    10. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    11. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  9. Connect the negative battery cable.
