E-ring Installation Note

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

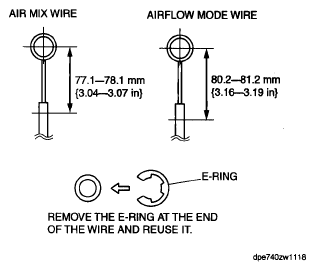

  1. Install the wires as shown in the figure.
    Fig 1: Identifying Airflow Mode Wire And Air Mix Wire Installation
    G05543417Courtesy of MAZDA MOTORS CORP.
