Airflow Mode Main Link Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Detach the hood release lever from the lower panel. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  3. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  4. Remove the front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  5. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
  6. Remove the shower duct (LH).
  7. Disconnect the airflow mode wire. (See CLIMATE CONTROL UNIT REMOVAL .)
  8. Remove the airflow mode rod (1).
  9. Remove the airflow mode main link.
  10. Install in the reverse order of removal.

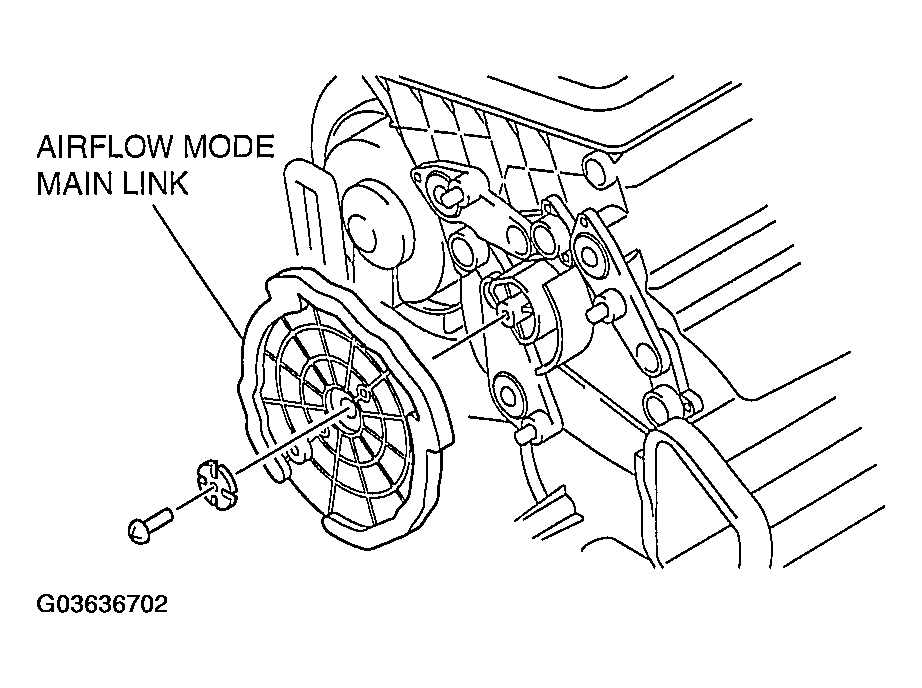

    11. Fig 1: Airflow Mode Main Link Removal/Installation
    G03636702Courtesy of MAZDA MOTORS CORP.
  11. Adjust the airflow mode wire. (See CLIMATE CONTROL UNIT WIRE ADJUSTMENT .)
