Climate Control Unit Removal

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Ashtray panel (See CONSOLE REMOVAL/INSTALLATION .)
    2. Detach the hood release lever from the lower panel. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    6. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    7. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    8. PJB and PJB bracket. (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION .)
  3. Detach the PJB wiring harness clamp from the dashboard.
  4. Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
  5. Remove the air mix wire and airflow mode wire from the A/C unit.

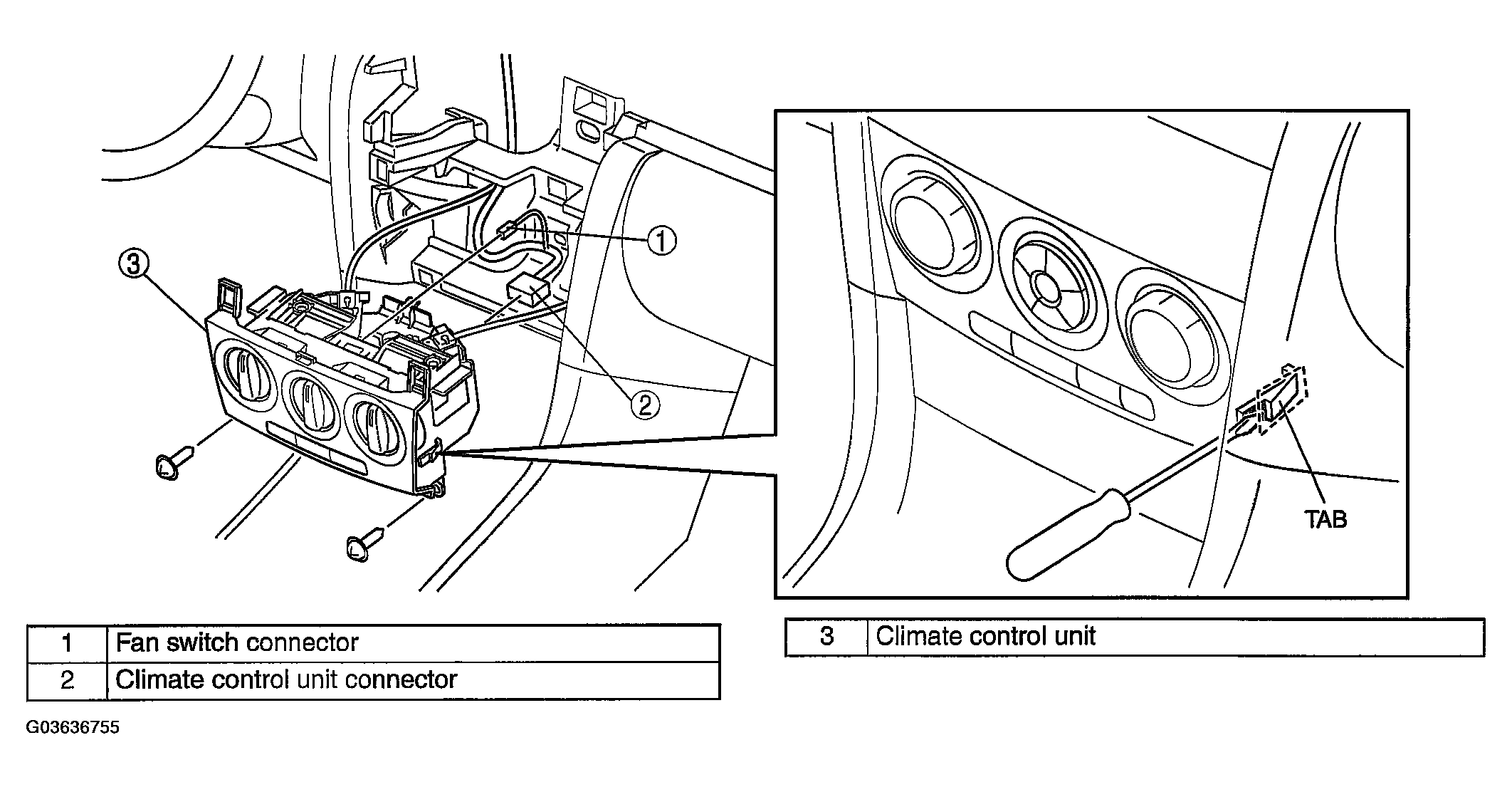

  6. Release the left and right tabs and remove in the order indicated in the figure.
    Fig 1: Climate Control Unit Removal
    G03636755Courtesy of MAZDA MOTORS CORP.
