Front Scuff Plate Removal/Installation

  1. Pull the front scuff plate upward, detach clips A, locator pins B and C from the body, and then remove the front scuff plate.
  2. Install in the reverse order of removal.

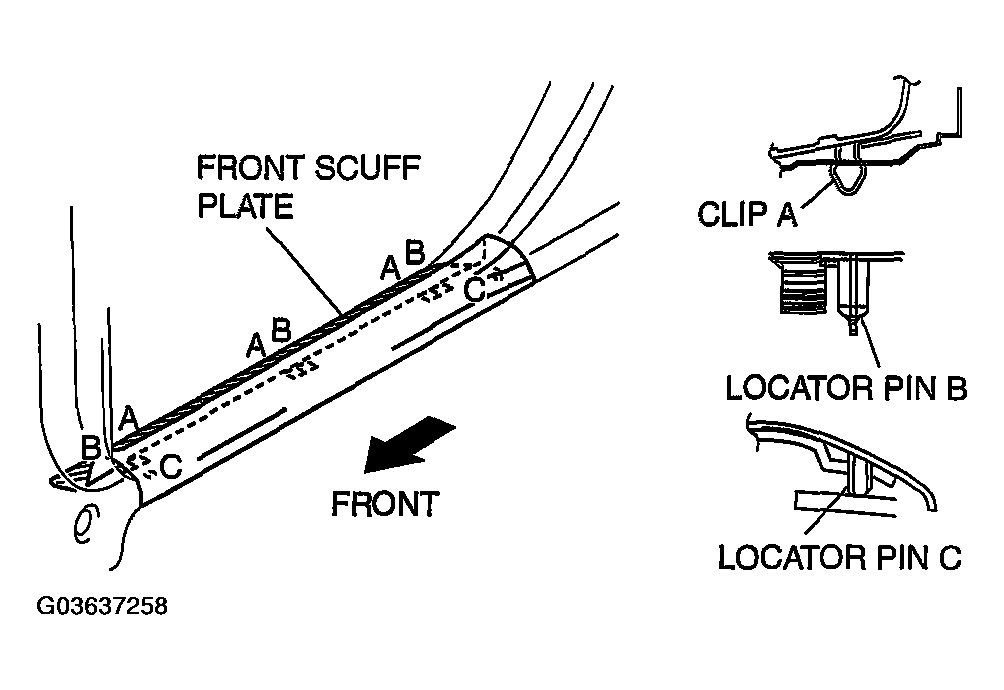

    Fig 1: Front Scuff Plate Removal/Installation
    G03637258Courtesy of MAZDA MOTORS CORP.
