Selector Lever Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the battery and battery tray.
  3. Remove the air cleaner component.

    (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3] .)

    (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [AJ] .)

  4. Remove the center console.
  5. Remove the dashboard completely.

    (See DASHBOARD REMOVAL/INSTALLATION .)

  6. Remove the SAS control module (air bag module). SAS CONTROL MODULE

  7. Remove the climate control unit.

    (See CLIMATE CONTROL UNIT REMOVAL .)

    (To install climate control unit, see CLIMATE CONTROL UNIT INSTALLATION .)

  8. Remove the rear heat duct.

    (See REAR HEAT DUCT REMOVAL/INSTALLATION .)

  9. Remove in the order shown in Fig 1.
  10. Install in the reverse order of removal.

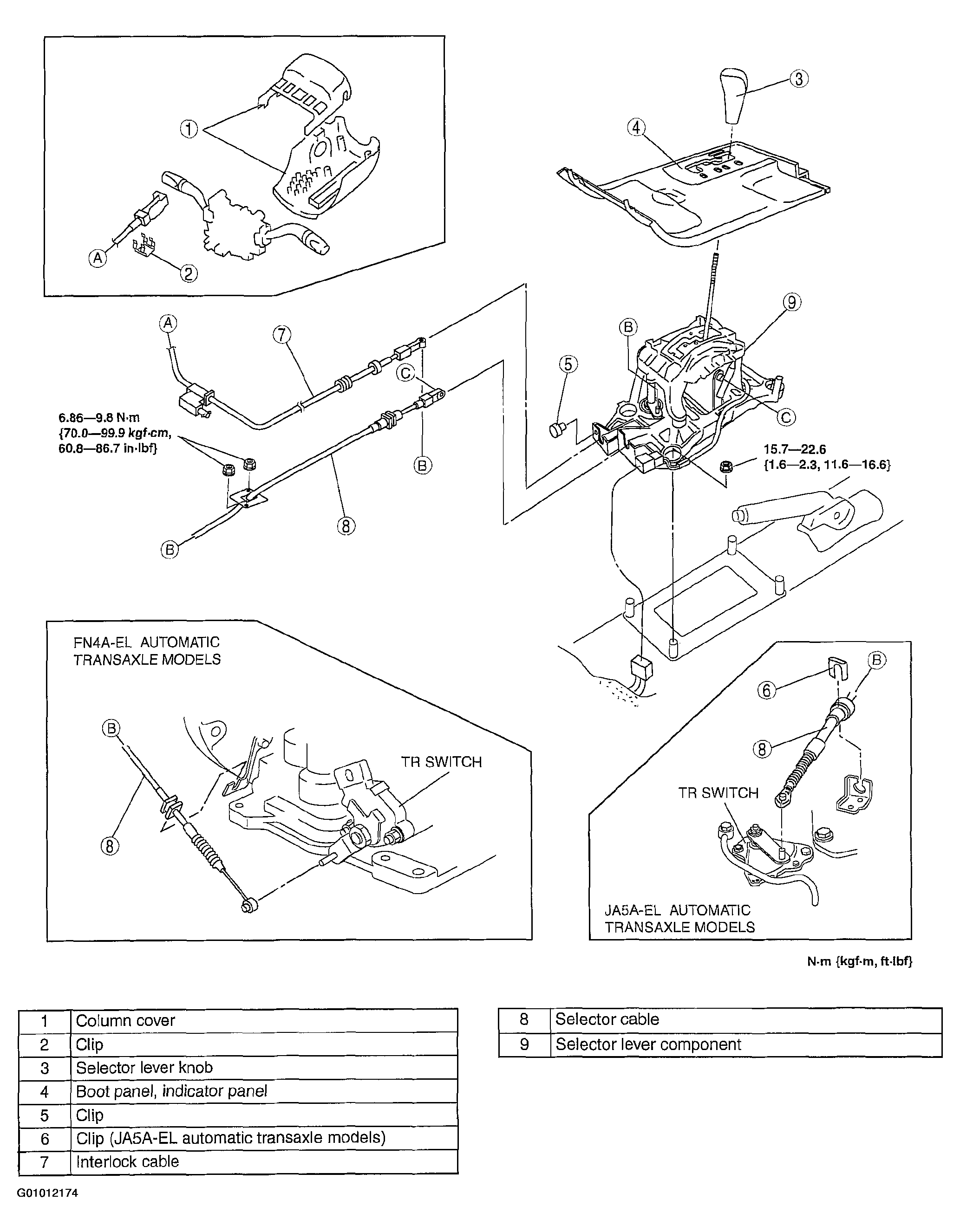

    Fig 1: Removing/Installing Selector Lever
    G01012174Courtesy of MAZDA MOTORS CORP.
