Climate Control Unit Installation

  1. Pass air mix wire through the following routes then connect to A/C unit. (Manual air conditioner)
  2. Connect the climate control unit connectors. (Manual air conditioner)
  3. Install the climate control unit to the center panel. (Full-auto air conditioner)
  4. Install the center panel.
  5. Adjust the climate control unit wire. (Manual air conditioner). See CLIMATE CONTROL UNIT WIRE ADJUSTMENT .
  6. Connect the negative battery cable.

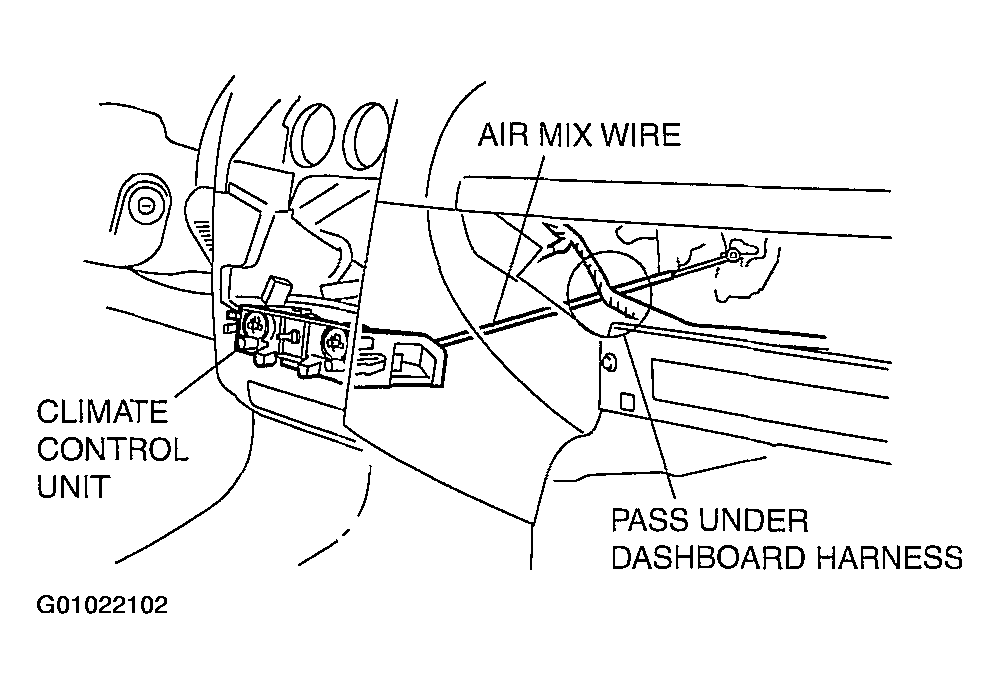

Fig 1: Locating Climate Control Unit & Air Mix Wire
G01022102Courtesy of MAZDA MOTORS CORP.
