Climate Control Unit Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the air mix wire from wire clamp and link. (Manual air conditioner)
  3. Remove the center panel.
  4. Remove the screws and climate control unit. (Full-auto air conditioner)
  5. Release the hook and pull the climate control unit toward you. (Manual air conditioner)
  6. Disconnect the climate control unit connectors and remove the climate control unit. (Manual air conditioner)

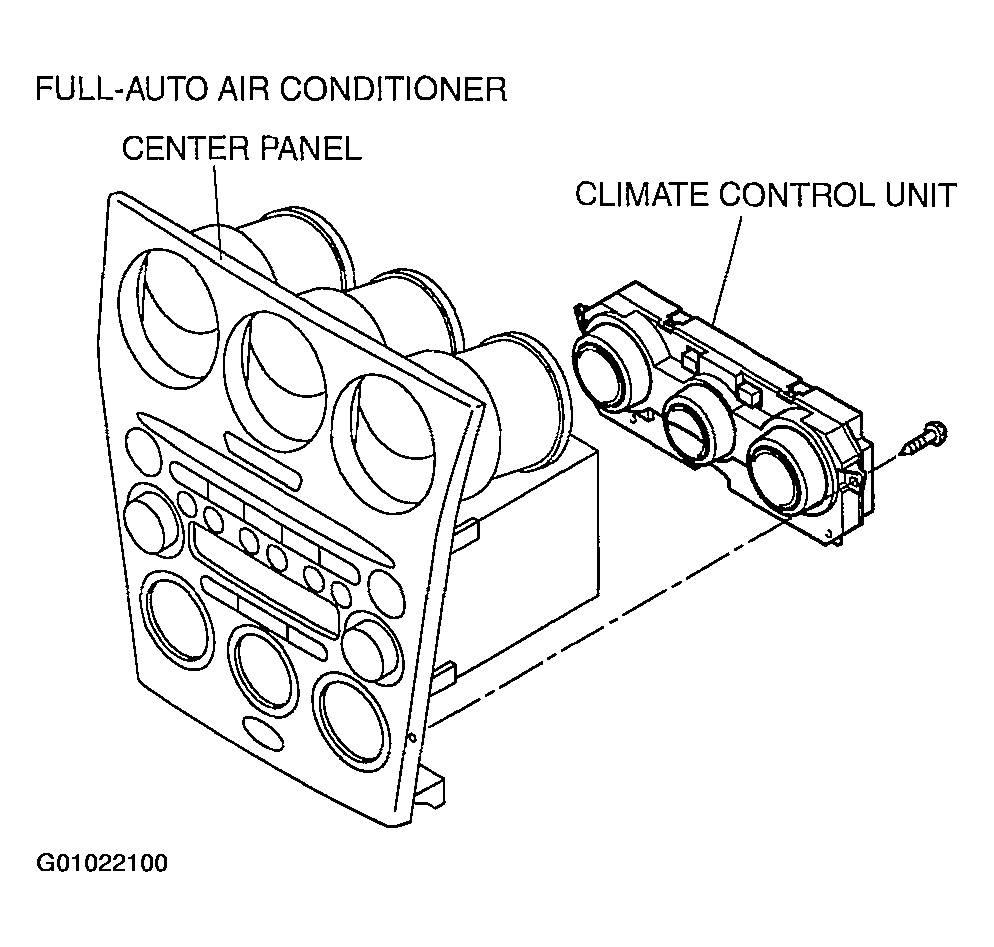

    Fig 1: Removing Climate Control Unit - Automatic Air Conditioner
    G01022100Courtesy of MAZDA MOTORS CORP.

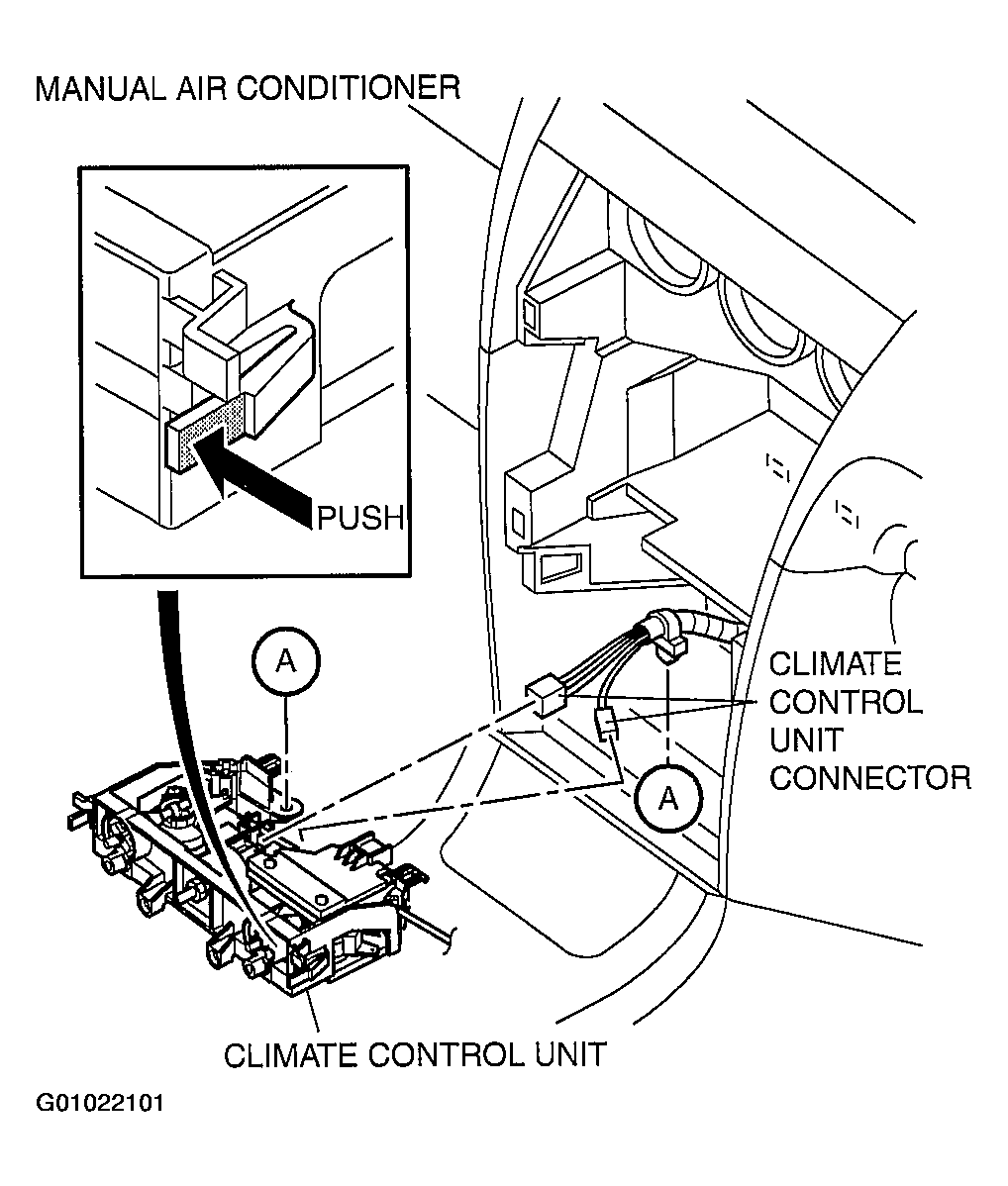

    Fig 2: Removing Climate Control Unit - Manual Air Conditioner
    G01022101Courtesy of MAZDA MOTORS CORP.
