Installation [04/2013 - ]: Procedure

  1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

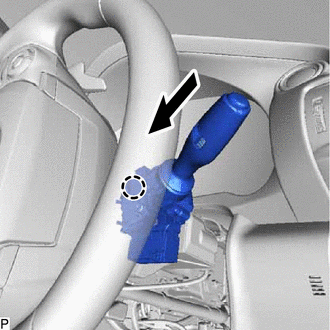

    1. Engage the claw to install the windshield wiper switch assembly as shown in the illustration.
      GTY464599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  2. INSTALL TILT AND TELESCOPIC SWITCH (for Power Tilt and Power Telescopic Steering Column)

    Refer to PROCEDURE - Step 1 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 1 [10/2016 - ]

  3. INSTALL STEERING COLUMN COVER (for Manual Tilt and Manual Telescopic Steering Column)
    NOTE:

    If the steering column cover (lower) is installed in the incorrect order, the parts may break.

    1. Engage the 2 claws to install the steering column cover (upper).
    2. Engage the 4 clips and 2 claws to connect the instrument cluster finish panel assembly to the steering column cover (upper).
    3. Engage the 3 claws.

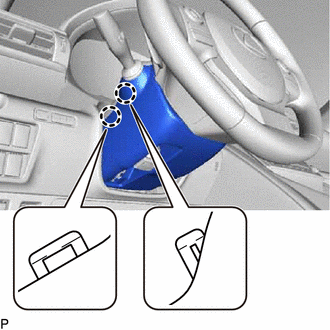

    4. Engage the 2 claws.
      GTY470375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

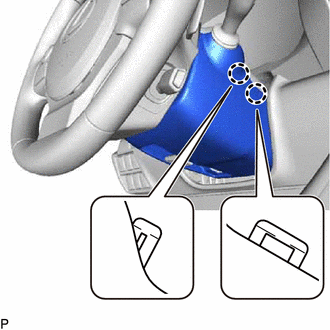

    5. Engage the 2 claws.
      GTY464620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Turn the steering wheel assembly to the left and install the screw.
    7. Turn the steering wheel assembly to the right and install the steering column cover (lower) with the screw.
  4. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic Steering Column)
    1. Engage the 2 claws to install the steering column cover (upper).
    2. Engage the 4 clips and 2 claws to connect the instrument cluster finish panel assembly to the steering column cover (upper).

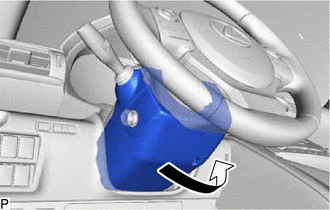

    3. Temporarily install the steering column cover (lower) as shown in the illustration.
      GTY464621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

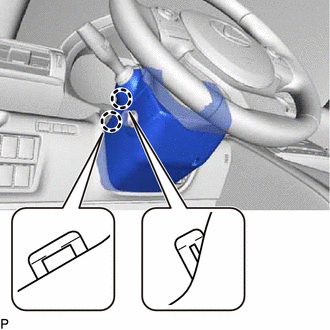

    4. Engage the 2 claws.
      GTY464622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

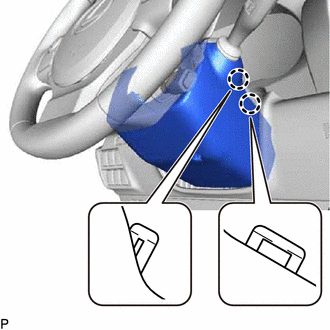

    5. Engage the 2 claws.
      GTY468143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the screw.
    7. Turn the steering wheel assembly to the left and install the screw.
    8. Turn the steering wheel assembly to the right and install the steering column cover (lower) with the screw.
  5. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)

    Refer to PROCEDURE - Step 19 [04/2013 - 06/2014] , or refer to PROCEDURE - Step 19 [06/2014 - 08/2015] , or refer to PROCEDURE - Step 19 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 16 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 16 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 16 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 17 [11/2021 - ]
