Navigation Antenna: Installation

  1. INSTALL NAVIGATION ANTENNA
    1. Install the navigation antenna with the 2 screws.
    2. Engage the 2 clamps.
  2. INSTALL DEFROSTER NOZZLE ASSEMBLY (See  REASSEMBLY  )
  3. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT (See  REASSEMBLY  )
  4. INSTALL NO. 3 HEATER TO REGISTER DUCT (See  REASSEMBLY  )
  5. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (See  INSTALLATION  )
  6. CONNECT PASSENGER AIRBAG CONNECTOR
  7. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission) (See  INSTALLATION  )
  8. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Transmission) (See  INSTALLATION  )
  9. INSTALL NO. 2 CONSOLE BOX DUCT (for Automatic Transmission) (See  INSTALLATION  )
  10. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (See  INSTALLATION  )
  11. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  12. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  13. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  14. INSTALL FRONT PILLAR GARNISH LH (See  INSTALLATION  )
  15. INSTALL FRONT PILLAR GARNISH RH
  16. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See  INSTALLATION  )
  17. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  18. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  19. INSTALL SIDE INSTRUMENT PANEL RH (See  INSTALLATION  )
  20. INSTALL FRONT DOOR OPENING TRIM COVER RH (See  INSTALLATION  )
  21. INSTALL FRONT DOOR SCUFF PLATE RH
  22. INSTALL COMBINATION METER ASSEMBLY (See  INSTALLATION  )

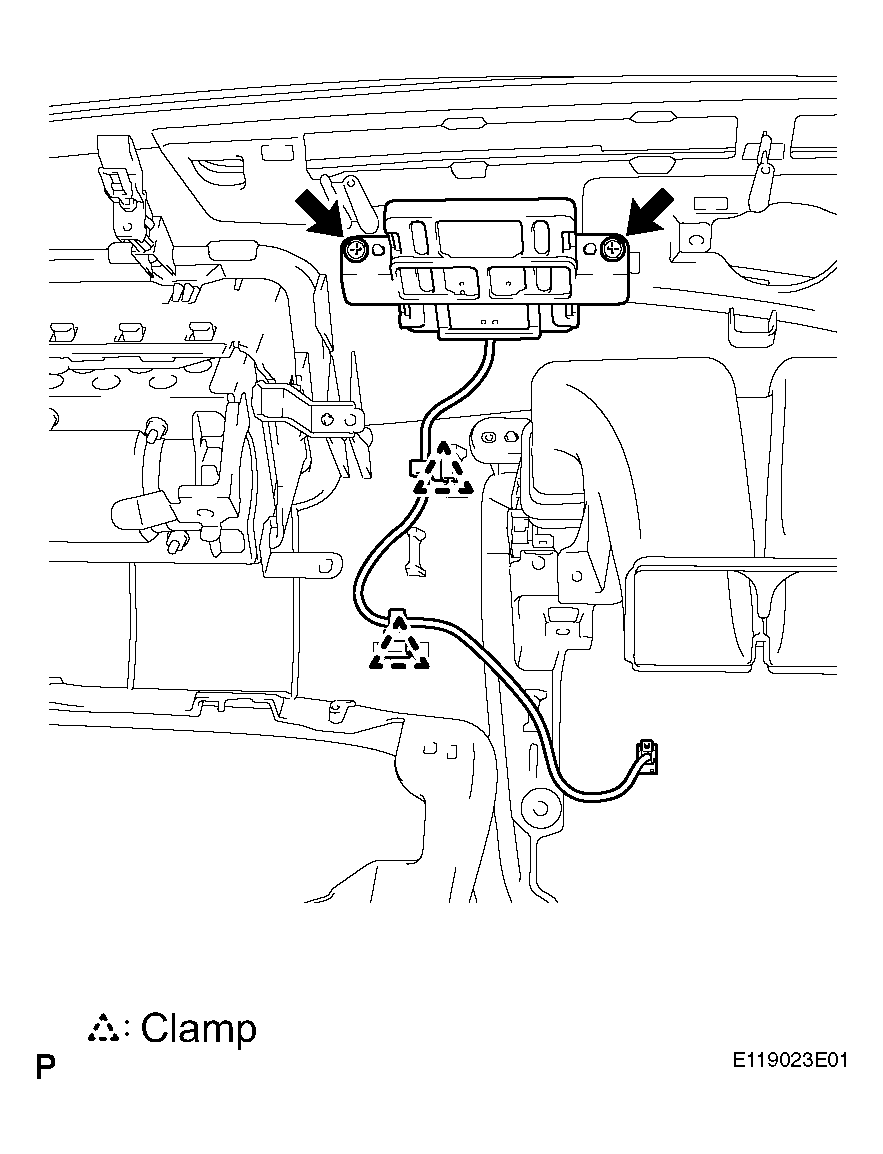

    Fig 1: Identifying Navigation Antenna With Screws
    G04050551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  24. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  25. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  26. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  27. INSTALL SIDE INSTRUMENT PANEL LH (See  INSTALLATION  )
  28. INSTALL FRONT DOOR OPENING TRIM COVER LH (See  INSTALLATION  )
  29. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  30. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (See  INSTALLATION  )
  31. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic) (See  INSTALLATION  )
  32. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See  INSTALLATION  )
  33. ADJUST SPIRAL CABLE SUB-ASSEMBLY (See  INSTALLATION  )
  34. INSTALL STEERING WHEEL ASSEMBLY (See  INSTALLATION  )
  35. INSTALL STEERING PAD (See  INSTALLATION  )
  36. INSTALL LOWER NO. 3 STEERING WHEEL COVER (See  INSTALLATION  )
  37. INSTALL LOWER NO. 2 STEERING WHEEL COVER (See  INSTALLATION  )
  38. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (See  INSTALLATION  )
  39. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  INSTALLATION  )
  40. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  41. INSTALL CONSOLE BOX (See  INSTALLATION  )
  42. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See  INSTALLATION  )
  43. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY (See  INSTALLATION  )
  44. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  INSTALLATION  )
  45. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  INSTALLATION  )
  46. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  INSTALLATION  )
  47. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  INSTALLATION  )
  48. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  INSTALLATION  )
  49. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  50. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  51. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  52. PERFORM INITIALIZATION
    NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).
  53. INSPECT STEERING PAD (See  INSTALLATION  )
  54. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )
