Radio Receiver: Installation

  1. INSTALL RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Install the radio receiver assembly as shown in the illustration.
    Fig 1: Identifying Radio Receiver Assembly
    G04050192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 RADIO BRACKET (w/o Navigation System)
    1. Install the radio No. 2 bracket with the 6 bolts.
    Fig 2: Identifying Radio No. 2 Bracket With Bolts
    G04050193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 RADIO BRACKET (w/o Navigation System)
    1. Install the radio No. 1 bracket with the 6 bolts.
  4. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Connect each connector.
      Fig 3: Identifying Radio No. 1 Bracket With Bolts
      G04050194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the integration control panel w/ radio receiver assembly with the 4 bolts.

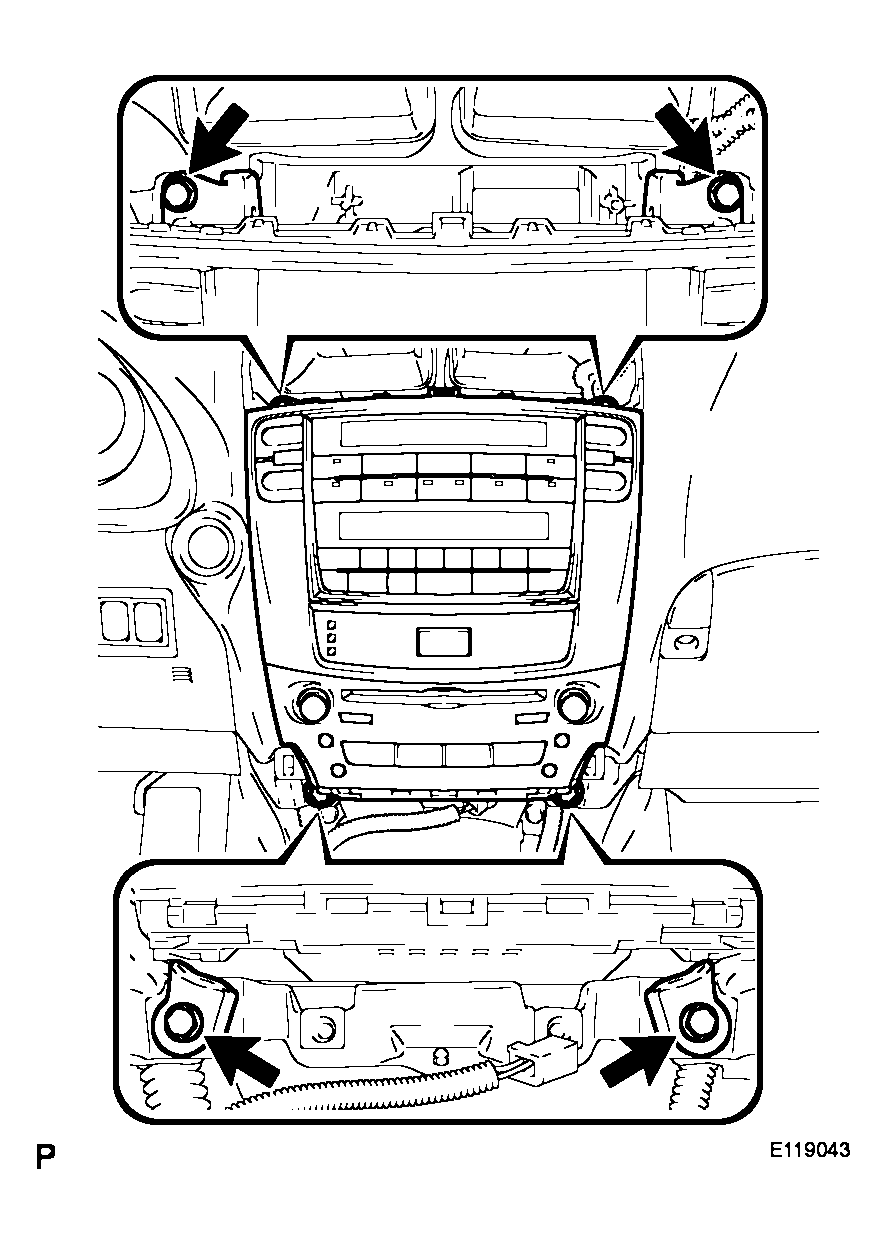

    Fig 4: Identifying Integration Control Panel W/ Radio Receiver Assembly And Bolts
    G04050195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Install the radio receiver assembly as shown in the illustration.
    Fig 5: Identifying Radio Receiver Assembly
    G04050196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 RADIO BRACKET (w/ Navigation System)
    1. Install the radio No. 2 bracket with the 7 bolts.
    Fig 6: Identifying Radio No. 2 Bracket With Bolts
    G04050197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 RADIO BRACKET (w/ Navigation System)
    1. Install the radio No. 1 bracket with the 7 bolts.
      Fig 7: Identifying Radio No. 1 Bracket With Bolts
      G04050198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the connector clamp.
  8. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Connect each connector.
      Fig 8: Identifying Connector Clamp
      G04050199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the multi-display w/ radio receiver assembly with the 4 bolts.
  9. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  INSTALLATION  )
  10. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  11. INSTALL CONSOLE BOX (See  INSTALLATION  )
  12. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See  INSTALLATION  )
  13. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY (See  INSTALLATION  )
  14. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  INSTALLATION  )
  15. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  INSTALLATION  )
  16. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  INSTALLATION  )

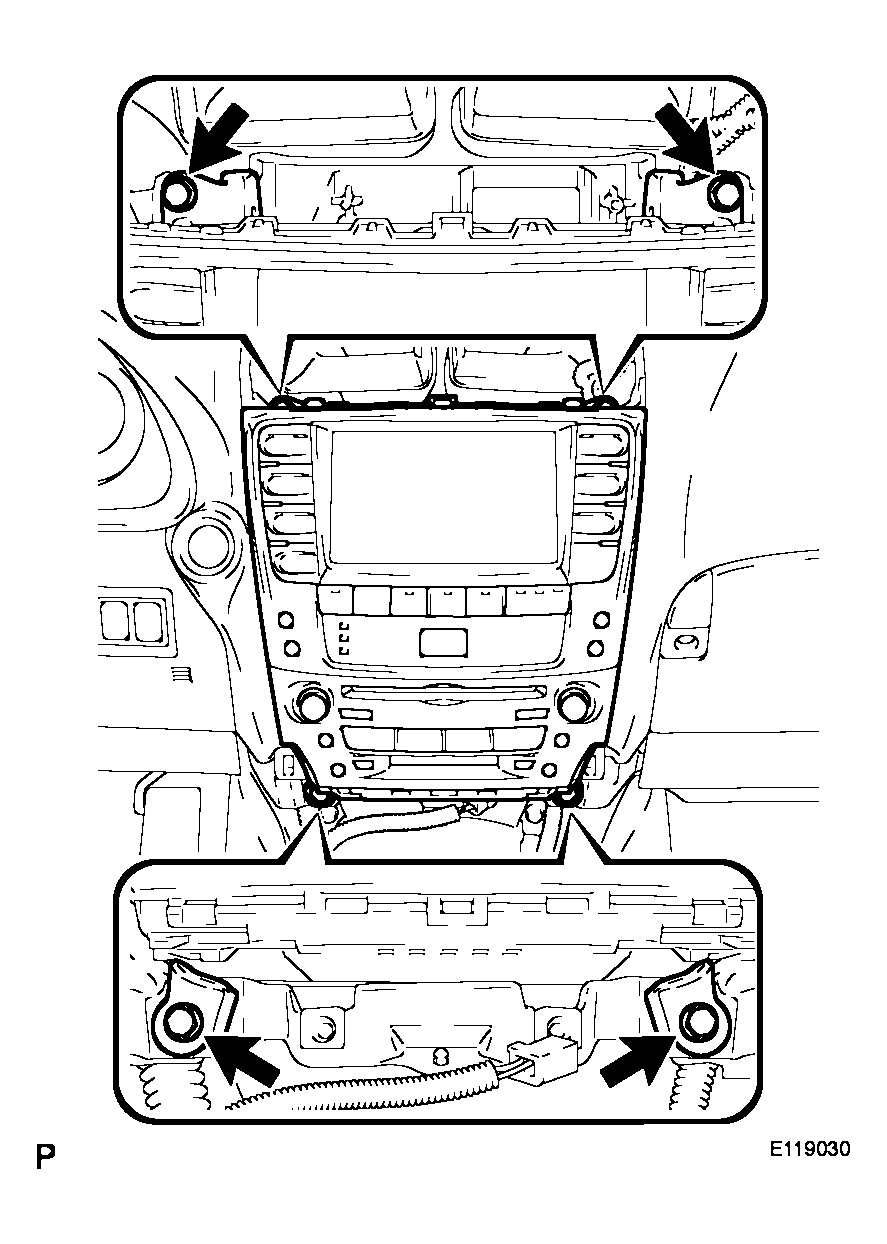

    Fig 9: Identifying Multi-Display W/ Radio Receiver Assembly And Bolts
    G04050200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  INSTALLATION  )
  18. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  INSTALLATION  )
  19. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  20. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  21. ADJUST CLOCK
