Instrument Panel Safety Pad: Installation

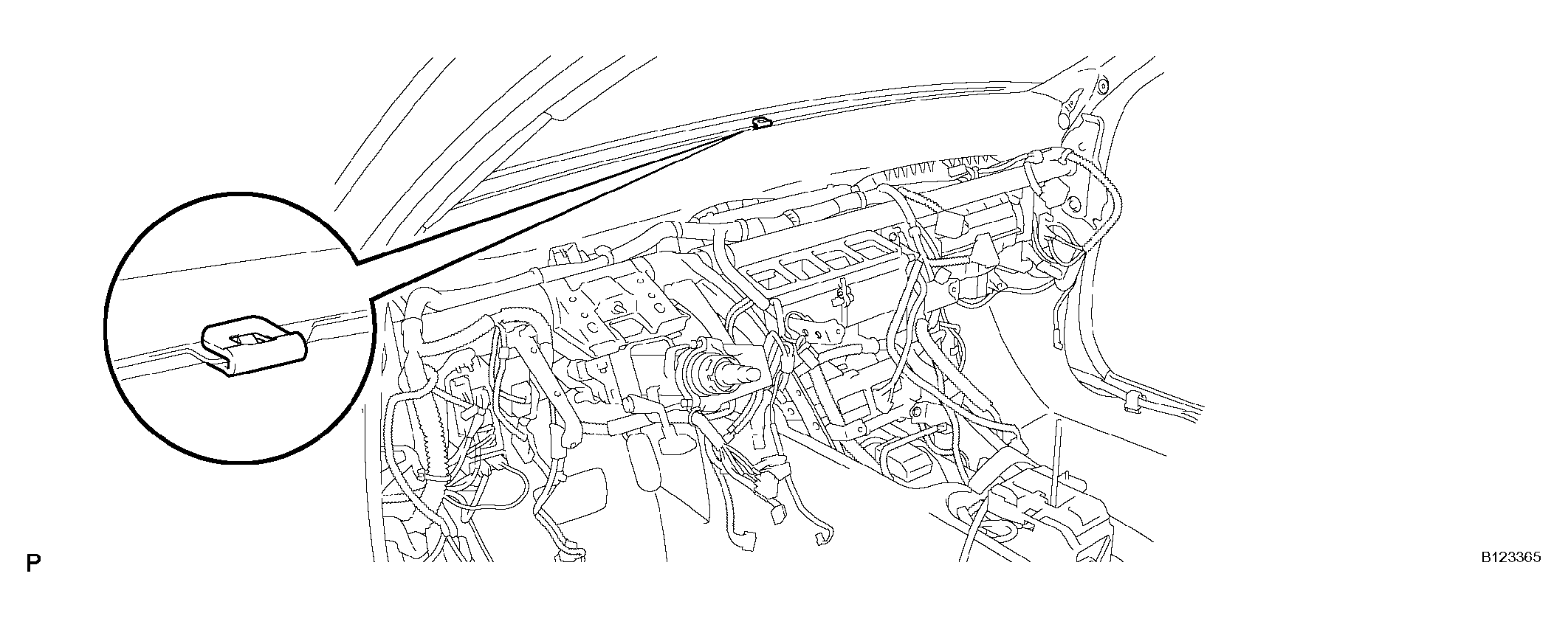

  1. INSTALL INSTRUMENT PANEL STAY
    1. Engage the claw and install the instrument panel stay.
    Fig 1: Installing Instrument Panel Stay
    G04050956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

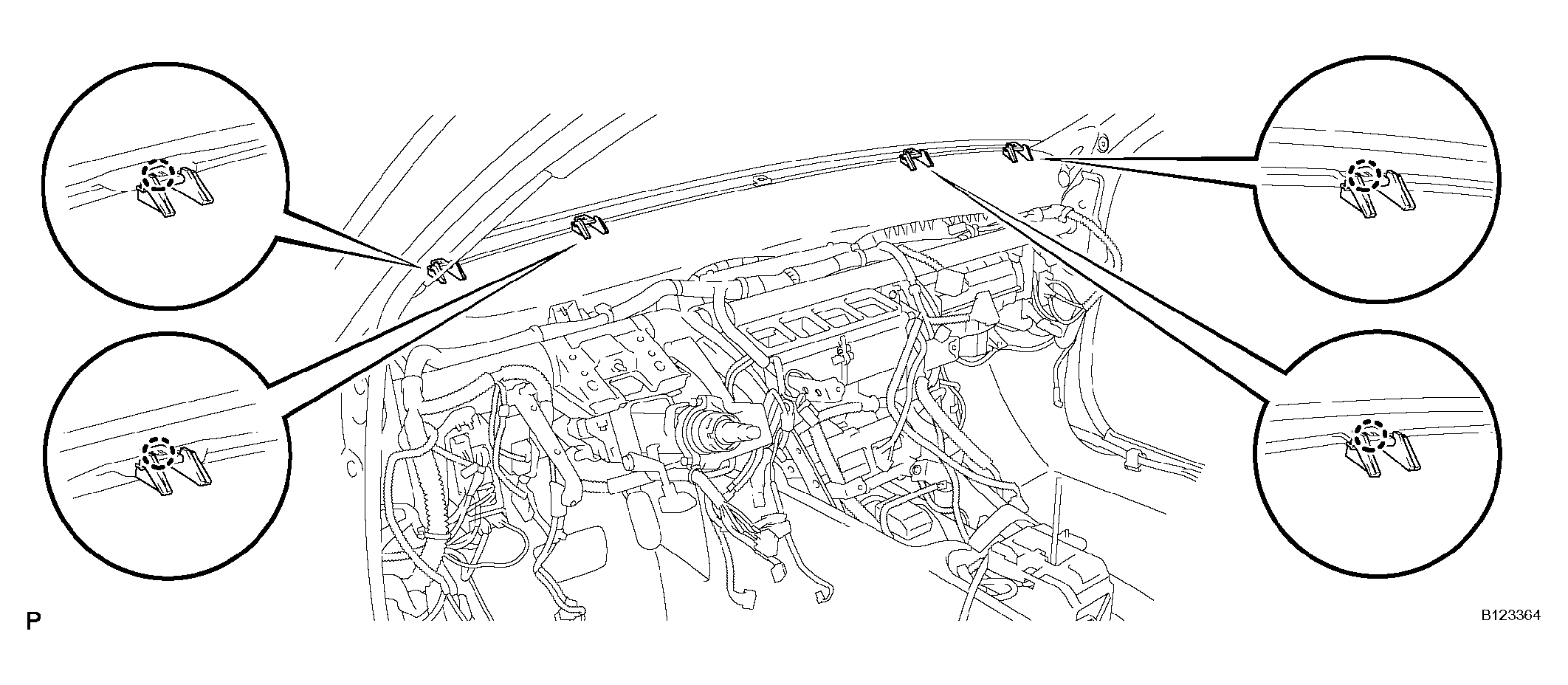

  2. INSTALL INSTRUMENT PANEL CLIP
    1. Engage the claw and install the 4 instrument panel clips.
    Fig 2: Installing Instrument Panel Clips
    G04050957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY
    1. Engage the 5 claws.
      NOTE: Do not allow the wire harness to get caught in the claws.
    2. Engage the 2 clamps.
    3. Install the 2 passenger airbag bolts < A >.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    4. Install the 6 bolts < D > and nut < H >.

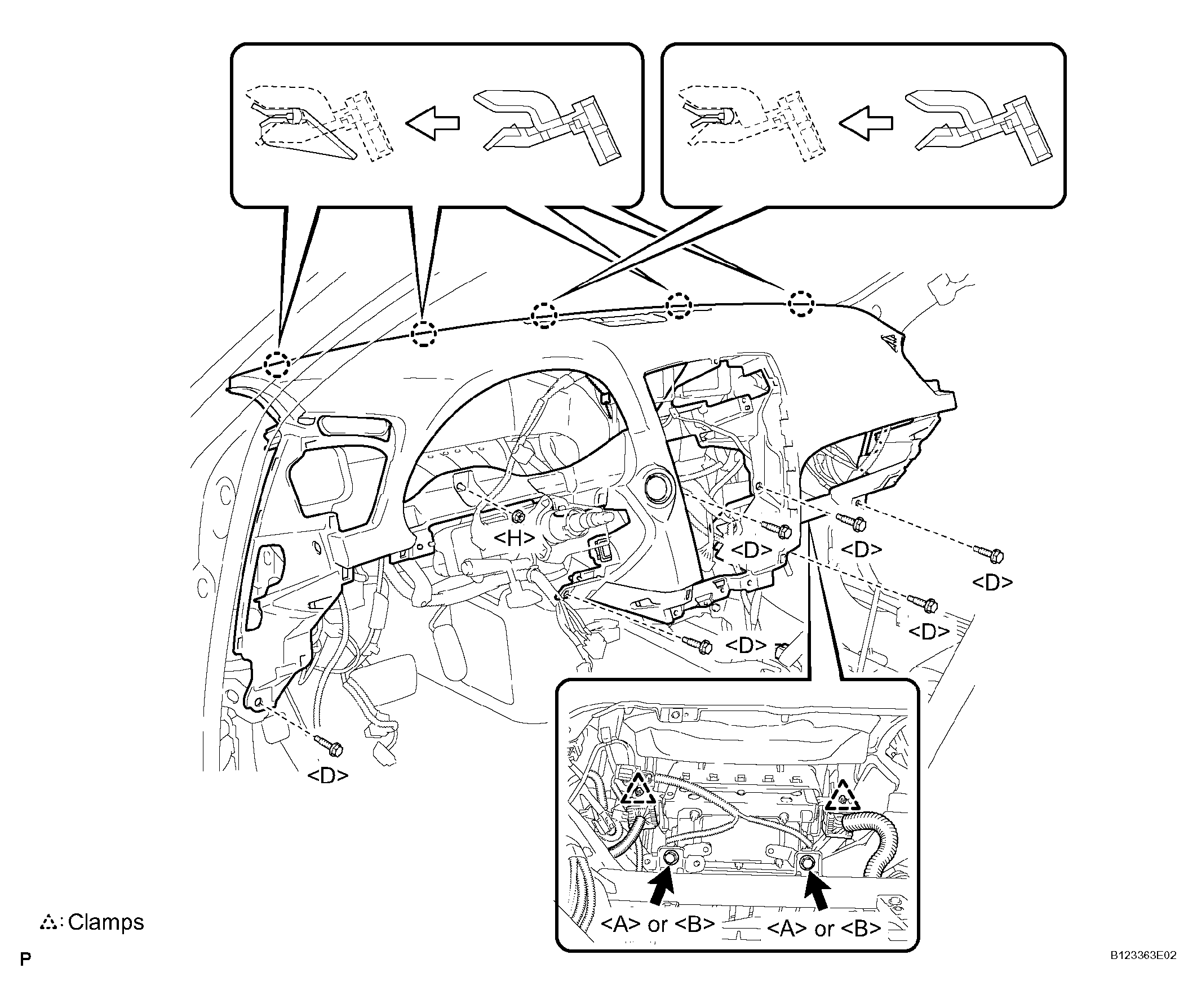

      Fig 3: Installing Passenger Airbag Bolts
      G04050958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

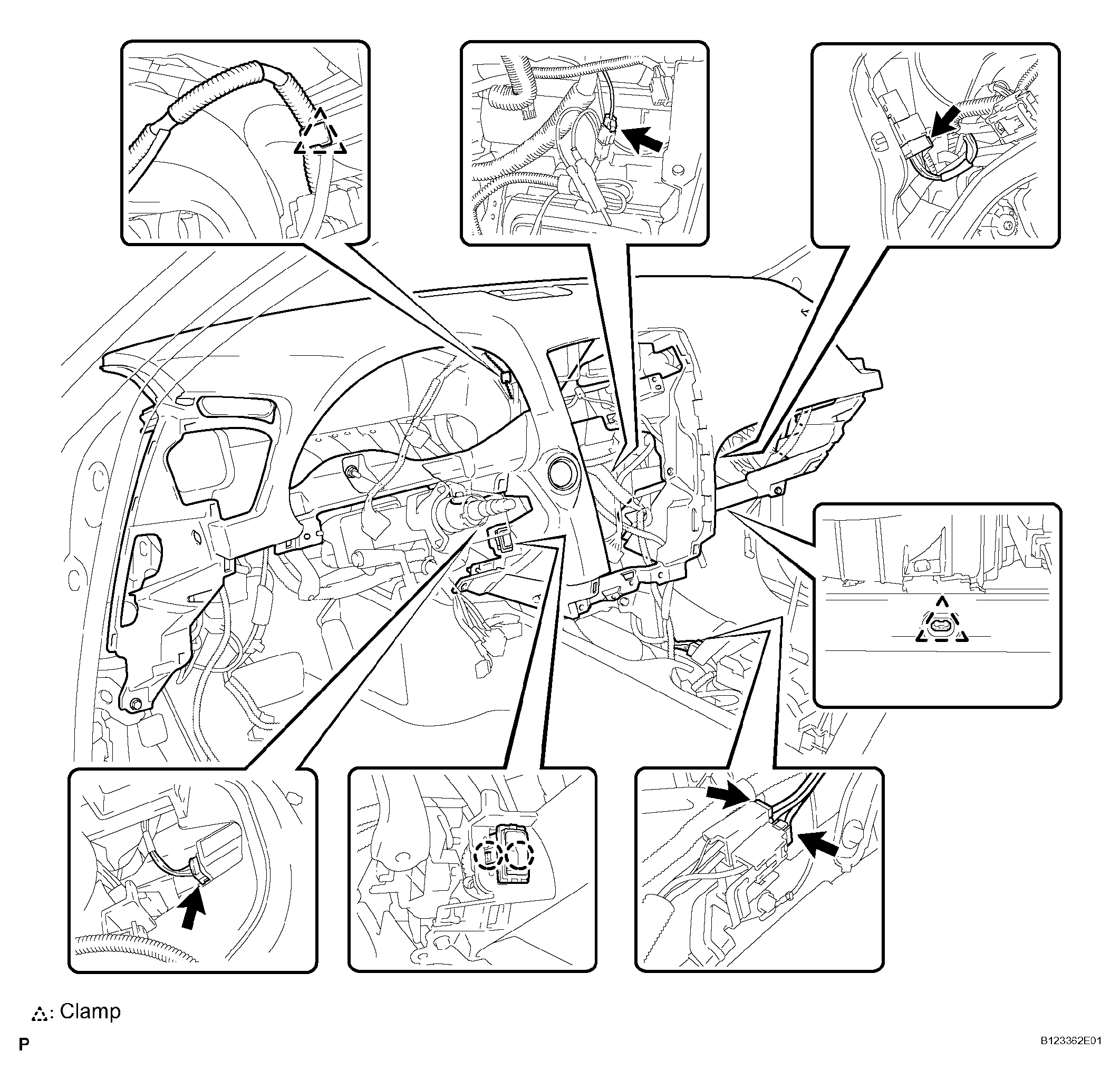

    5. Engage the 2 claws and install the cooler thermistor.
    6. Engage the clamps.
    7. Connect the connectors and install the instrument panel safety pad assembly.
    Fig 4: Installing Instrument Panel Safety Pad Assembly
    G04050959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT PASSENGER AIRBAG CONNECTOR (See  INSTALLATION  )

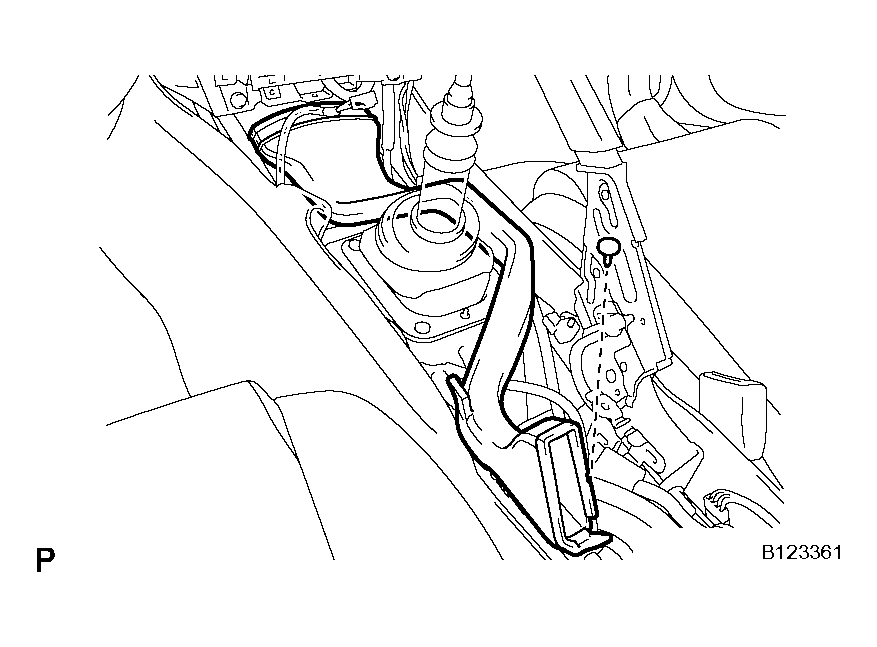

  5. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission)
    1. Install the No. 2 console box duct with the clip.
    Fig 5: Installing No. 2 Console Box Duct With Clip
    G04050960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)
    1. Install the No. 1 console box duct with the clip.

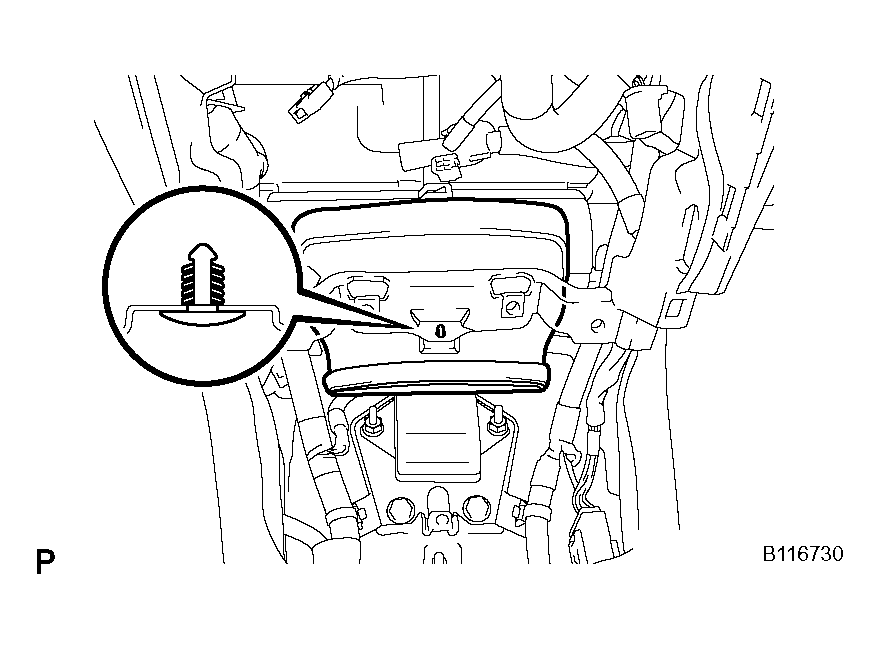

    Fig 6: Installing No. 1 Console Box Duct With Clip
    G04050961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)
    1. Install the No. 2 console box duct with the 2 clips.

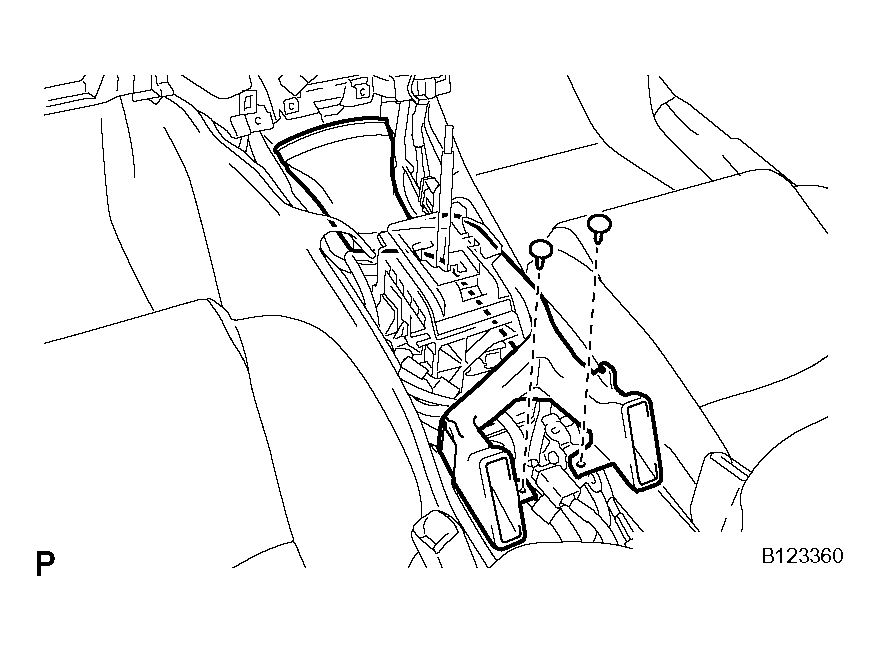

    Fig 7: Installing No. 2 Console Box Duct With Clips
    G04050962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker) (See  INSTALLATION  )

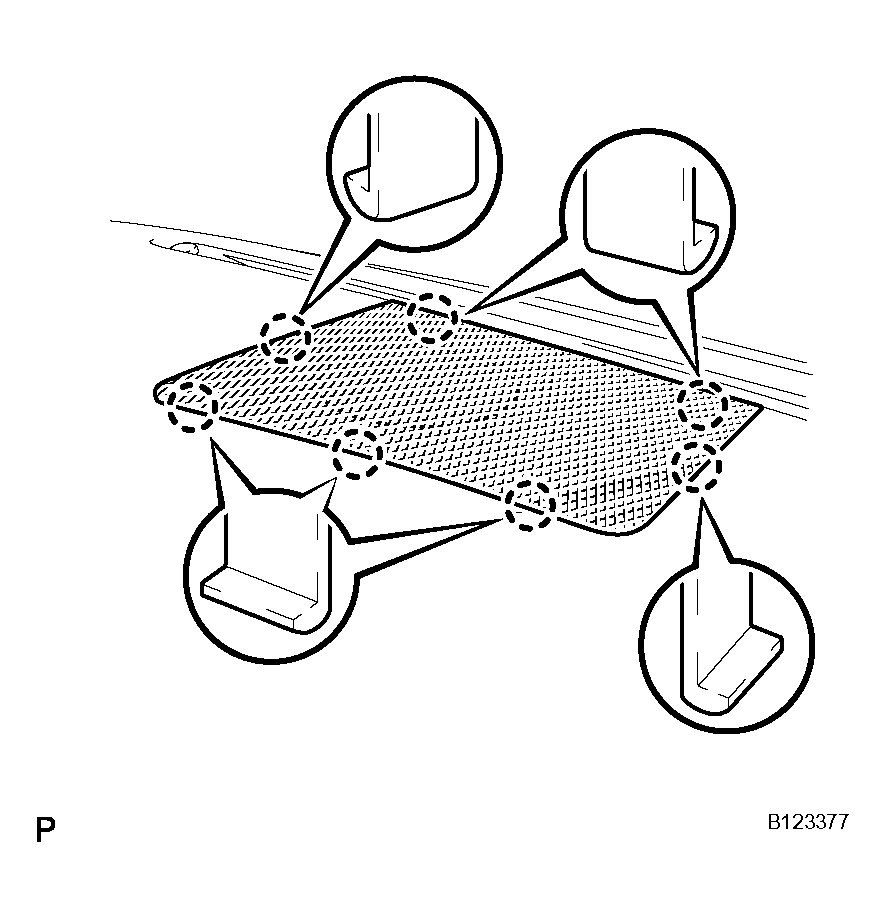

  9. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 7 claws and install the No. 3 instrument panel speaker panel sub-assembly.
    Fig 8: Installing No. 3 Instrument Panel Speaker Panel Sub-Assembly
    G04050963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

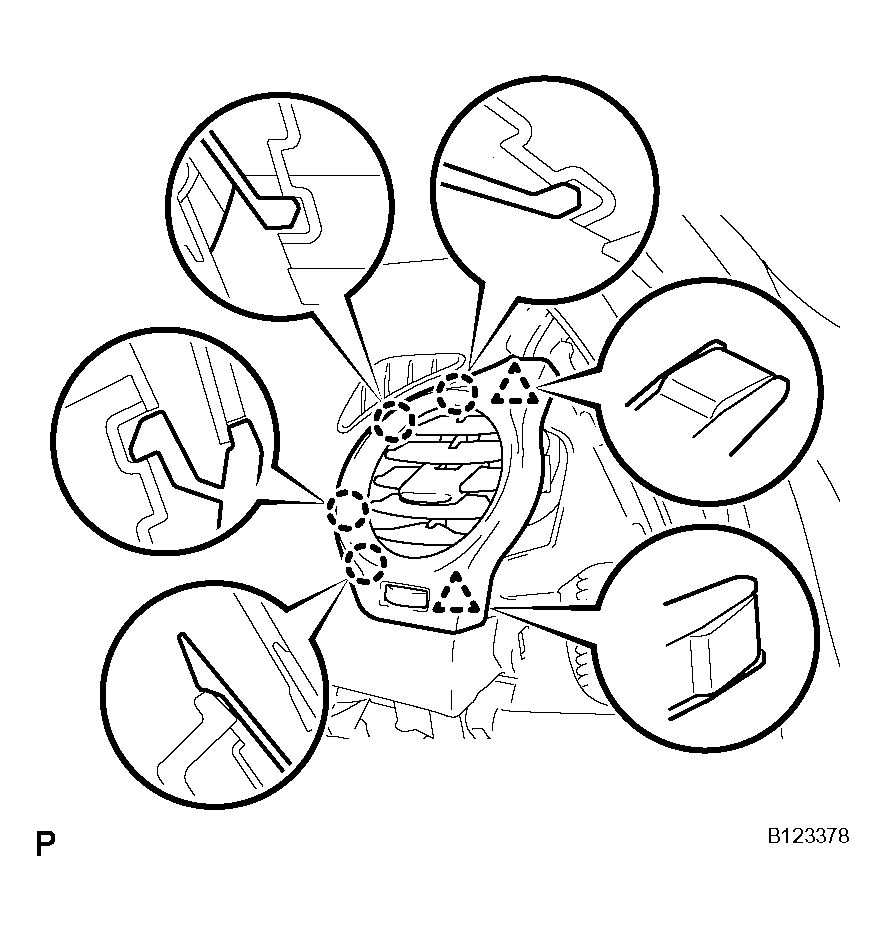

  10. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector.
    2. Engage the 4 claws and 2 clips, and install the No. 2 instrument panel register assembly.
    Fig 9: Installing No. 2 Instrument Panel Register Assembly
    G04050964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector.
    2. Engage the 7 claws and 2 clips, and install the No. 1 instrument panel register assembly.

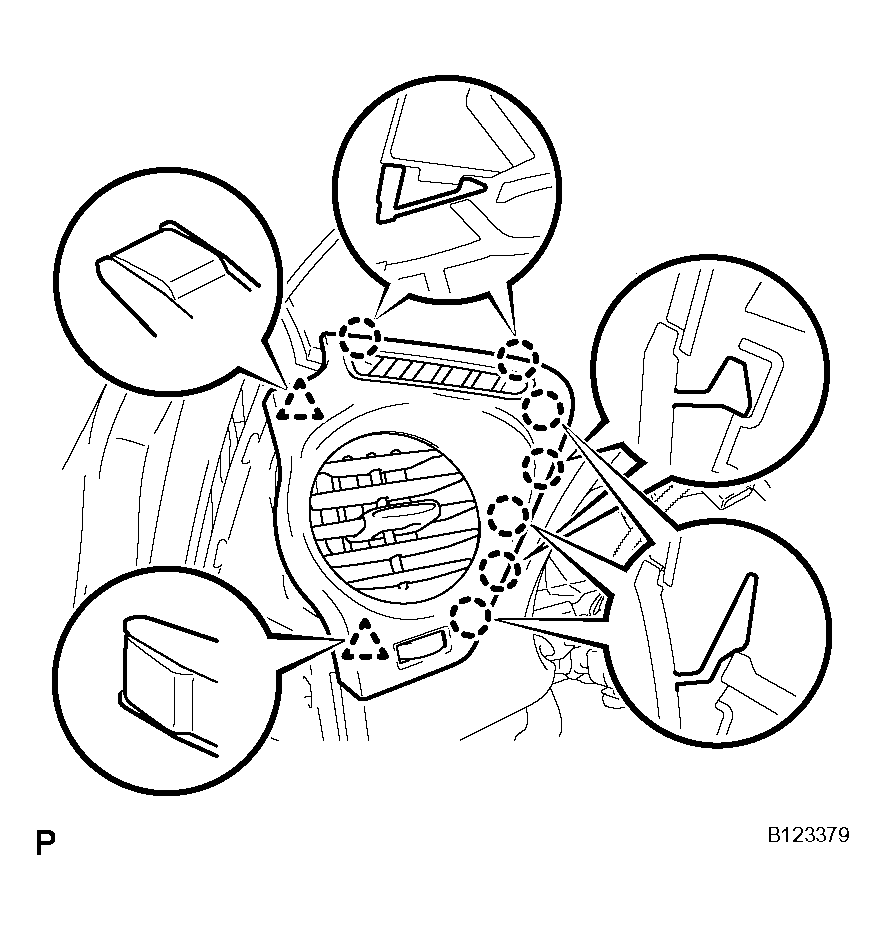

    Fig 10: Installing No. 1 Instrument Panel Register Assembly
    G04050965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL FRONT PILLAR GARNISH LH (See Step 84 in  INSTALLATION  )
  13. INSTALL FRONT PILLAR GARNISH RH
  14. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Connect the connectors.
    2. Engage the 2 claws.
    3. Install the glove compartment door assembly with the 5 screws.

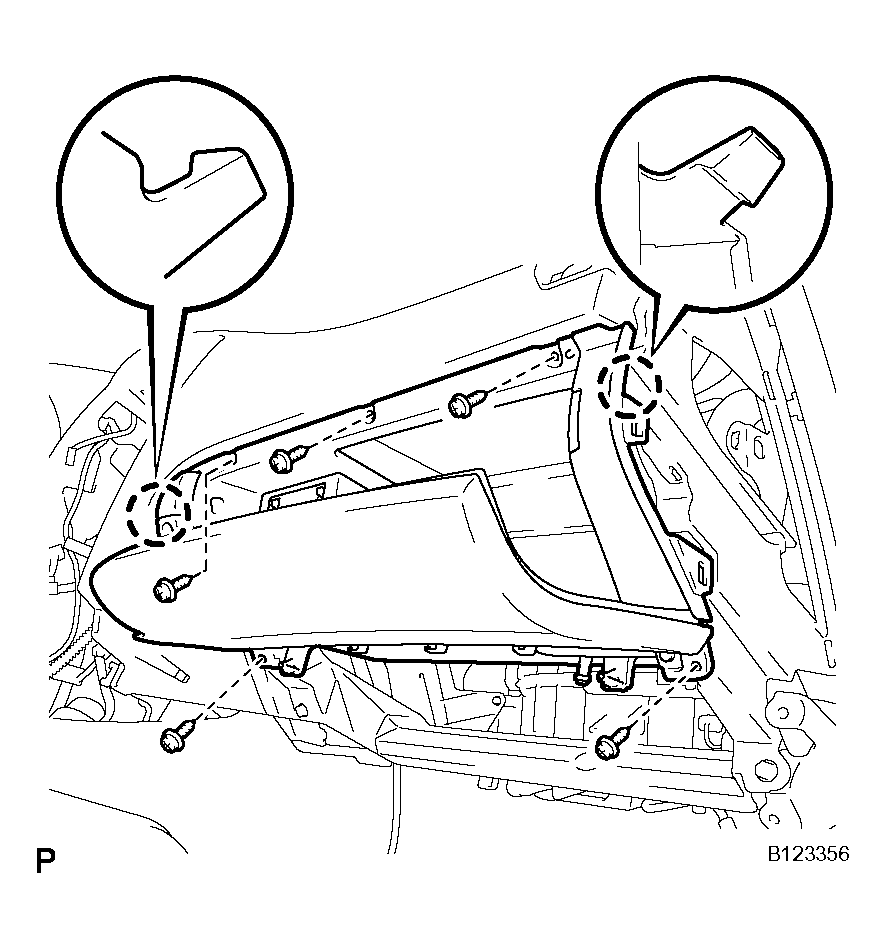

    Fig 11: Installing Glove Compartment Door Assembly With Screws
    G04050966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )

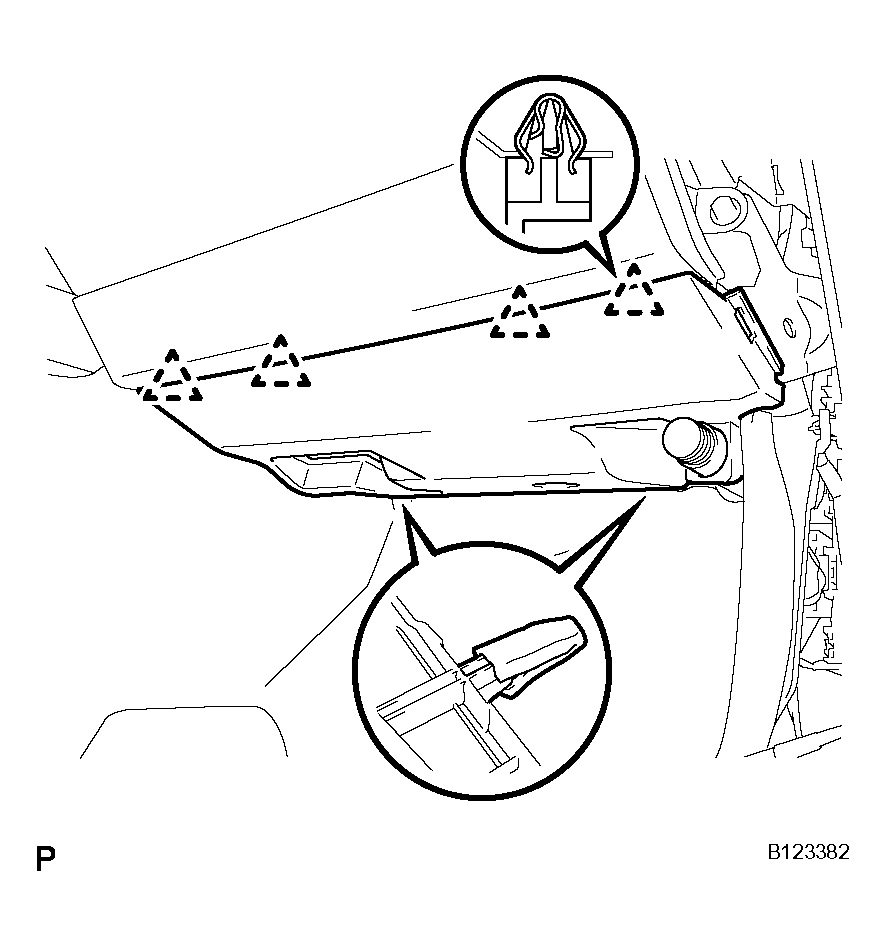

  16. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Engage the 4 clips and install the No. 2 instrument panel under cover sub-assembly.
    Fig 12: Installing Instrument Panel Under Cover Sub-Assembly
    G04050967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

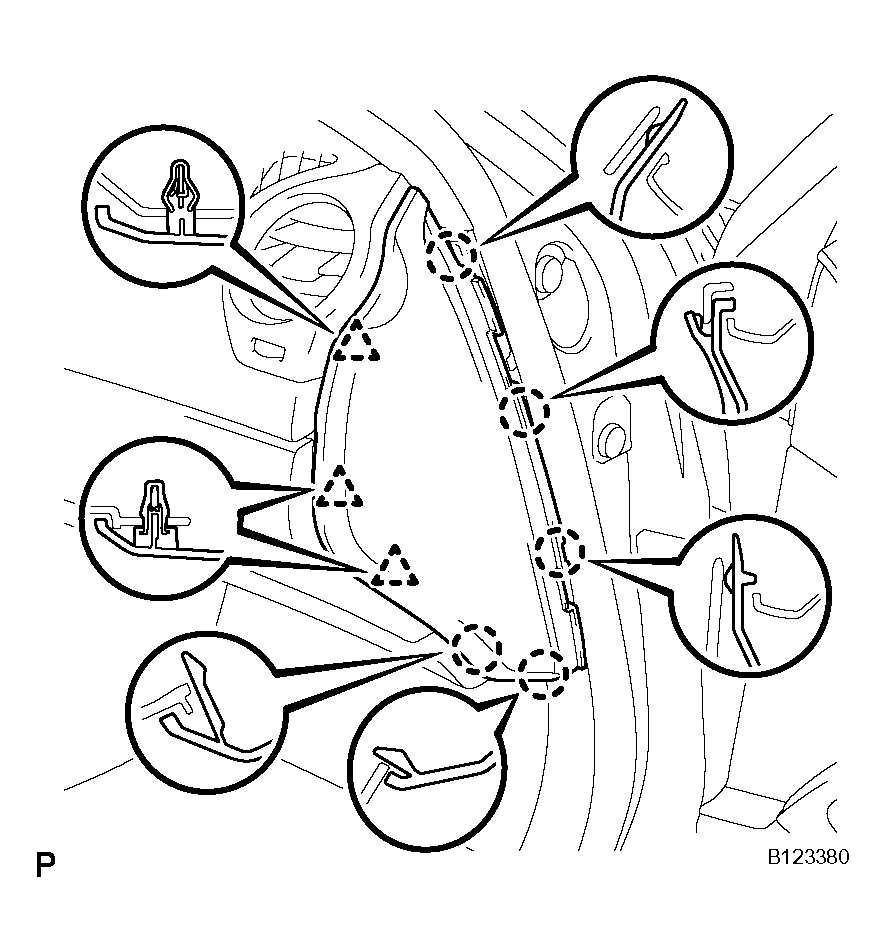

  17. INSTALL SIDE INSTRUMENT PANEL RH
    1. Engage the 5 claws and 3 clips, and then install the side instrument panel RH.
    Fig 13: Installing Side Instrument Panel RH
    G04050968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

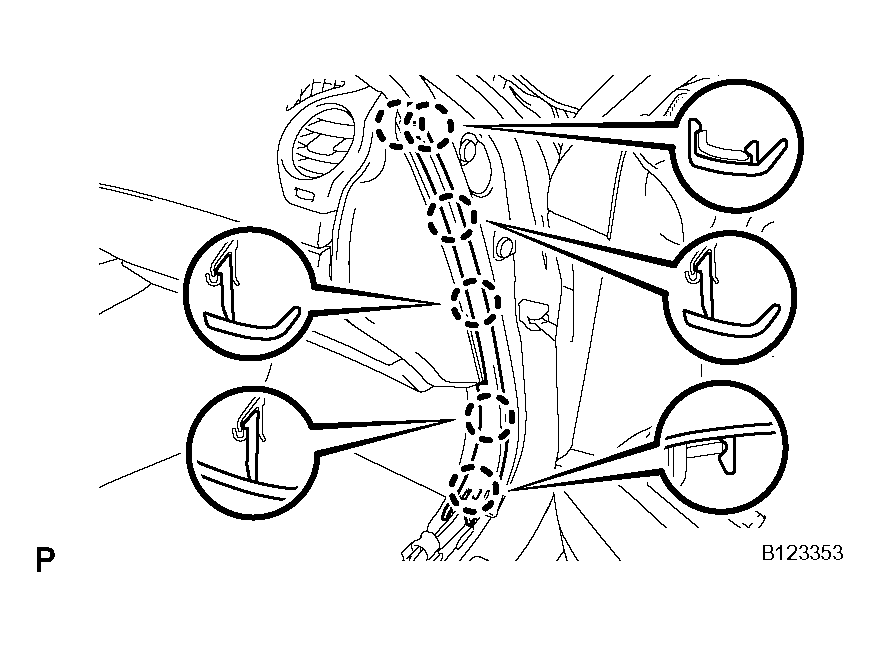

  18. INSTALL FRONT DOOR OPENING TRIM COVER RH
    1. Engage the 6 claws and install the front door opening trim cover RH.
    Fig 14: Installing Front Door Opening Trim Cover RH
    G04050969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
  20. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
  21. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connectors.
    2. Engage the 2 claws and install the combination meter assembly.

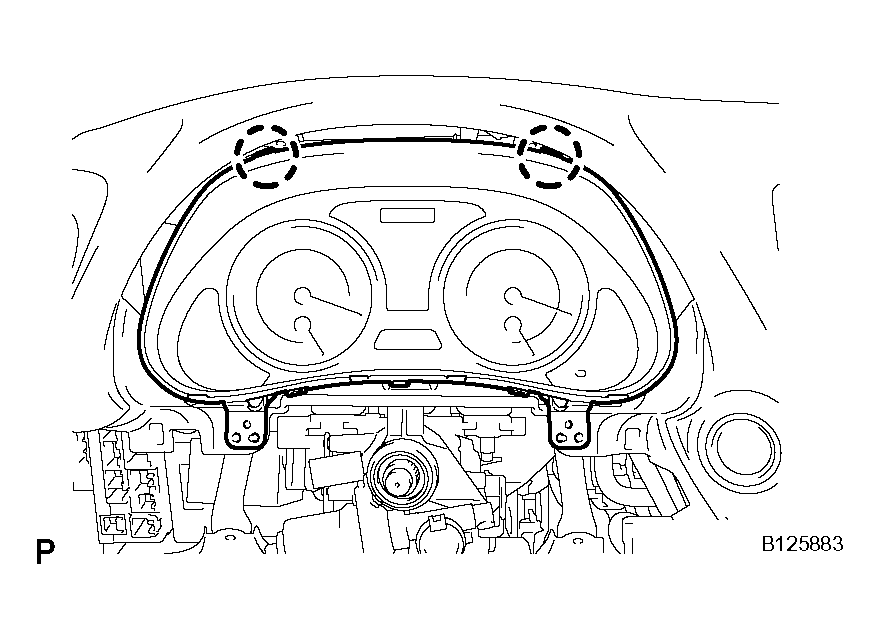

    Fig 15: Installing Combination Meter Assembly
    G04050970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Install the instrument cluster finish panel sub-assembly with the 2 screws and 2 clips.

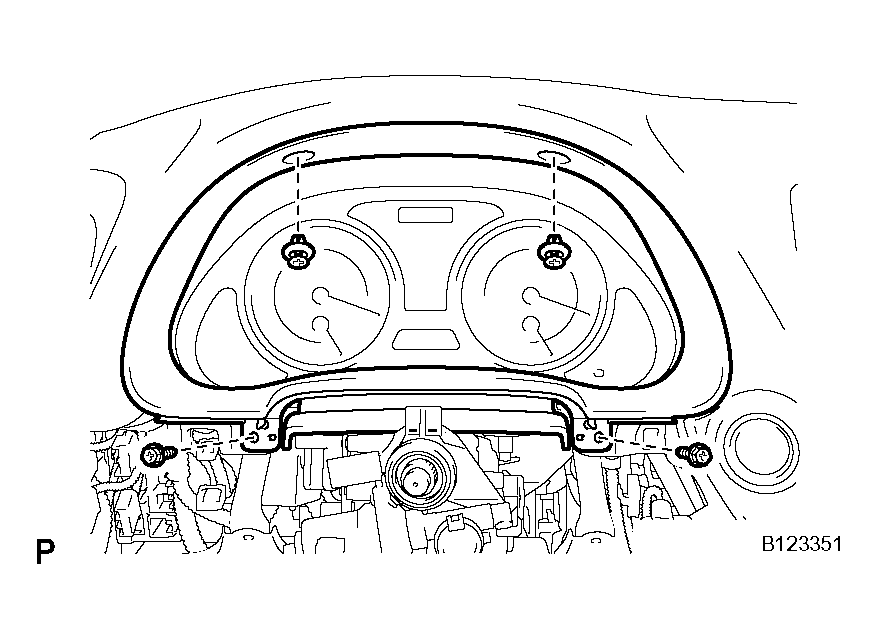

    Fig 16: Installing Instrument Cluster Finish Panel Sub-Assembly
    G04050971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  24. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Connect the connectors.
    2. Engage the 7 clips and install the lower instrument panel finish panel sub-assembly.

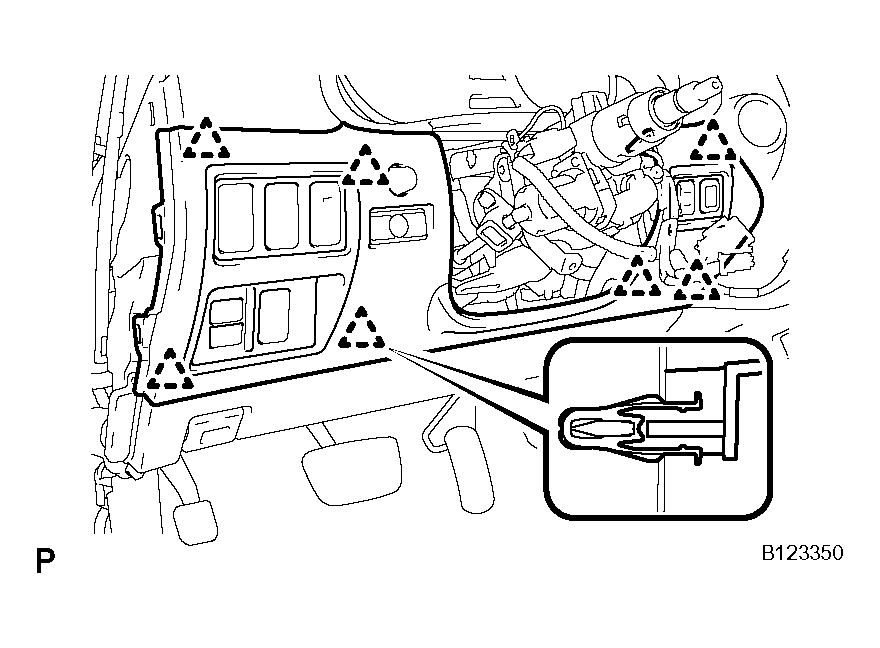

    Fig 17: Installing Lower Instrument Panel Finish Panel Sub-Assembly
    G04050972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

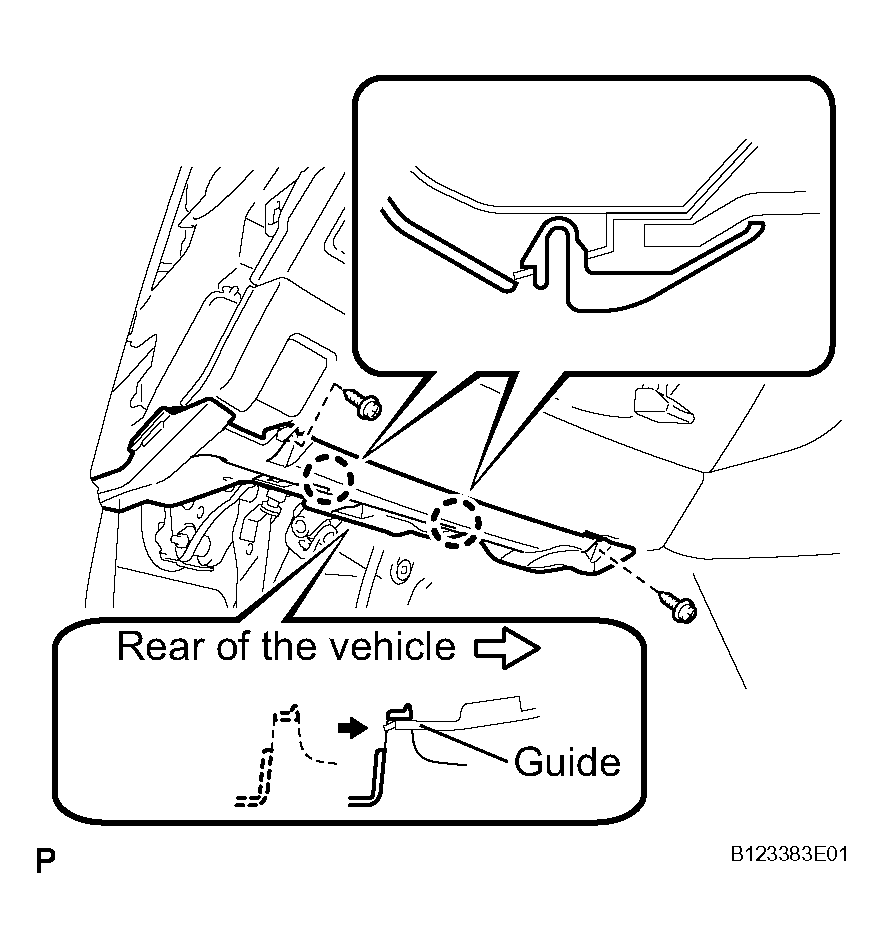

  25. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connectors.
    2. Insert the No. 1 instrument panel under cover sub-assembly into the guide as shown in Fig 18 .
    3. Engage the 2 claws.
    4. Install the No. 1 instrument panel under cover sub-assembly with the 2 screws < E >.
    Fig 18: Inserting No. 1 Instrument Panel Under Cover Sub-Assembly
    G04050973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL SIDE INSTRUMENT PANEL LH
    1. Engage the 5 claws and 3 clips, and then install the side instrument panel LH.

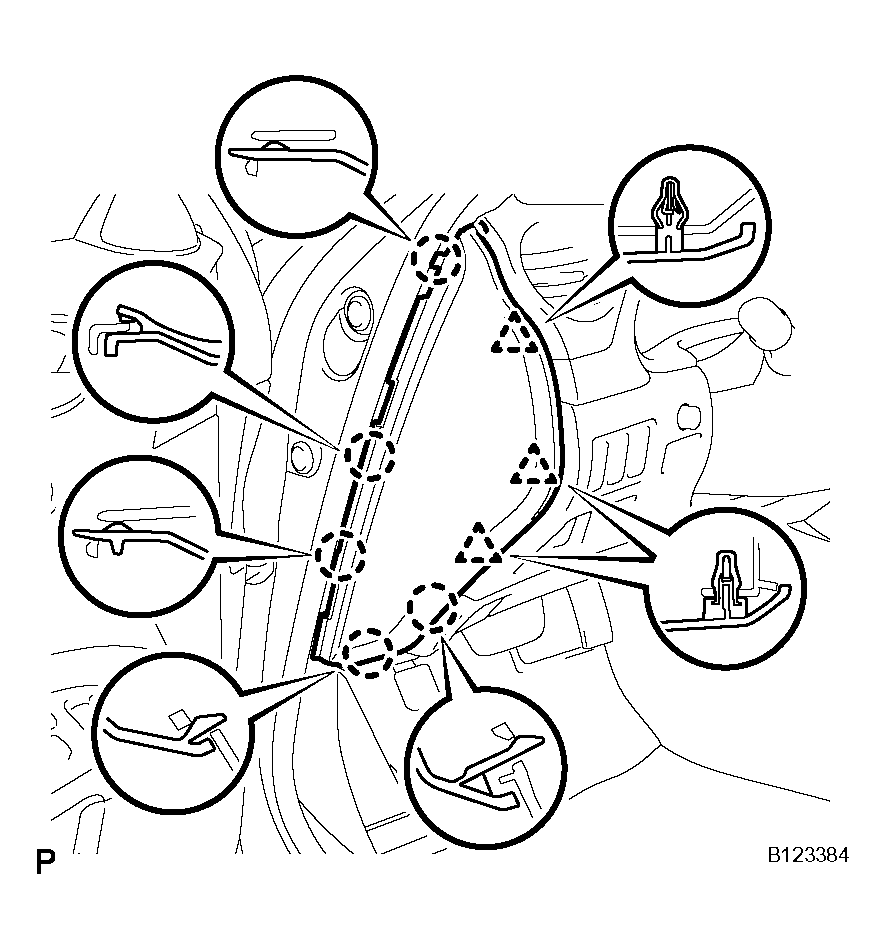

    Fig 19: Installing Side Instrument Panel LH
    G04050974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

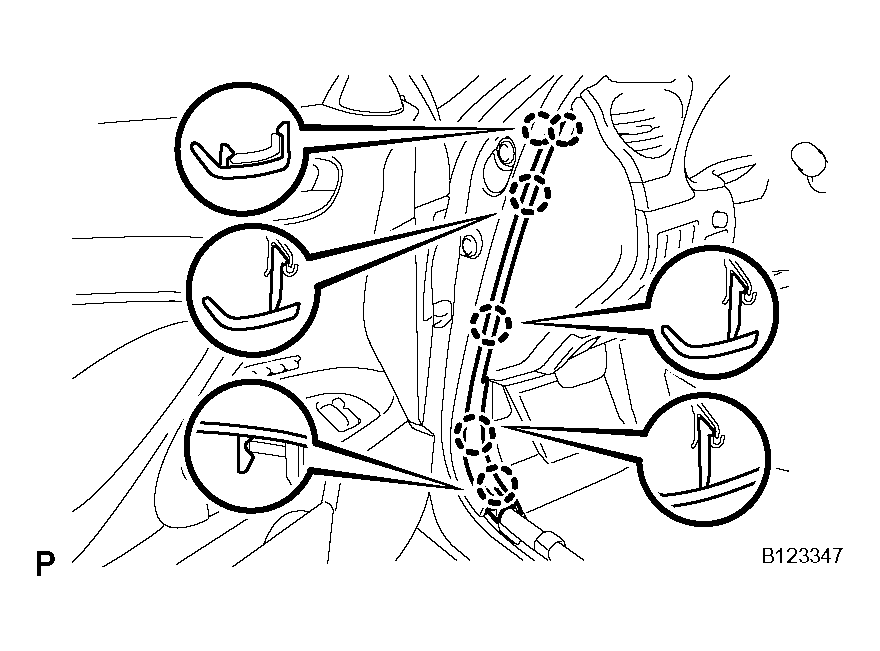

  27. INSTALL FRONT DOOR OPENING TRIM COVER LH
    1. Engage the 6 claws and install the front door opening trim cover LH.
    Fig 20: Installing Front Door Opening Trim Cover LH
    G04050975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) (See Step 88 in  INSTALLATION  )
  29. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) (See Step 90 in  INSTALLATION  )
  30. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (See Step 6 in  INSTALLATION  )
  31. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic) (See Step 7 in  INSTALLATION  )
  32. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See  INSTALLATION  )
  33. ADJUST SPIRAL CABLE SUB-ASSEMBLY (See  INSPECTION  )
  34. INSTALL STEERING WHEEL ASSEMBLY (See Step 9 in  INSTALLATION  )
  35. INSTALL STEERING PAD (See  INSTALLATION  )
  36. INSTALL LOWER NO. 3 STEERING WHEEL COVER (See Step 2 in  INSTALLATION  )
  37. INSTALL LOWER NO. 2 STEERING WHEEL COVER (See Step 3 in  INSTALLATION  )
  38. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See  INSTALLATION  )
  39. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See Step 8 in  INSTALLATION  )
  40. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
    1. Engage the 4 claws and install the center lower instrument cluster finish panel.

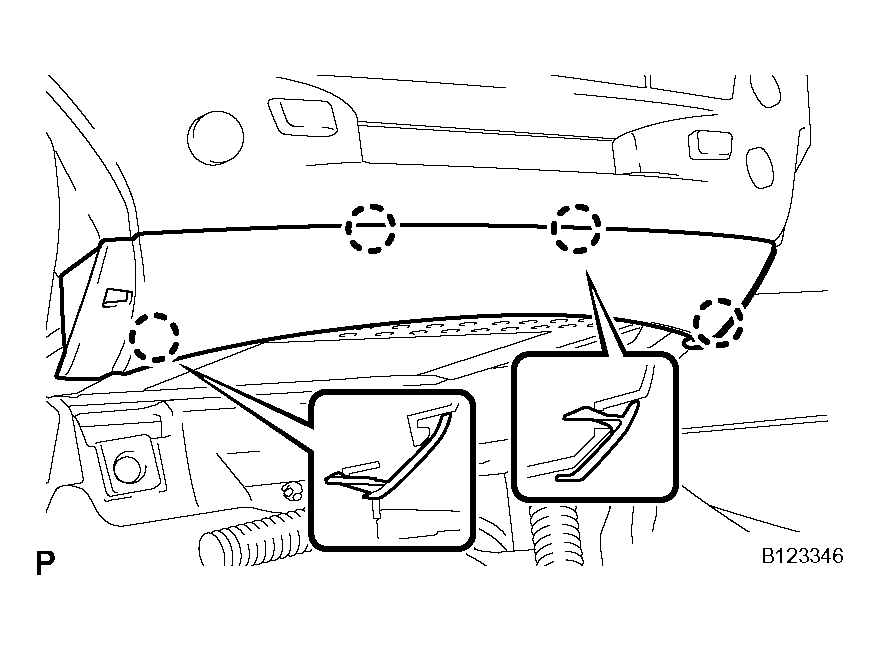

    Fig 21: Installing Center Lower Instrument Cluster Finish Panel
    G04050976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connectors.
    2. Engage the 11 claws and install the No. 3 instrument panel register assembly.

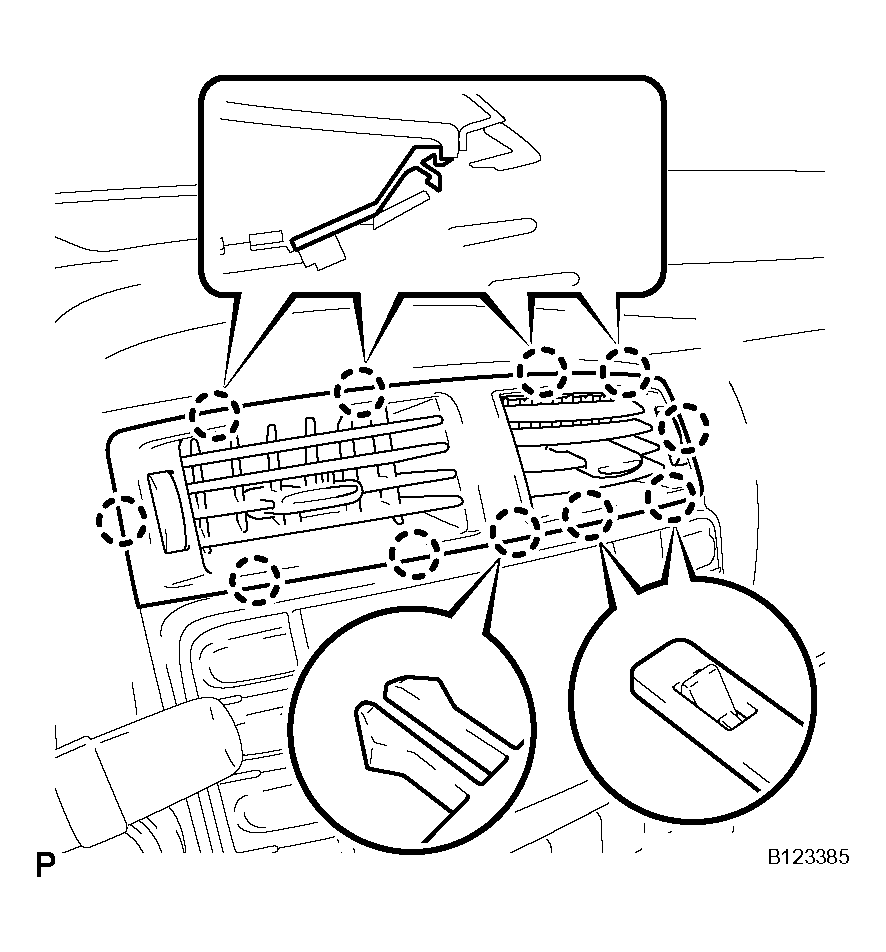

    Fig 22: Installing No. 3 Instrument Panel Register Assembly
    G04050977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

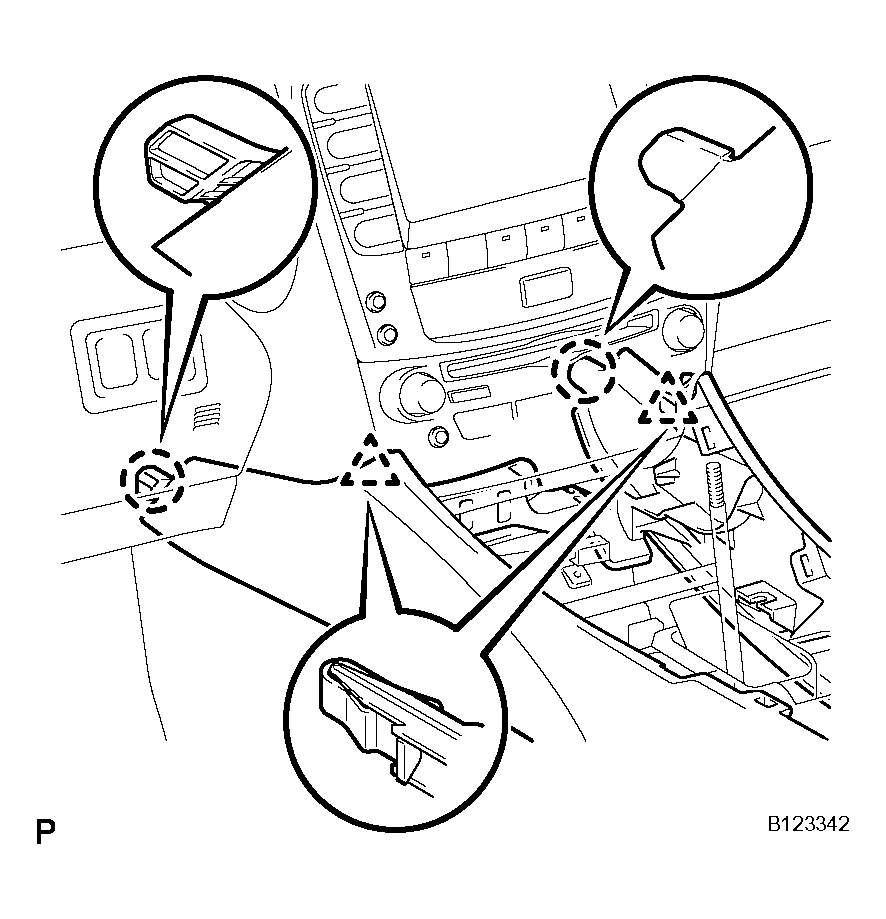

  42. INSTALL CONSOLE BOX
    1. Engage the 2 claws and 2 clips.
      Fig 23: Installing Console Box
      G04050978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

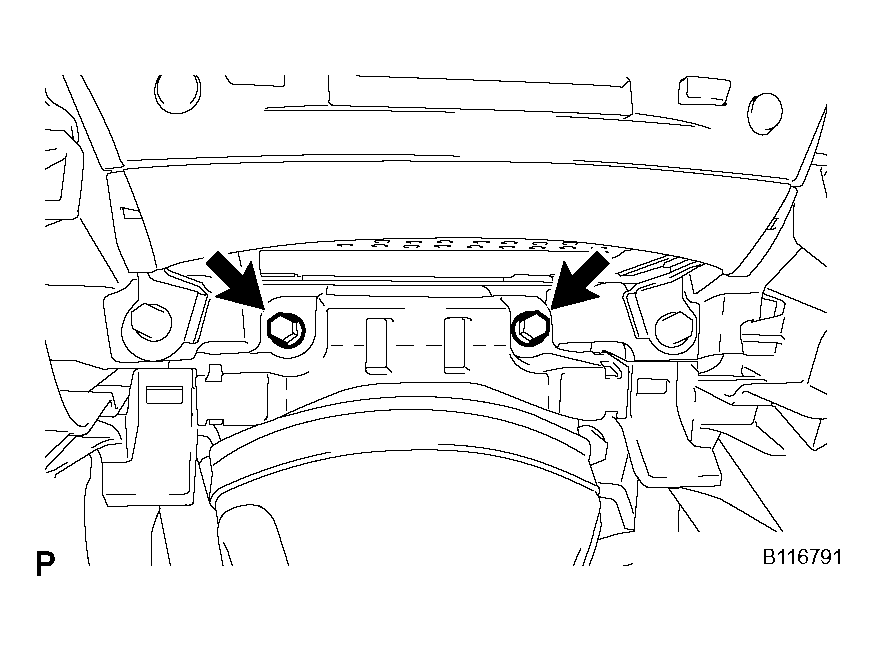

    2. Install the 2 bolts < C >.
      Fig 24: Installing Bolts
      G04050979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

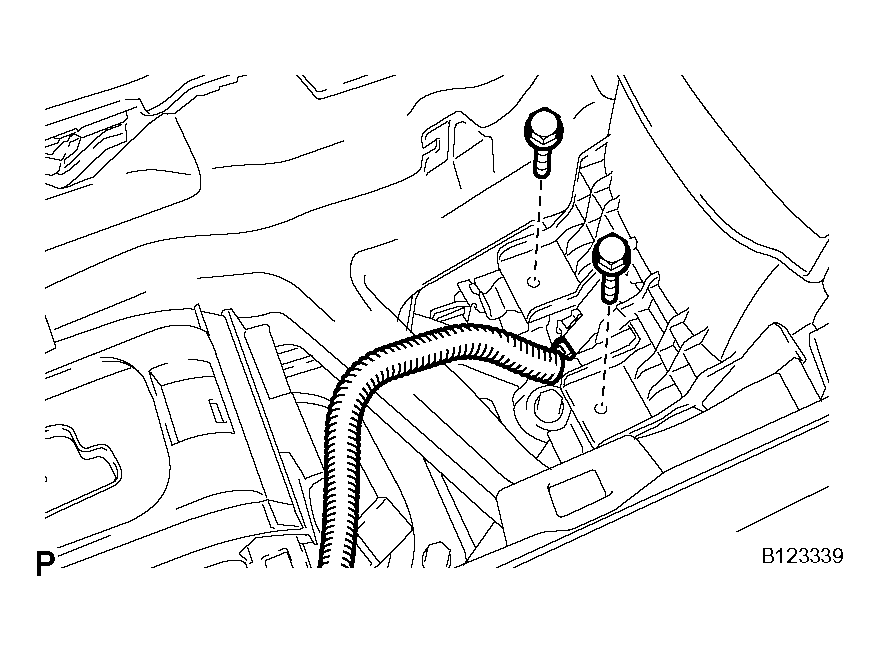

    3. Install the 2 bolts < C >.
    4. Connect the connector.
      Fig 25: Connecting Connector
      G04050980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

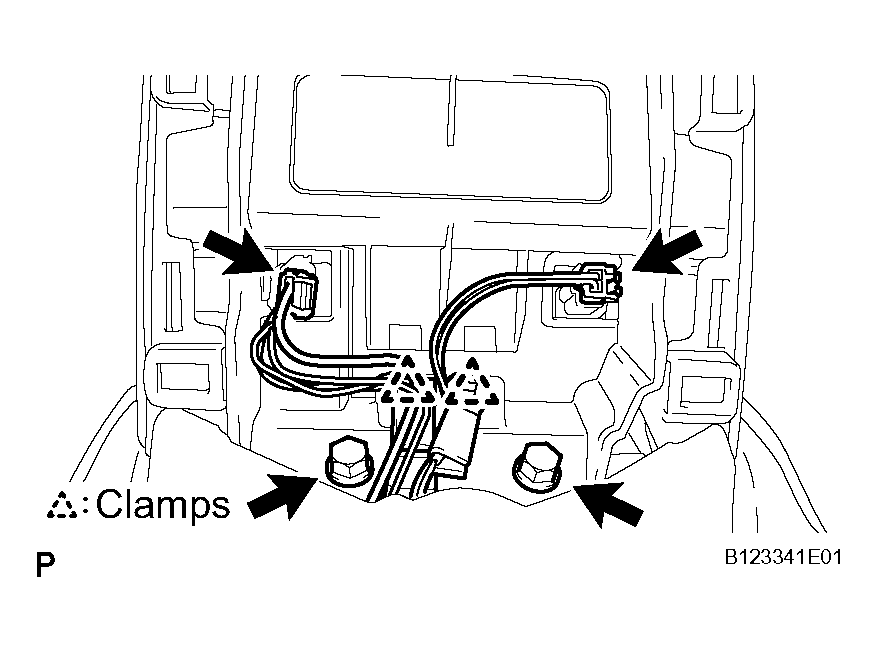

    5. Connect the connectors.
    6. Engage the 2 clamps.
    7. Install the 2 bolts < C >.
      Fig 26: Engaging Clamps
      G04050981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL CONSOLE BOX REGISTER ASSEMBLY
    1. Engage the 2 claws and 4 clips, and then install the console box register assembly.
    2. Install the rear ash receptacle assembly.

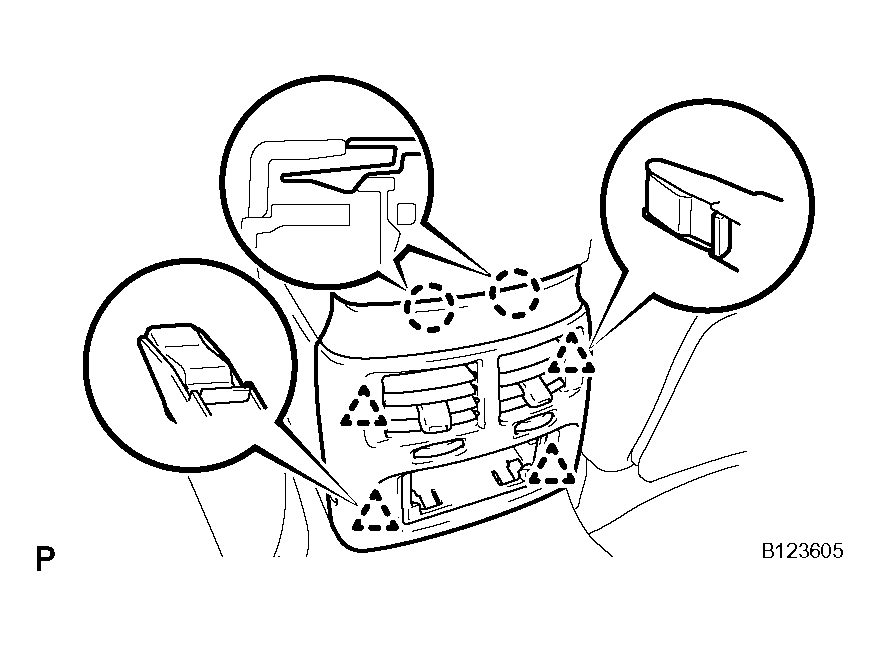

    Fig 27: Installing Console Box Register Assembly
    G04050982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY
    1. Connect the connectors.
    2. Insert the protruding parts of the front ash receptacle sub-assembly into the 2 guide holes.

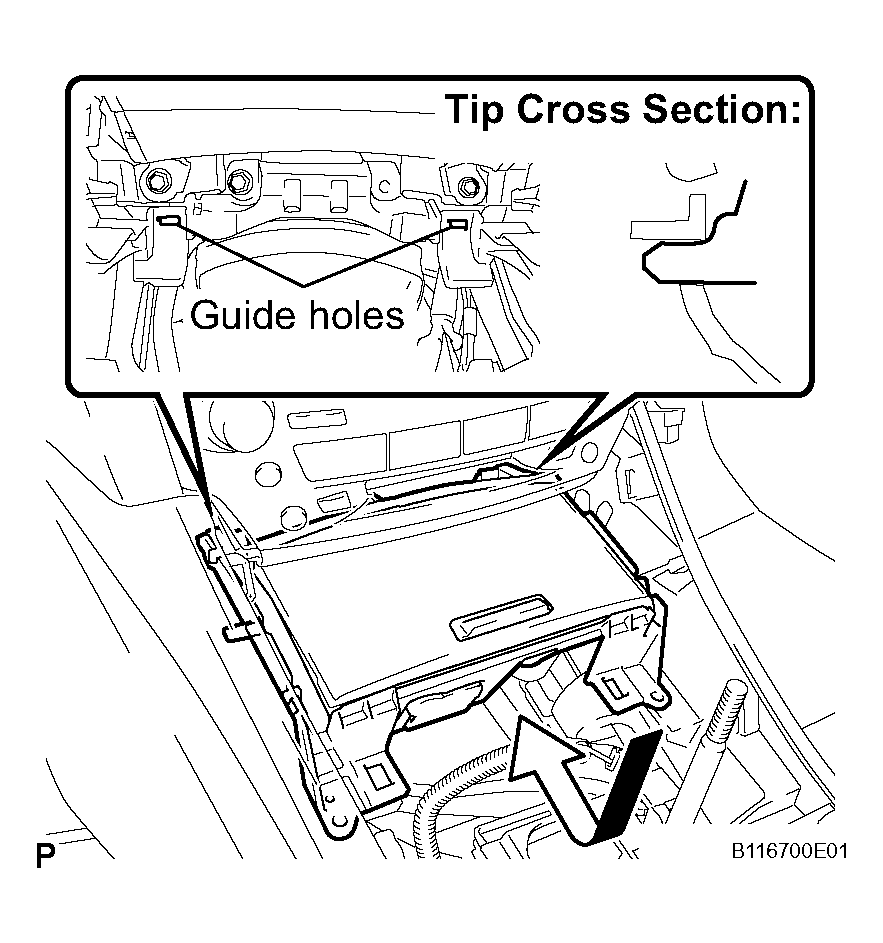

      Fig 28: Installing Protruding Parts Of Front Ash Receptacle Sub-Assembly
      G04050983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the front ash receptacle sub-assembly with the 2 screws < F >.

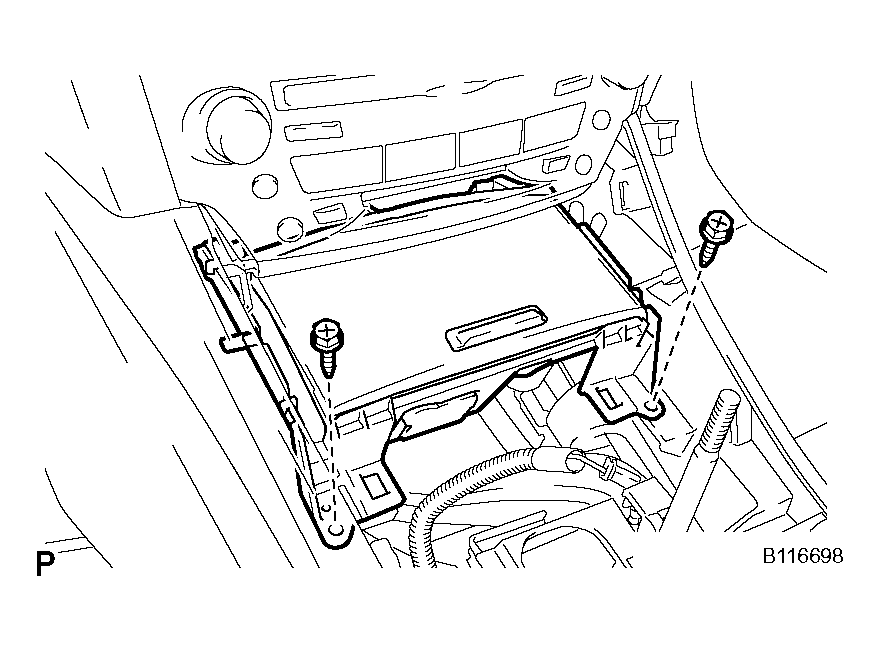

    Fig 29: Installing Front Ash Receptacle Sub-Assembly
    G04050984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
    1. Engage the 6 clips.

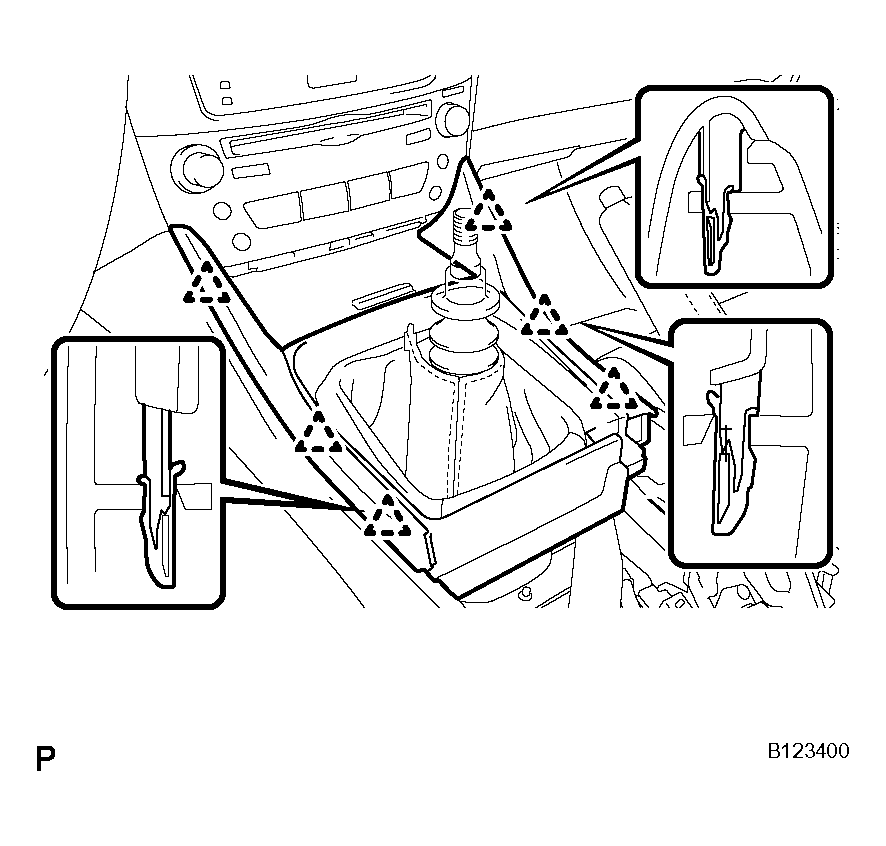

      Fig 30: Installing Front Console Panel Sub-Assembly
      G04050985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Close the snap.
    Fig 31: Closing Snap
    G04050986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
    1. Engage the 7 claws and 2 clips.

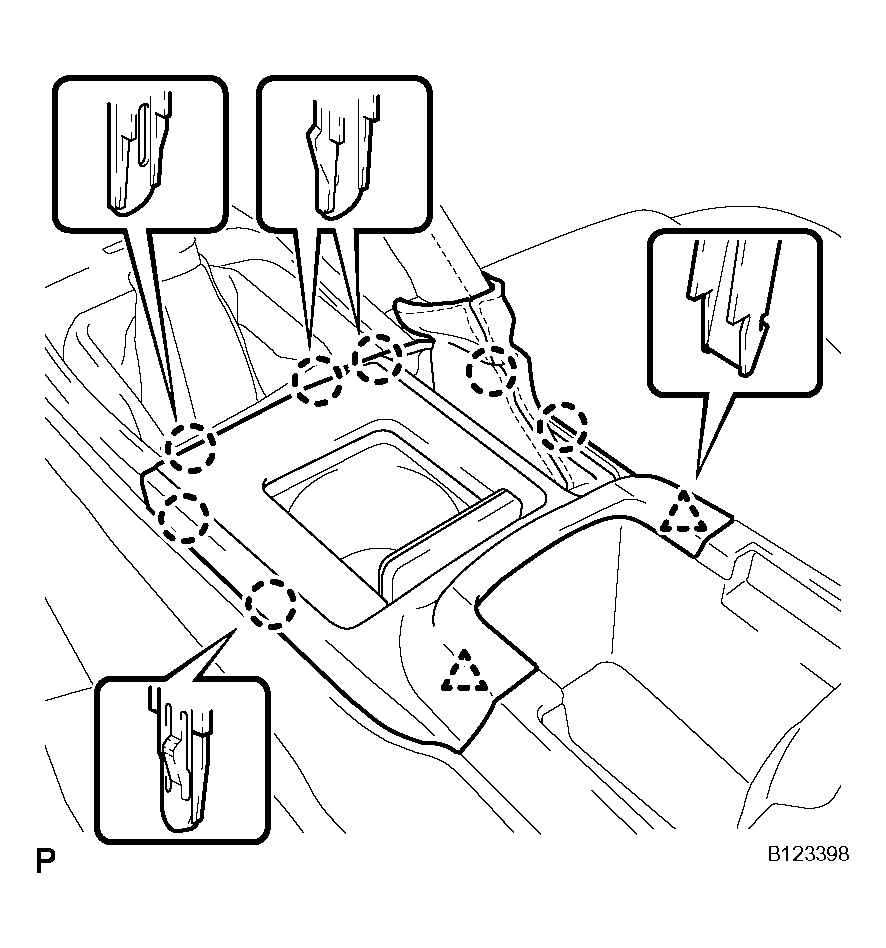

      Fig 32: Installing Rear Console Panel Sub-Assembly (For Manual Transmission)
      G04050987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Close the snap.
    Fig 33: Closing Snap
    G04050988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
    1. Connect the connectors.
    2. Engage the 8 clips and install the console panel sub-assembly.

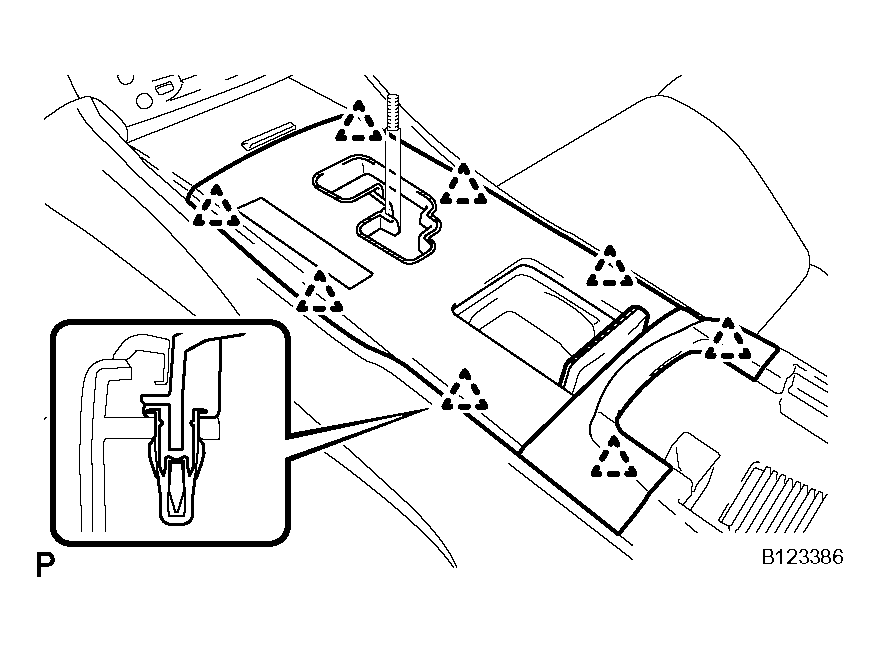

    Fig 34: Installing Console Panel Sub-Assembly
    G04050989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
    1. Engage the claw and 2 clips, and then install the upper No. 2 console panel garnish.

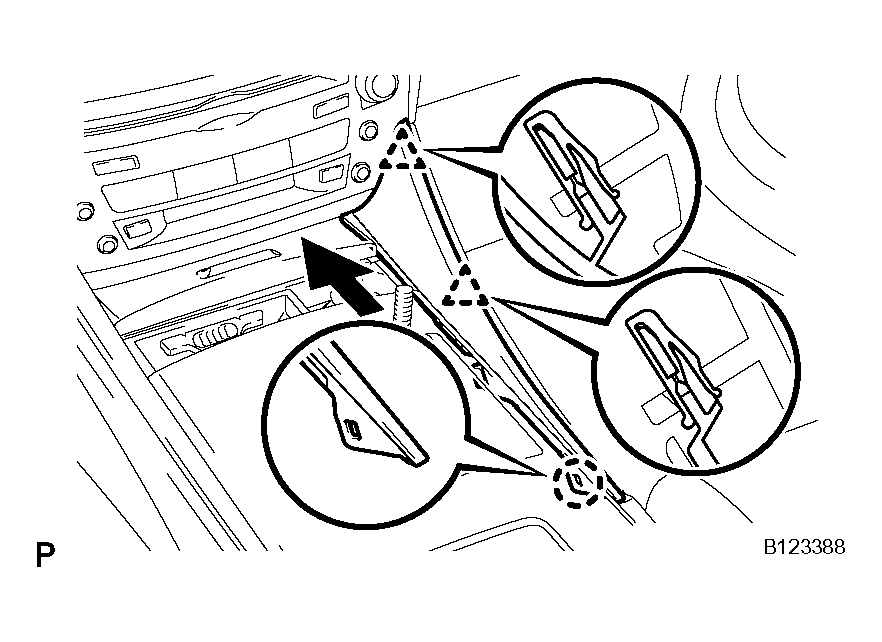

    Fig 35: Installing Upper No. 2 Console Panel Garnish
    G04050990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
    1. Engage the claw and 2 clips, and then install the upper No. 1 console panel garnish.

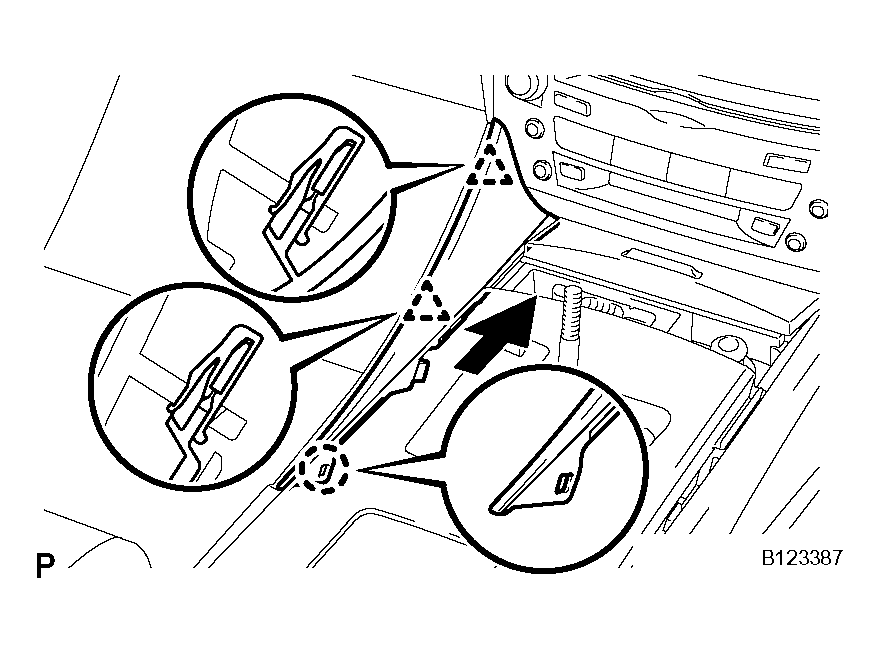

    Fig 36: Installing Upper No. 1 Console Panel Garnish
    G04050991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  51. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  52. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  53. PERFORM INITIALIZATION
    NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).
  54. INSPECT STEERING PAD (See  ON-VEHICLE INSPECTION  )
  55. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )
