Front Bumper: Disassembly

  1. REMOVE RADIATOR GRILLE PROTECTOR (See  REMOVAL   )
  2. REMOVE FRONT BUMPER MOULDING (See  REMOVAL   )
  3. REMOVE RADIATOR GRILLE (See  REMOVAL   )
  4. REMOVE ENGINE ROOM NO. 4 WIRE (w/ Clearance Sonar System)
    1. Disconnect the 4 connectors and 15 clamps and remove the wire.

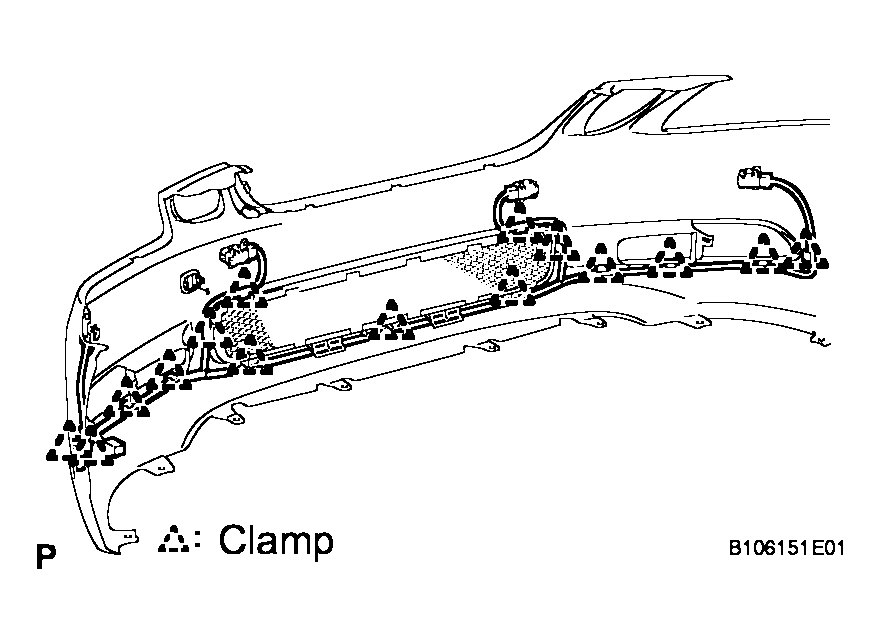

      Fig 1: Identifying 4 Connectors And 15 Clamps
      G04023778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT BUMPER COVER LOWER
    1. Detach the 2 claws and remove the bumper cover lower.

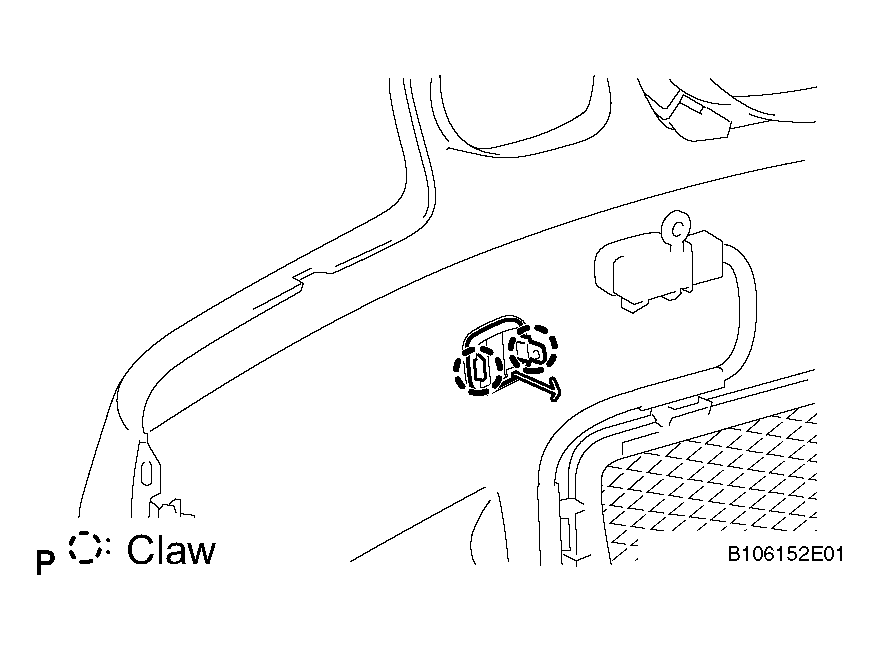

      Fig 2: Identifying Bumper Cover Lower
      G04023779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RADIATOR GRILLE LOWER
    1. Detach the 9 claws and remove the grille lower.
  7. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. Remove the 2 screws and mounting bracket.
  8. REMOVE FOG LIGHT ASSEMBLY (See  REMOVAL  )
  9. REMOVE NO. 3 ULTRASONIC SENSOR (w/ Clearance Sonar System) (See  REMOVAL  )
