Fog Light Assembly: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
3. REMOVE ENGINE UNDER COVER (See  REMOVAL  )
4. REMOVE FRONT BUMPER COVER (See  REMOVAL  )
5. REMOVE FOG LIGHT ASSEMBLY

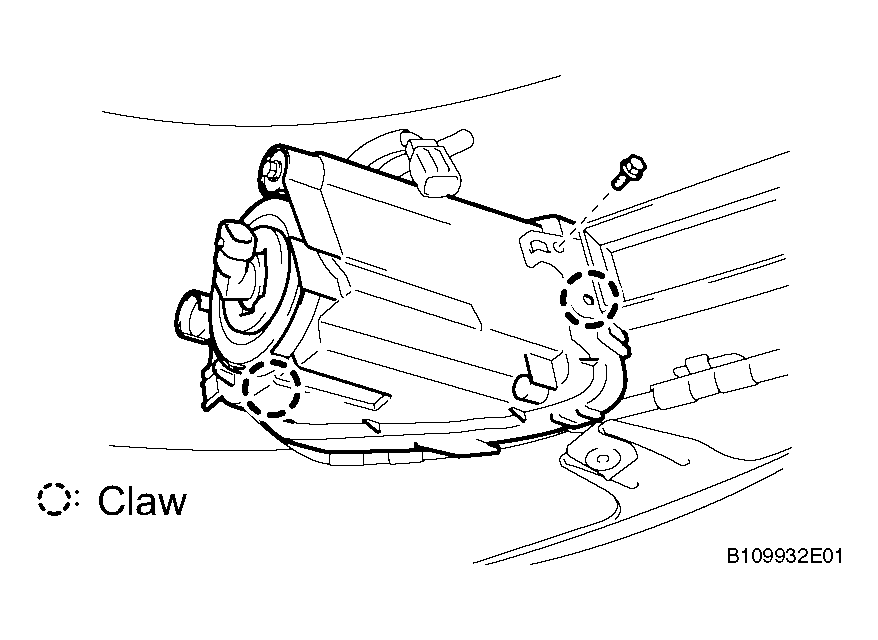

   1. Remove the bolt.
   2. Detach the 2 claws and remove the fog light.
      Fig 1: Identifying Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE FOG LIGHT BULB

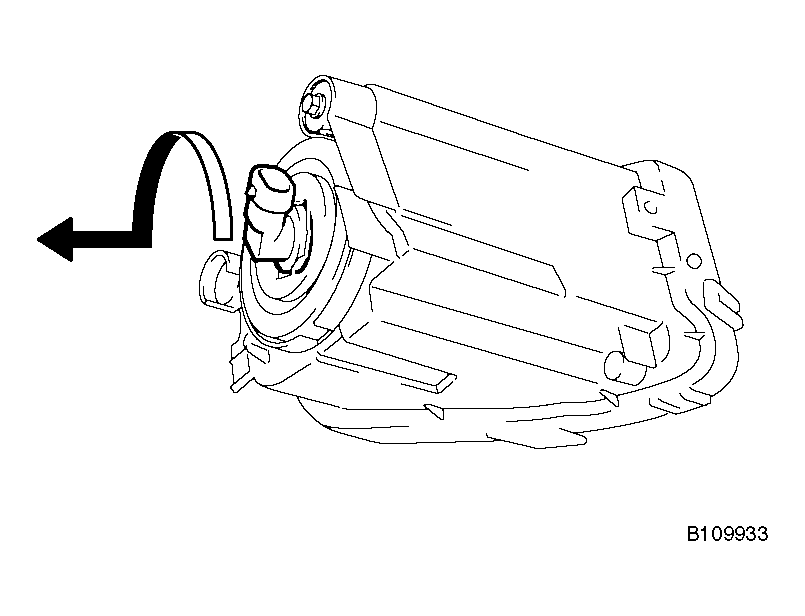

   1. Turn the fog light bulb in the direction indicated by the arrow and remove it.
      Fig 2: Identifying Fog Light Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
