Ultrasonic Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE COOL AIR INTAKE DUCT SEAL (See  DISASSEMBLY  )
  3. REMOVE ENGINE UNDER COVER (See  DISASSEMBLY  )
  4. REMOVE FRONT FENDER LINER LH (See  DISASSEMBLY  )
  5. REMOVE FRONT FENDER LINER RH (See  DISASSEMBLY  )
  6. REMOVE FRONT BUMPER COVER (See  DISASSEMBLY  )
  7. REMOVE NO. 3 ULTRASONIC SENSOR
    1. Disconnect the sensor connector.
    2. Remove the sensor from the sensor retainer as shown in the illustration.

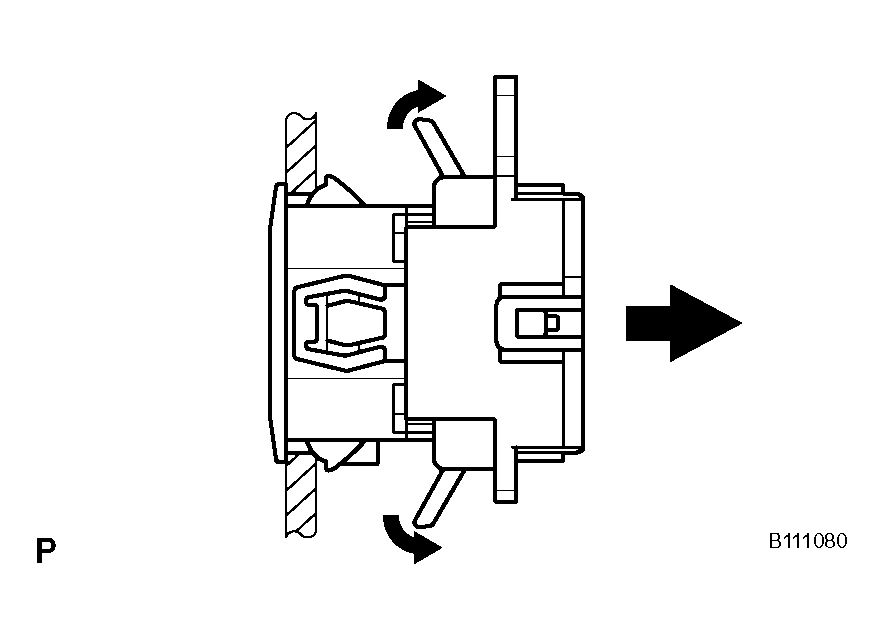

      Fig 1: Removing Sensor From Sensor Retainer
      G04022946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the sensor retainer as shown in the illustration.
  8. REMOVE REAR NO. 1 BUMPER PLATE (See  REMOVAL  )
  9. REMOVE REAR BUMPER COVER (See  REMOVAL  )

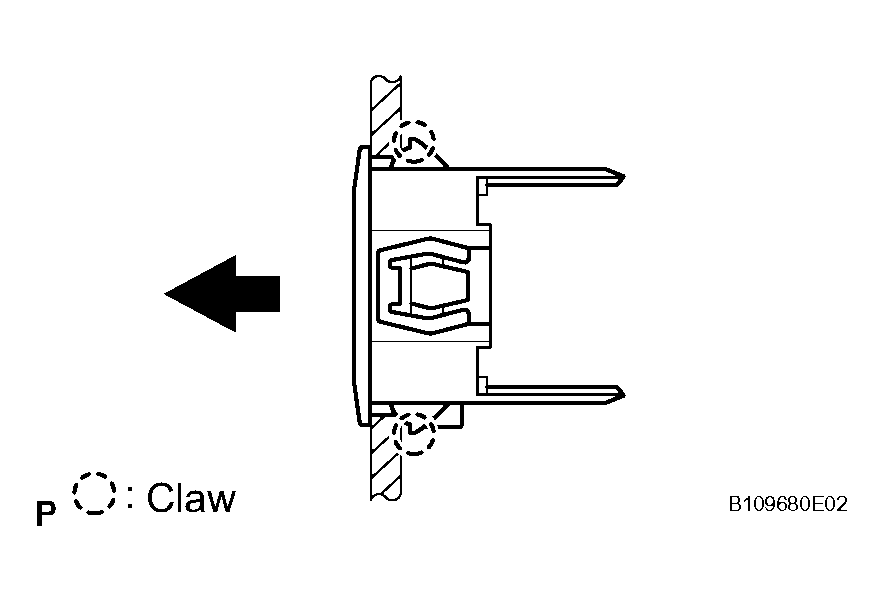

    Fig 2: Removing Sensor Retainer
    G04022947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 ULTRASONIC SENSOR
    1. Disconnect the sensor connector.
    2. Remove the sensor retainer.
    3. Remove the sensor from the rear bumper.

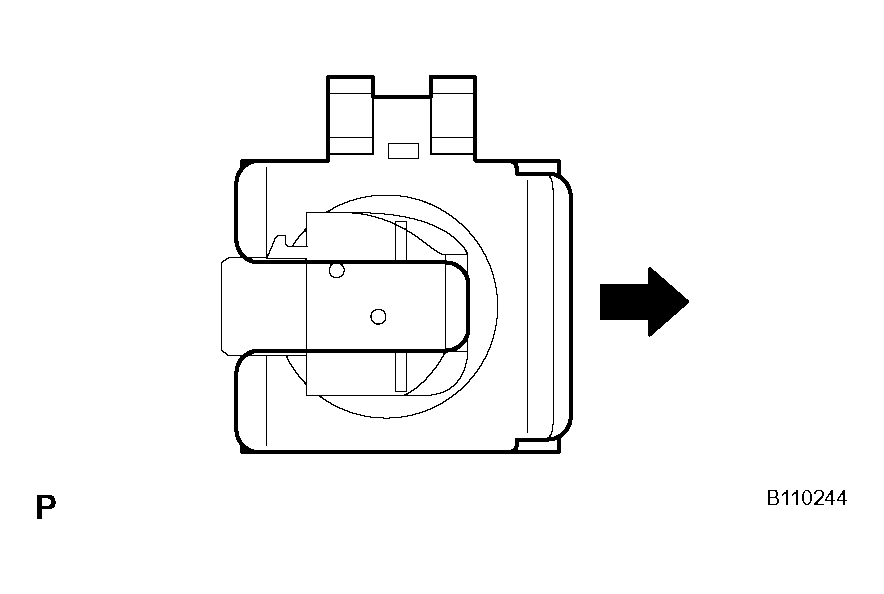

      Fig 3: Removing No. 2 Ultrasonic Sensor
      G04022948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 ULTRASONIC SENSOR
    1. Disconnect the sensor connector.
    2. Remove the sensor retainer.
    3. Remove the sensor from the rear bumper.

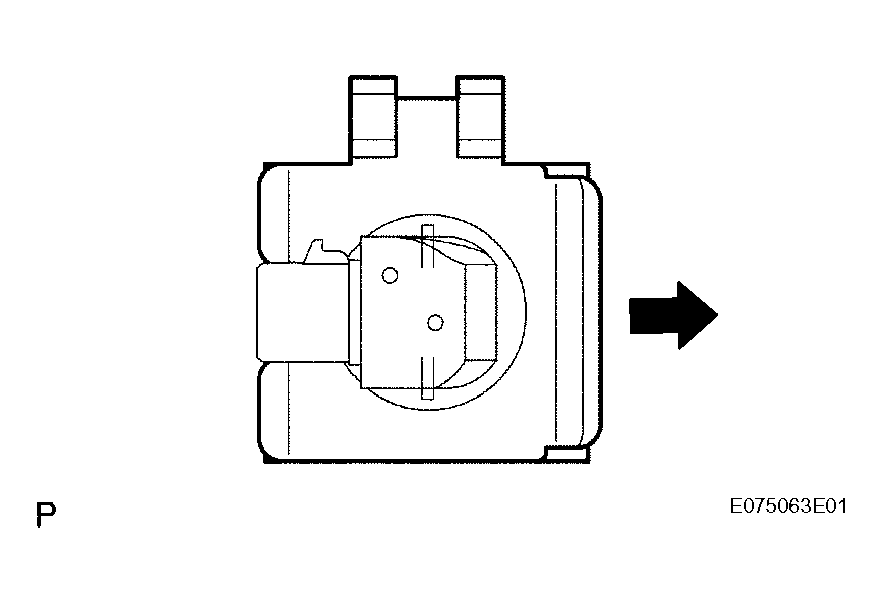

      Fig 4: Removing No. 1 Ultrasonic Sensor
      G04022949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
