Repair Procedures: Replacement

Information

• When removing and installing the liftgate, an assistant is needed.

1. Remove the liftgate upper trim.

   (Refer to Liftgate - "LIFTGATE UPPER TRIM ")

2. Remove the liftgate side trim.

   (Refer to Liftgate - "LIFTGATE SIDE TRIM ")

3. Remove the liftgate trim.

   (Refer to Liftgate - "LIFTGATE TRIM ")

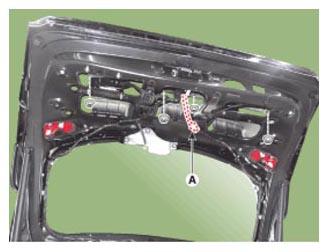

4. Disconnect the rear view camera connector (A).

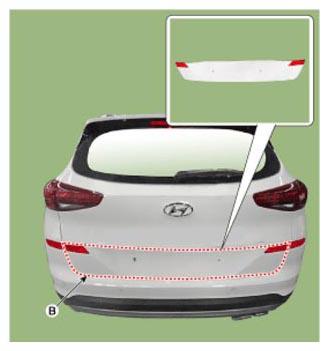

5. Loosen the mounting nuts and remove the liftgate back panel (B).

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

6. To install, reverse removal procedure.
