Liftgate side trim
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Take care not to scratch the body surface.
- Remove the liftgate upper trim.
(Refer to Liftgate - "LIFTGATE UPPER TRIM ")

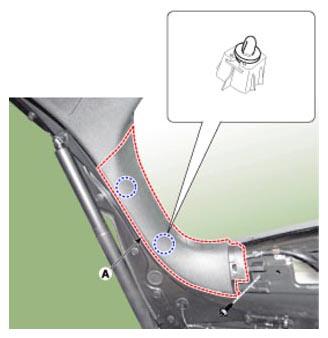

- After loosening the mounting screw, then remove the liftgate side trim (A).
- Install in the reverse order of removal.
Information
- Replace any damaged clips (or pin-type retainers).
