Liftgate trim
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Take care not to scratch the body surface.
- Remove the liftgate upper trim.
(Refer to Liftgate - "LIFTGATE UPPER TRIM ")
- Remove the liftgate side trim.
(Refer to Liftgate - "LIFTGATE SIDE TRIM ")

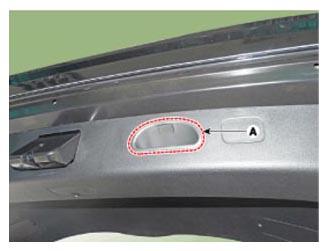

- Remove the liftgate inside handle caps (A).

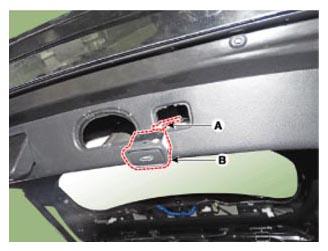

- Disconnect the connector (A) and then remove the power liftgate inner switch (B).

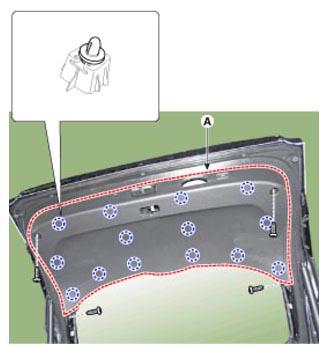

- After loosening the mounting screws, remove the liftgate trim (A).
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
