Intake Air Resonator Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION  ).
  3. Remove the battery base (see step 11 on ENGINE REMOVAL ).
  4. Remove the splash separator (A).

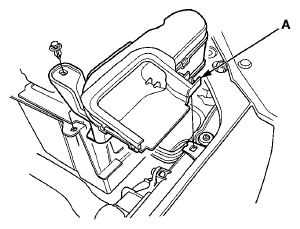

    Fig 1: Identifying Splash Separator
    G06422370Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the intake air ducts (A).

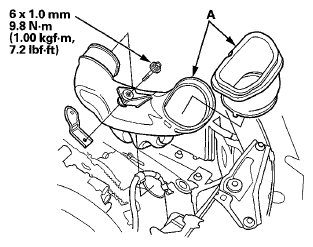

    Fig 2: Intake Air Ducts With Torque Specifications
    G06422371Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  7. Remove the intake air resonator (A).

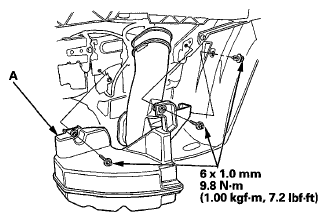

    Fig 3: Intake Air Resonator With Torque Specifications
    G06422372Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the parts in the reverse order of removal.
  9. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
