Front Bumper Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Have an assistant help you when removing and installing the front bumper.
Put on gloves to protect your hands.
Take care not to scratch the front bumper or the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the front grille cover (see FRONT GRILLE COVER REPLACEMENT ).

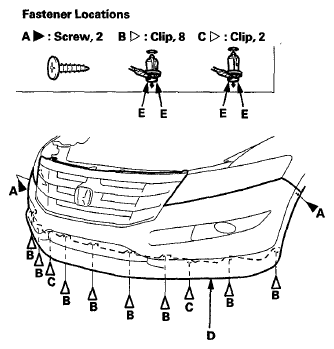

Remove the screws (A) and the clips (B, C) securing the front bumper (D).
NOTE: To release the clips, pry up on the center pin at the notch (E).

Fig 1: Locating Screws And Clips Securing Front Bumper
Courtesy of AMERICAN HONDA MOTOR CO., INC.

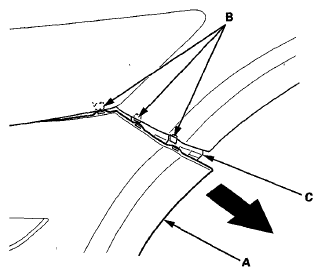

Pull out the front bumper (A) at the wheel arch areas to release it from the hooks (B) on the side spacers (C).

Fig 2: Locating Front Bumper, Hooks And Side Spacers
Courtesy of AMERICAN HONDA MOTOR CO., INC.

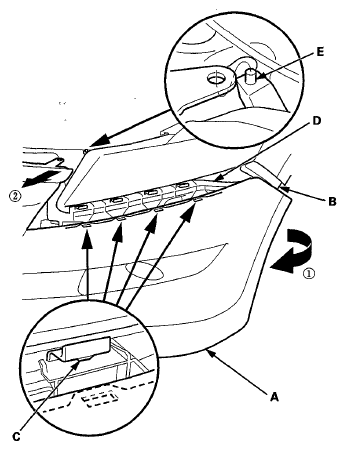

With the help of an assistant/pull both sides of the front bumper (A) away from the side spacers (B). Then pull out the bumper to release the hooks (C) from the upper beams (D), and release the bumper from the pins (E) on both headlights.
NOTE: When releasing the last hook, release it while holding the front bumper to prevent damaging the pin.

Fig 3: Locating Bumper Hooks And Bumper Pins
Courtesy of AMERICAN HONDA MOTOR CO., INC.

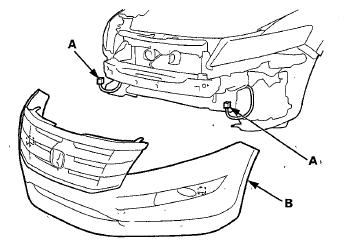

Disconnect the fog light connectors (A), then remove the front bumper (B).

Fig 4: Locating Fog Light Connectors And Front Bumper
Courtesy of AMERICAN HONDA MOTOR CO., INC.

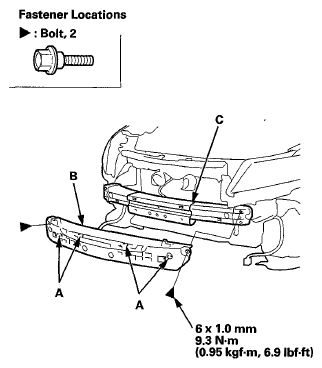

If necessary, remove the bolts, and release the hooks (A), then remove the front bumper absorber (B) from the front bumper beam (C).

Fig 5: Locating Hooks, Front Bumper Absorber And Front Bumper Beam With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

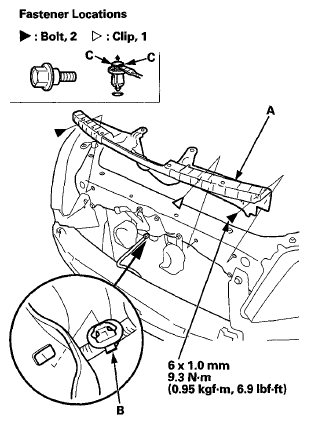

If necessary, remove the bolts and the clip securing the front bumper center upper beam (A) and detach the harness clip (B), then remove the beam from the body.
NOTE: To release the clip, pry up on the center pin at the notch (C).

Fig 6: Locating Front Bumper Center Upper Beam And Harness Clip With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bumper in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure that each connector is plugged in properly.
- Make sure the front bumper engages the hooks (of both upper beams and side spacers) and the pins (of both headlights) on each side securely.
- Push the clips and the hooks into place securely.
