Air Cleaner Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  2. Disconnect the MAF sensor/IAT sensor 5P connector (A).

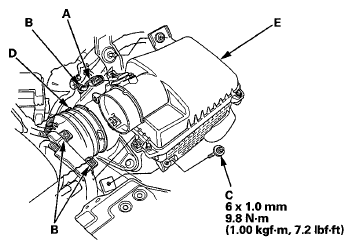

    Fig 1: MAF Sensor/IAT Sensor 5P Connector, Harness Clamps And Bolt With Torque Specifications
    G06422369Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the harness clamps (B) and the bolt (C).
  4. Loosen the band (D), then remove the air cleaner (E).
  5. Install the parts in the reverse order of removal.
  6. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
