Timing Chain Cover: Removal

WARNING: This page is about a different variant/trim than selected.

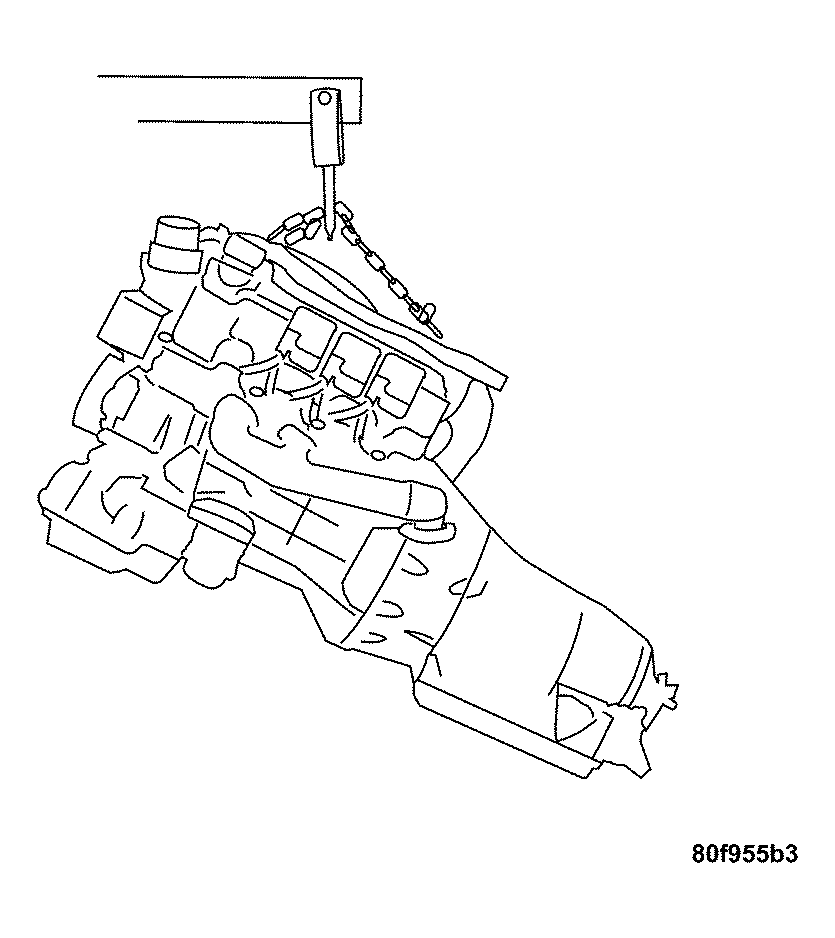

Fig 1: Removing Engine From Vehicle
GC0034745Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the engine from the vehicle. (Refer to ENGINE - REMOVAL) .
  2. Separate the engine from the transmission. For manual (Refer to TRANSMISSION/TRANSAXLE/MANUAL - REMOVAL) , for automatic (Refer to TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - REMOVAL) .

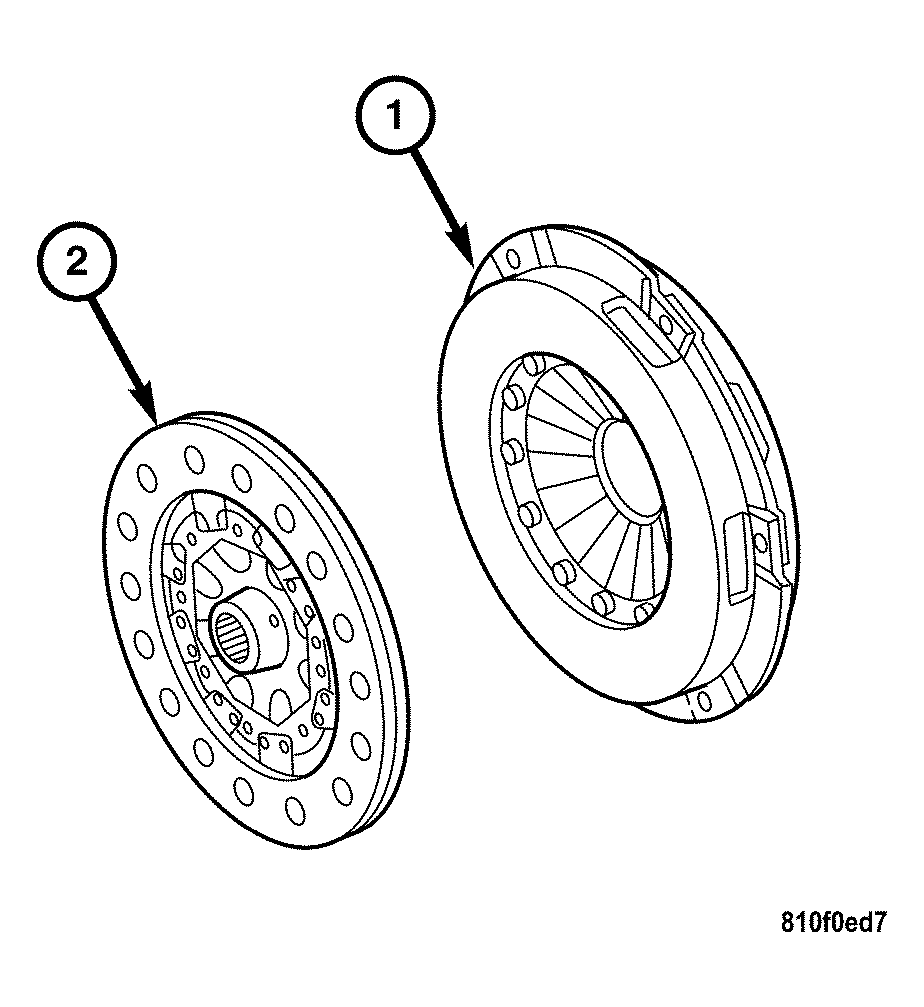

    Fig 2: Identifying Clutch Cover & Clutch
    GC0034747Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the clutch cover (1) and the clutch (2) if equipped. (Refer to CLUTCH/CLUTCH DISC - REMOVAL) .
  4. Mount the engine on a stand.

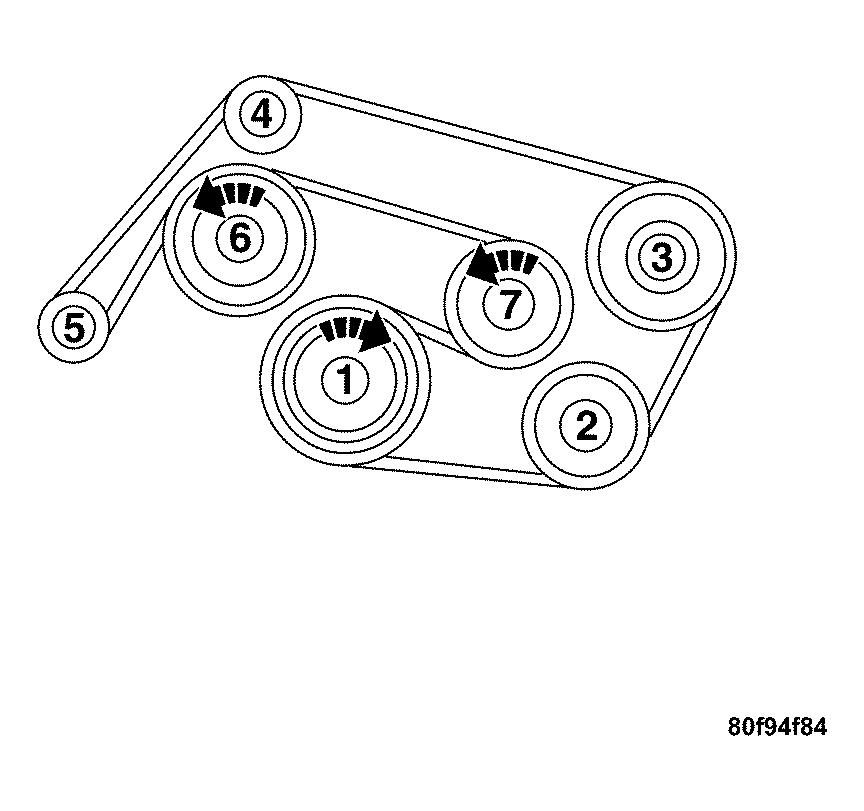

    Fig 3: Accessory Drive Belt
    GC0034746Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the accessory drive belt. (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .

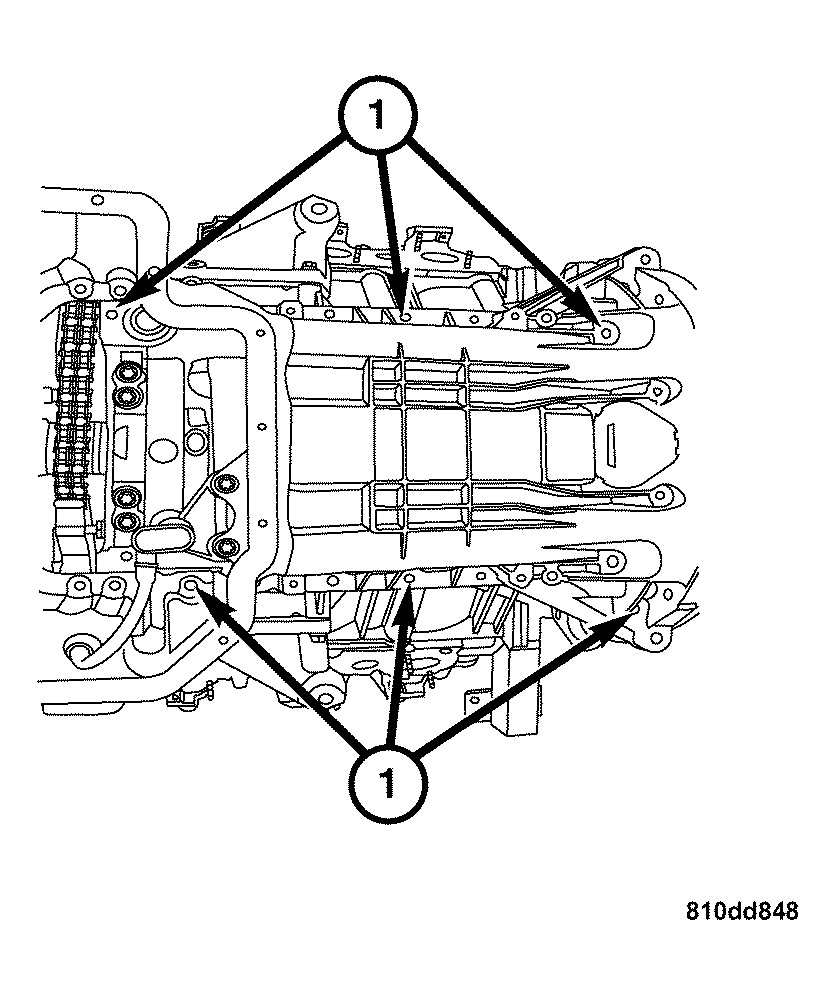

    Fig 4: Removing Lower Oil Pan Bolts
    GC0034748Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the lower oil pan. Remove the bolts (1) and remove the upper oil pan. (Refer to ENGINE/LUBRICATION/OIL PAN - REMOVAL) .
  7. Remove the power steering pump. (Refer to STEERING/PUMP - REMOVAL) .
  8. Remove the idler pulley.

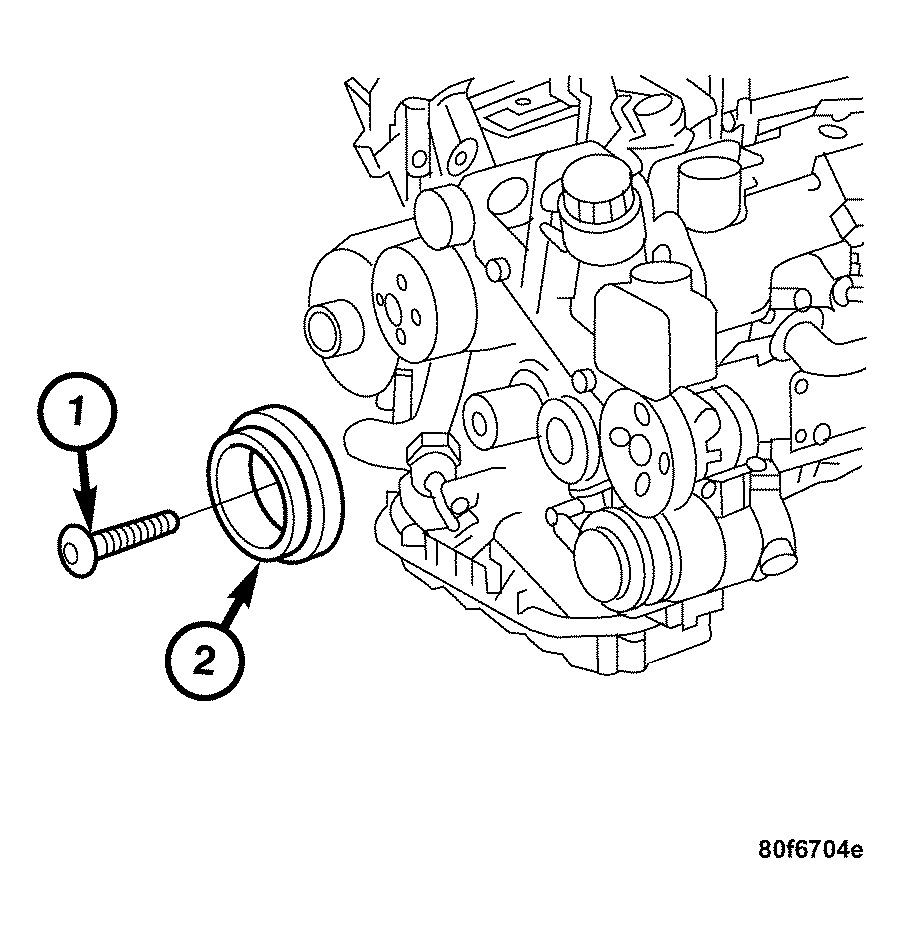

    Fig 5: Removing/Installing Vibration Damper
    GC0034751Courtesy of DAIMLERCHRYSLER CORP.
  9. Remove the bolt (1) and remove the vibration damper (2). (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL) .
  10. Remove the generator. (Refer to ELECTRICAL/CHARGING/GENERATOR - REMOVAL) .

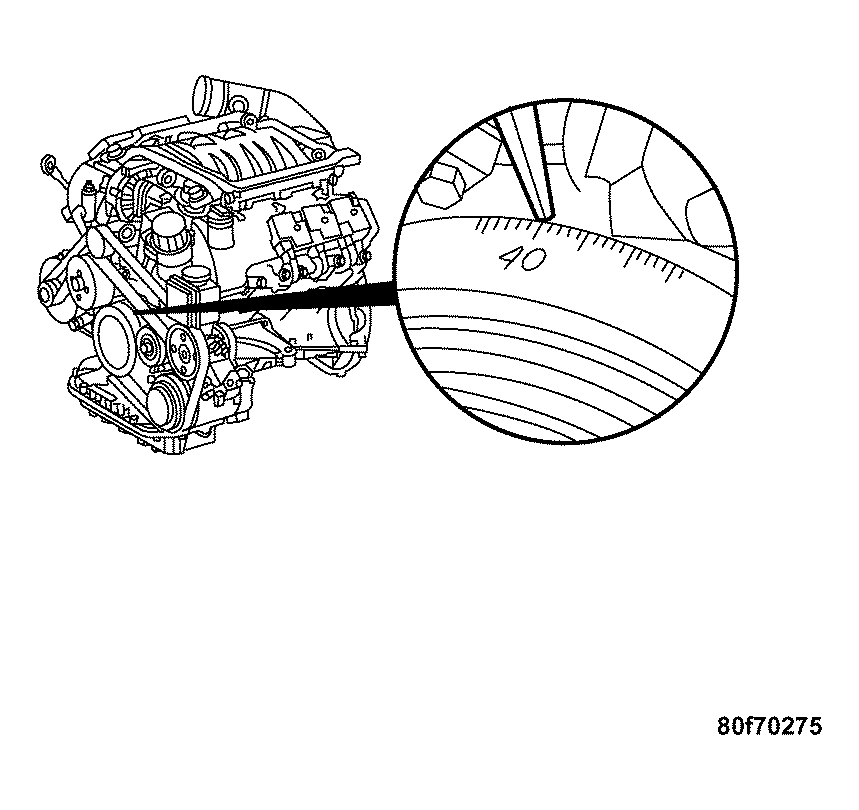

    Fig 6: Rotating Crankshaft To 40Degrees ATDC
    GC0034742Courtesy of DAIMLERCHRYSLER CORP.
  11. Rotate the crankshaft to 40° ATDC.

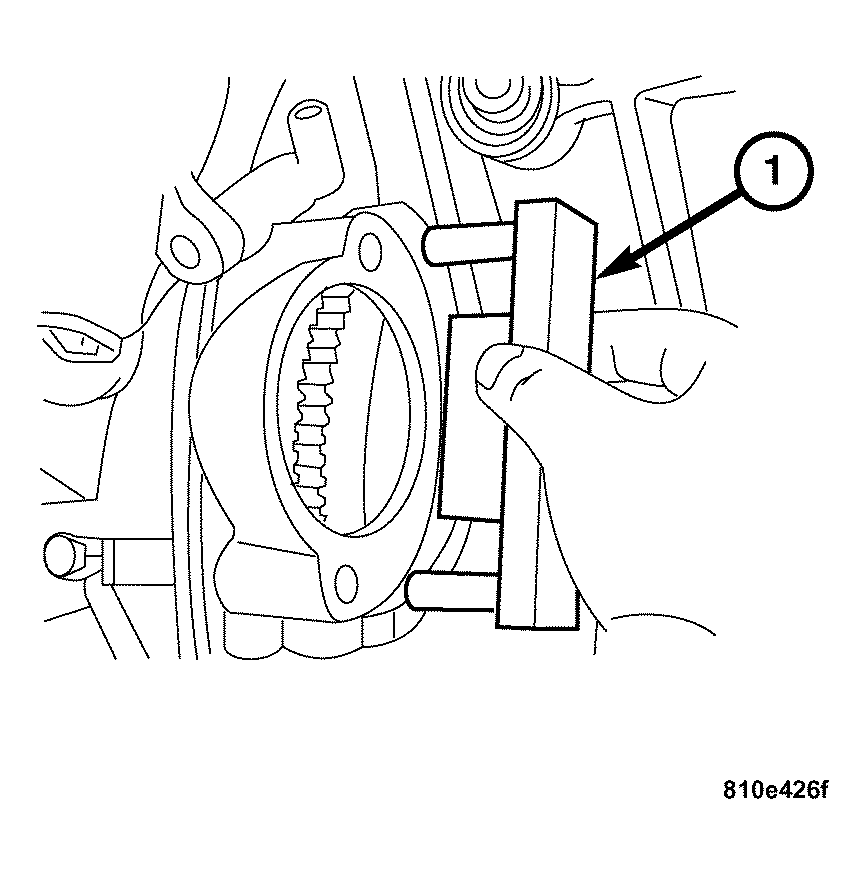

    Fig 7: Removing/Installing Special Tool 9102
    GC0034740Courtesy of DAIMLERCHRYSLER CORP.
  12. Remove the starter. (Refer to ELECTRICAL/STARTING/STARTER MOTOR - REMOVAL) .
  13. Using Special Tool 9102 (1) Flywheel Locking Tool, lock the flywheel by inserting the tool into the starter opening.

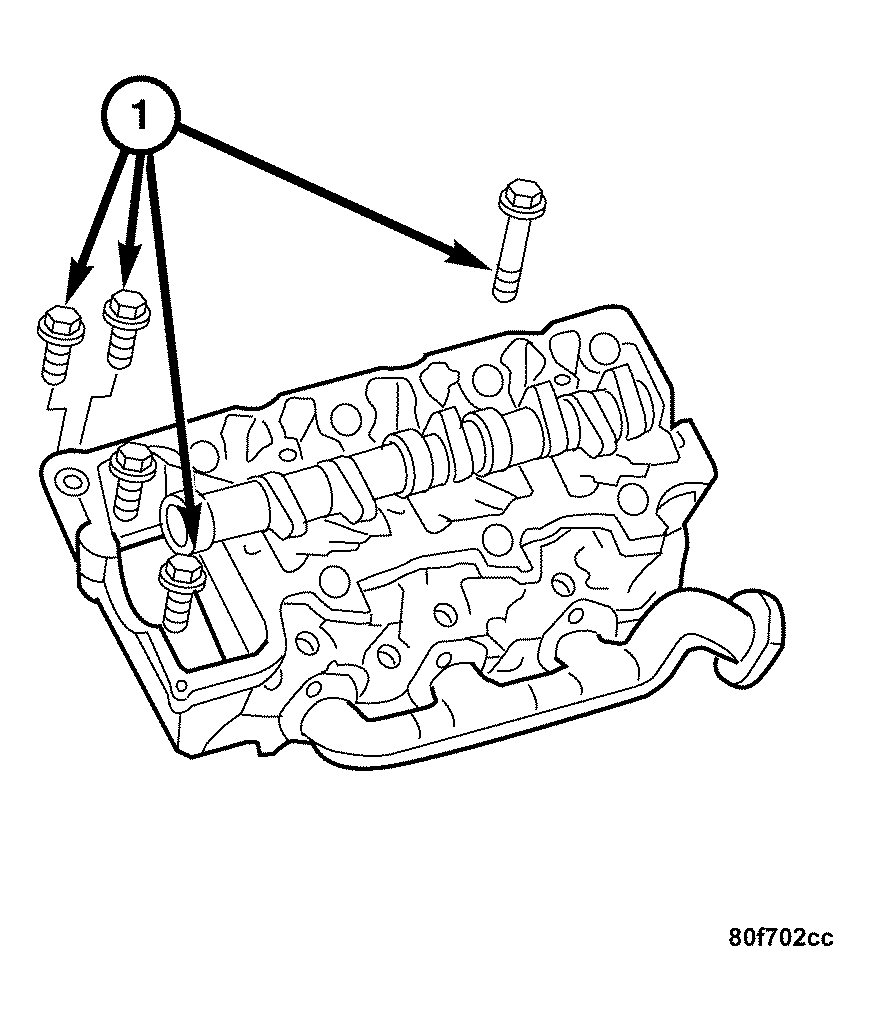

    Fig 8: Removing/Installing Cylinder Head Bolts
    GC0034752Courtesy of DAIMLERCHRYSLER CORP.
  14. Remove the cylinder head bolts (1) and remove the cylinder heads. (Refer to ENGINE/CYLINDER HEAD - REMOVAL) .
  15. Remove the timing chain tensioner. (Refer to ENGINE/VALVE TIMING/TMNG BELT/CHAIN TENSIONER&PULLEY - REMOVAL) .

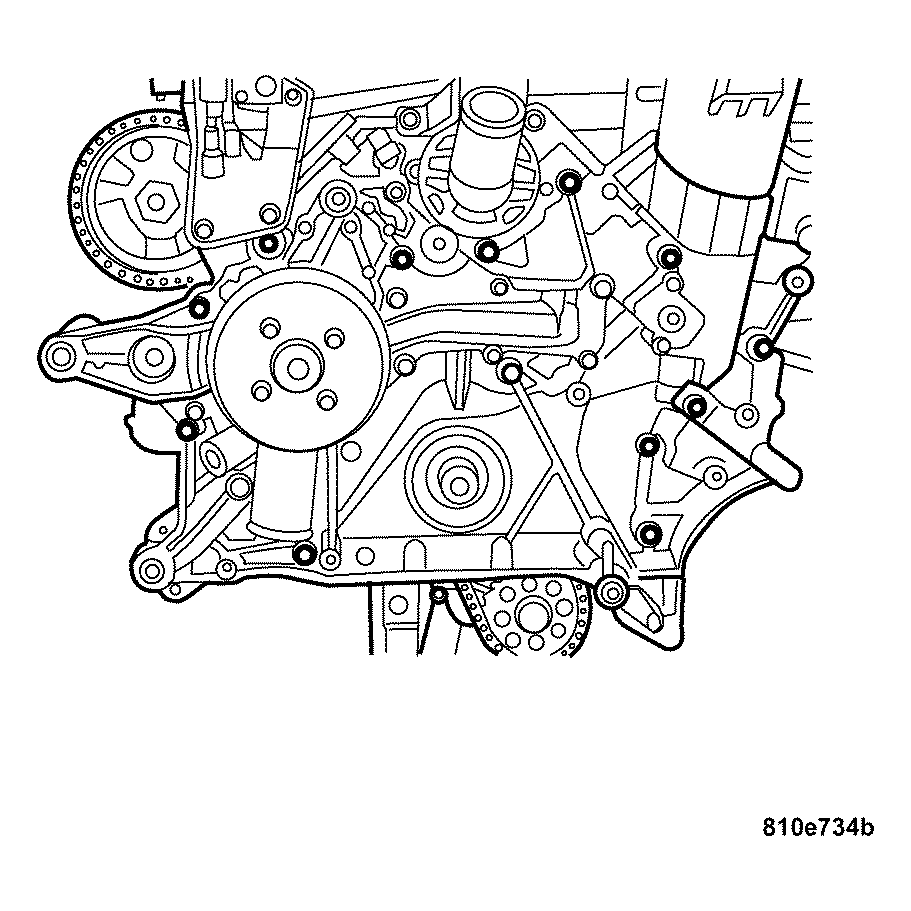

    Fig 9: Identifying Timing Chain Cover Bolts
    GC0034744Courtesy of DAIMLERCHRYSLER CORP.
  16. Remove the timing chain cover bolts as shown. Remove the timing chain cover.
