Oil Level Indicator Tube: Removal

WARNING: This page is about a different variant/trim than selected.

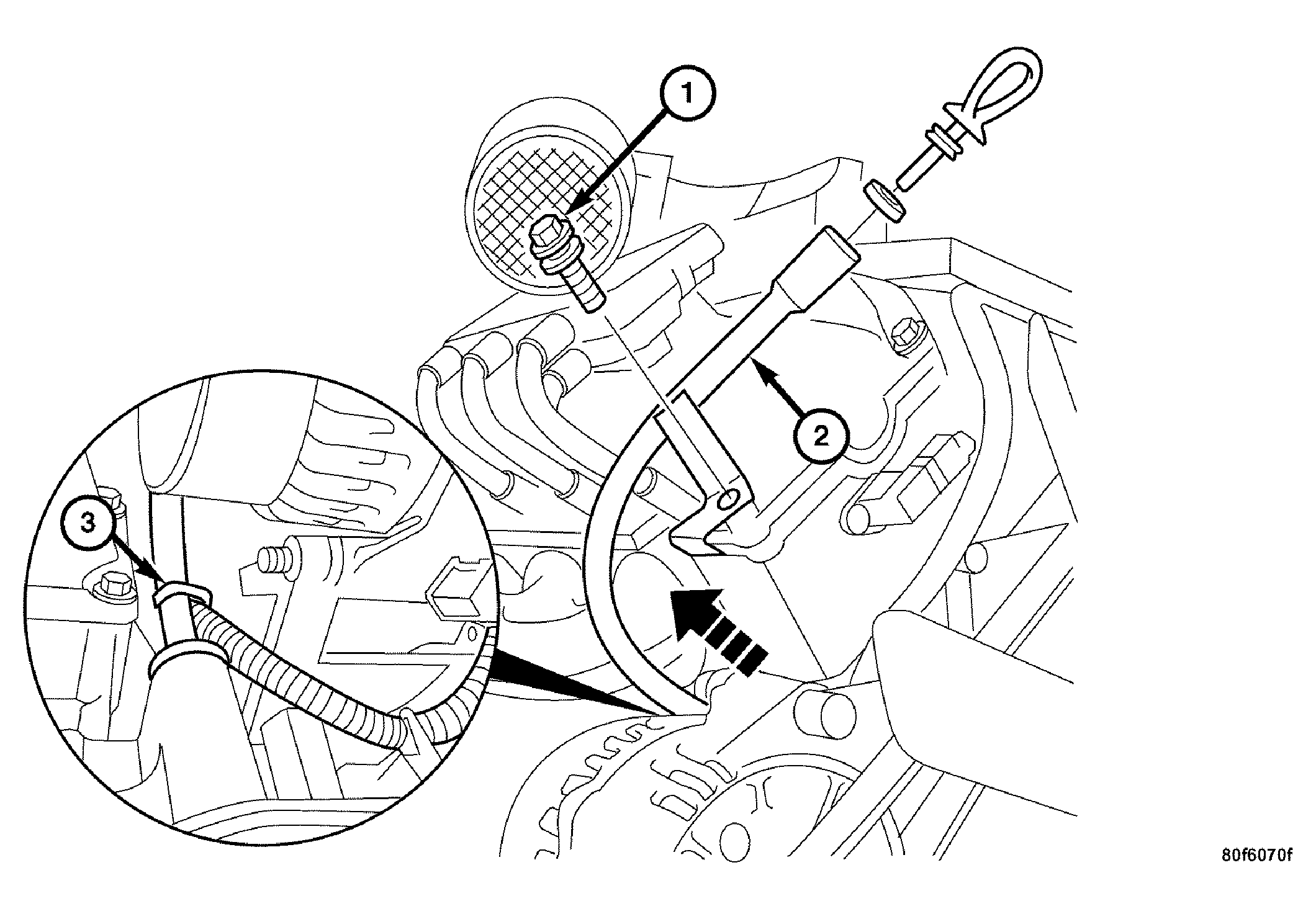

Fig 1: Removing/Installing Oil Level Indicator Tube
GC0034686Courtesy of DAIMLERCHRYSLER CORP.
1 - BOLT
2 - OIL LEVEL INDICATOR TUBE
3 - CABLE TIE STRAP
  1. Remove the air cleaner housing. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) .
  2. Remove the bolt (1) in the cylinder head cover for the oil level indicator tube (2).
  3. Remove the cable tie strap (3) holding the wire loom on the oil level indicator tube.
  4. Pull up and remove the oil level indicator tube (2) from the engine.
