Sentry Key Remote Entry Module: Installation

  1. Position the SKREEM on the ignition lock housing and install the retaining screw (Fig 2)
  2. Position the ignition switch/lock assembly up in behind the instrument panel and push rearward (Fig 1).
  3. Install the two mounting nuts to the front of the instrument panel (Fig 1).
  4. From underneath the ignition switch/lock assembly, tighten the lower retaining screw (Fig 1).

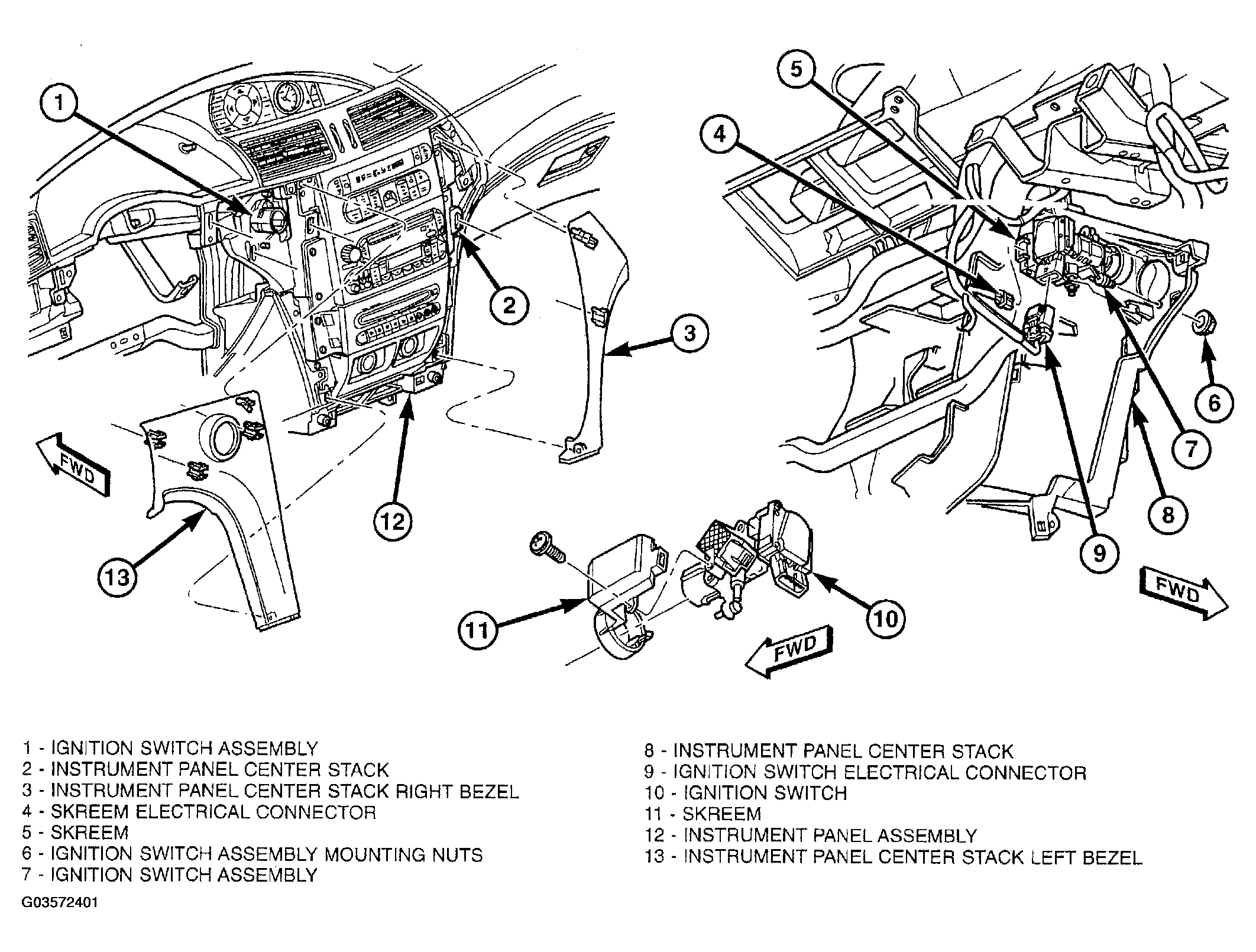

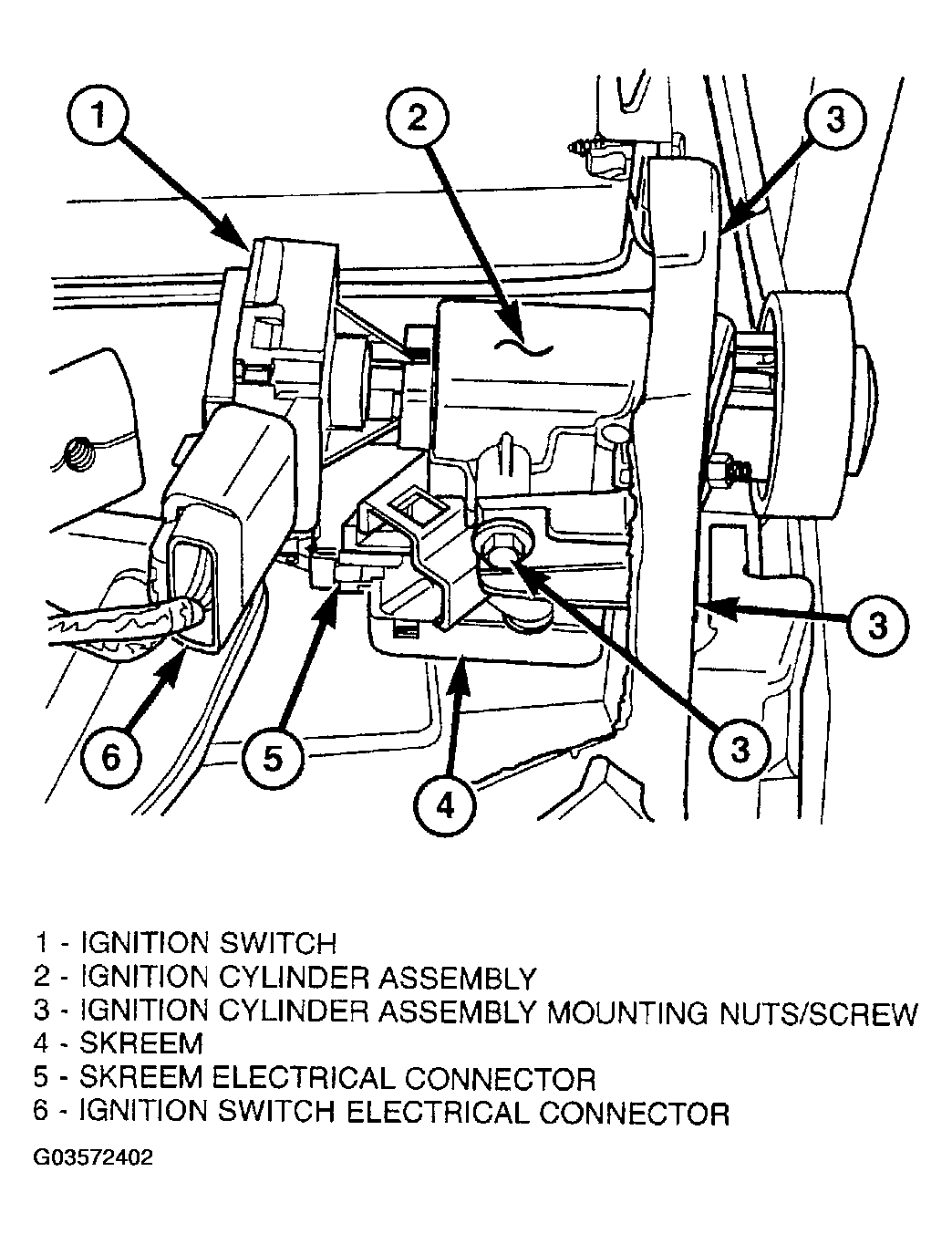

  5. Reach up behind the left side of the center stack and connect the ignition switch and SKREEM electrical connectors (Figure).
  6. Position the instrument panel center stack left bezel over retaining slots and firmly snap into place (Figure).
  7. Install the knee blocker airbag (Refer to AIR BAG RESTRAINT SYSTEMS ).
    WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. (Refer to AIR BAG RESTRAINT SYSTEMS ) FIRST.
  8. Verify vehicle and system operation.
  9. Close hood.

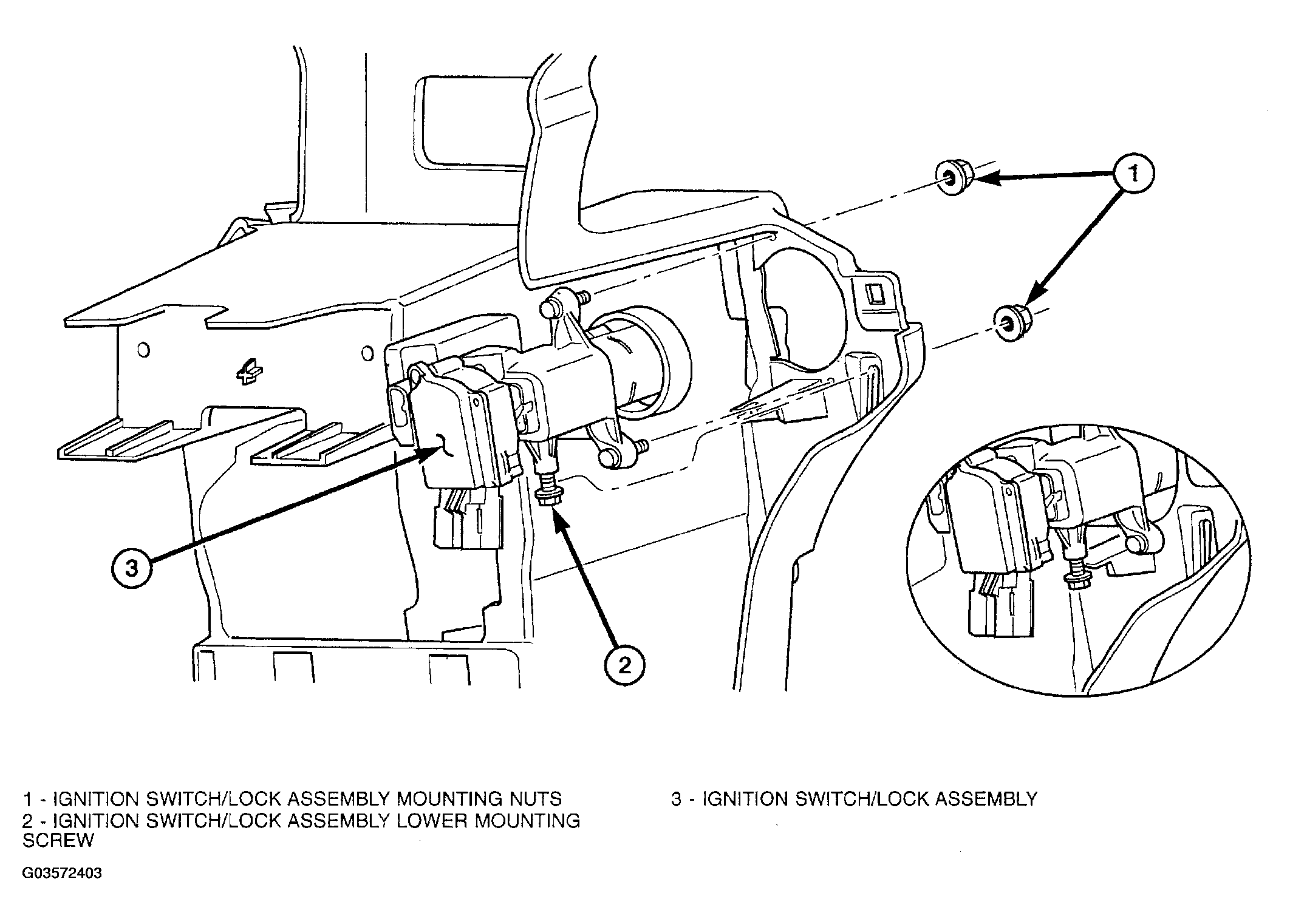

    Fig 1: Identifying SKREEM/Ignition Cylinder Mounting Component
    G03572403Courtesy of DAIMLERCHRYSLER CORP.

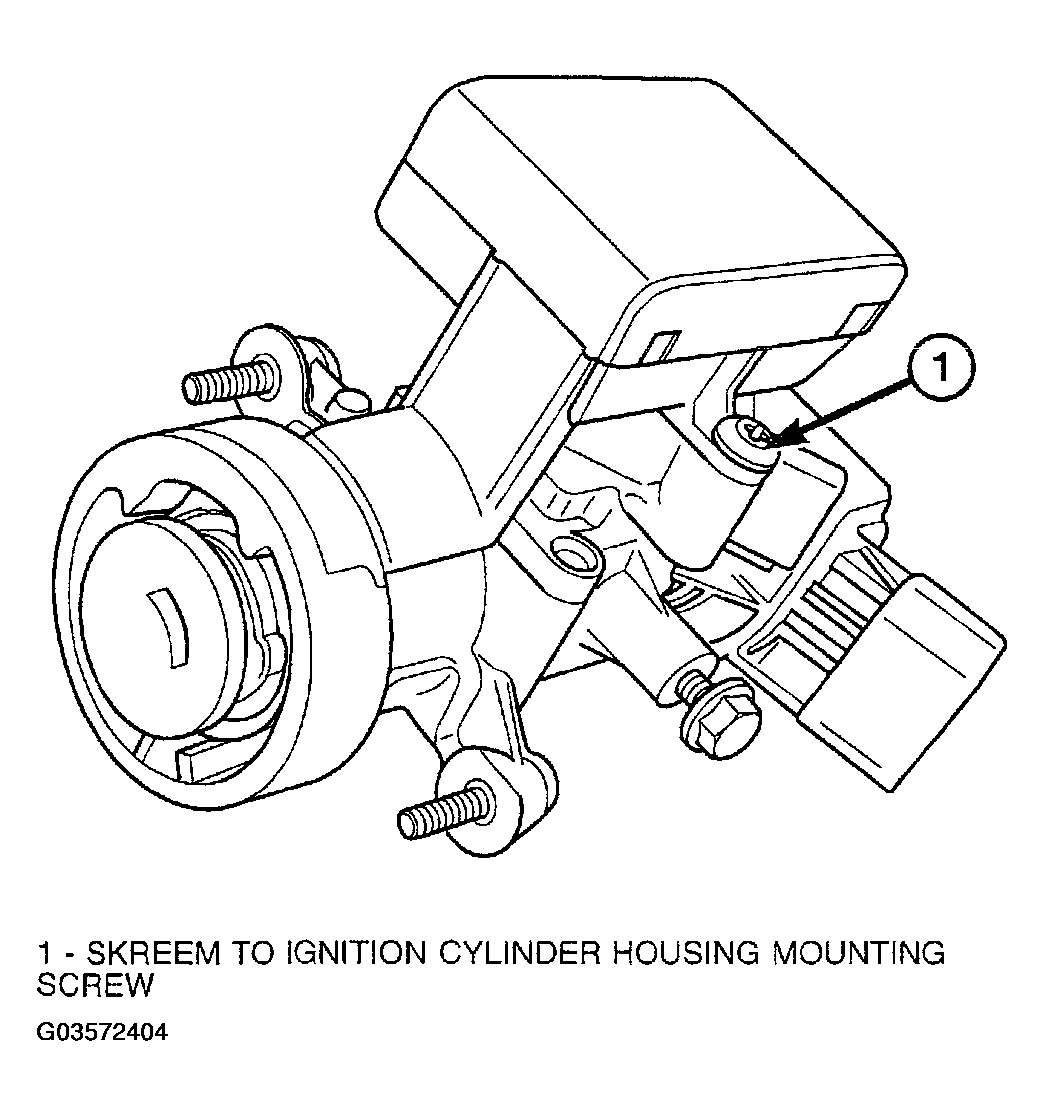

    Fig 2: Identifying SKREEM To Ignition Cylinder Housing Mounting Screw
    G03572404Courtesy of DAIMLERCHRYSLER CORP.
