Connector Identification
NOTE:
Circuit location may vary on some connectors.
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | Figure |
|---|---|
| A/C Compressor Relay | Fig 1 |
| Auto Shutdown (ASD) Relay | Fig 2 |
| Battery Temperature Sensor | Fig 3 |
| Brakelight Switch | Fig 4 |
| Clockspring 4-Pin Speed Control Connector | Fig 5 |
| Crankshaft Position (CKP) Sensor | Fig 6 |

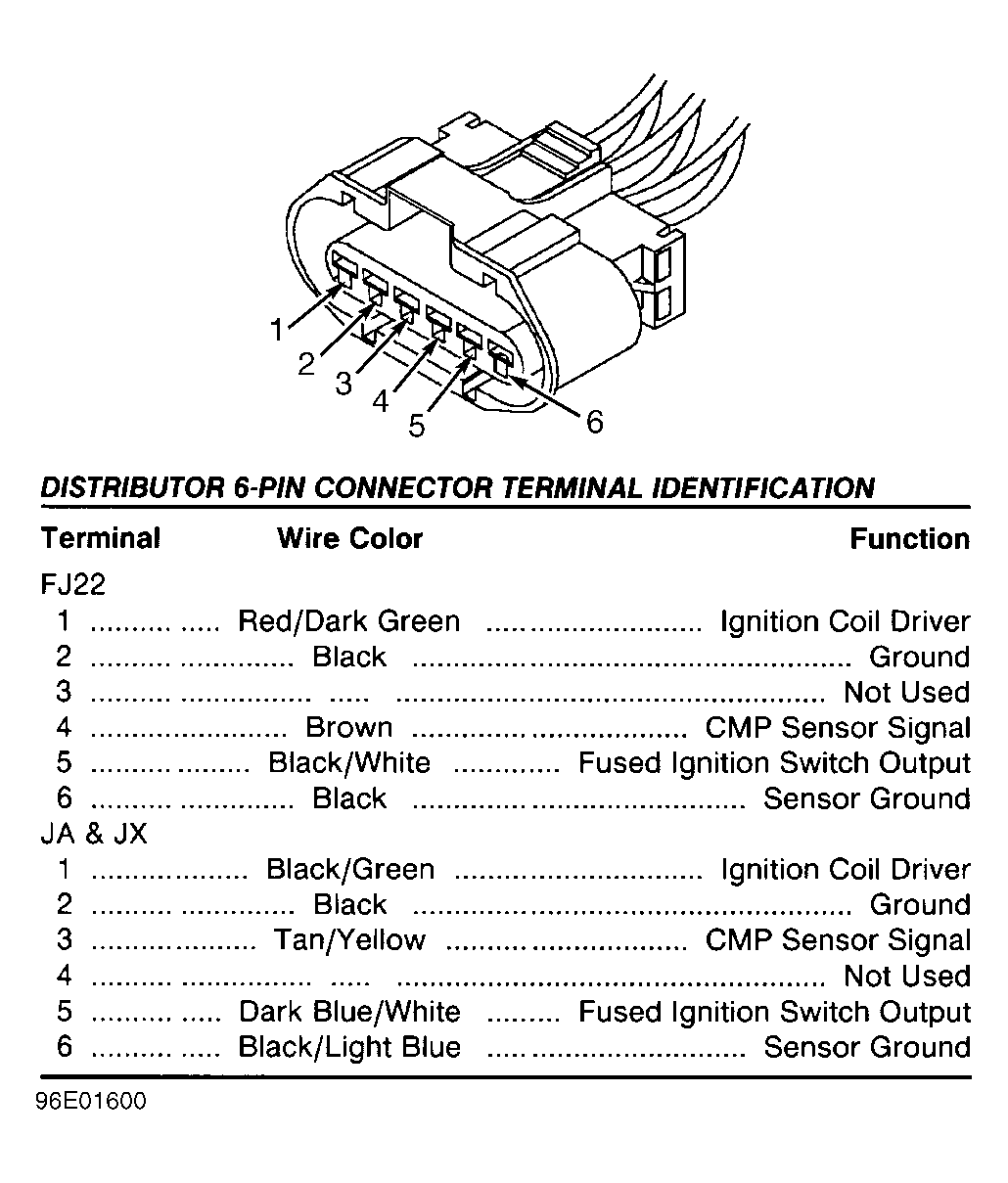

| Distributor 6-Pin | Fig 7 |
| Downstream Oxygen Sensor(O2S - Harness Side) | Fig 8 |
| Engine Coolant Temperature (ECT) Sensor | Fig 9 |
| Evaporative Solenoid | Fig 10 |
| Exhaust Gas Recirculation (EGR) Solenoid | Fig 11 |
| Fuel Pump | Fig 12 |
| Fuel Pump Relay | Fig 13 |

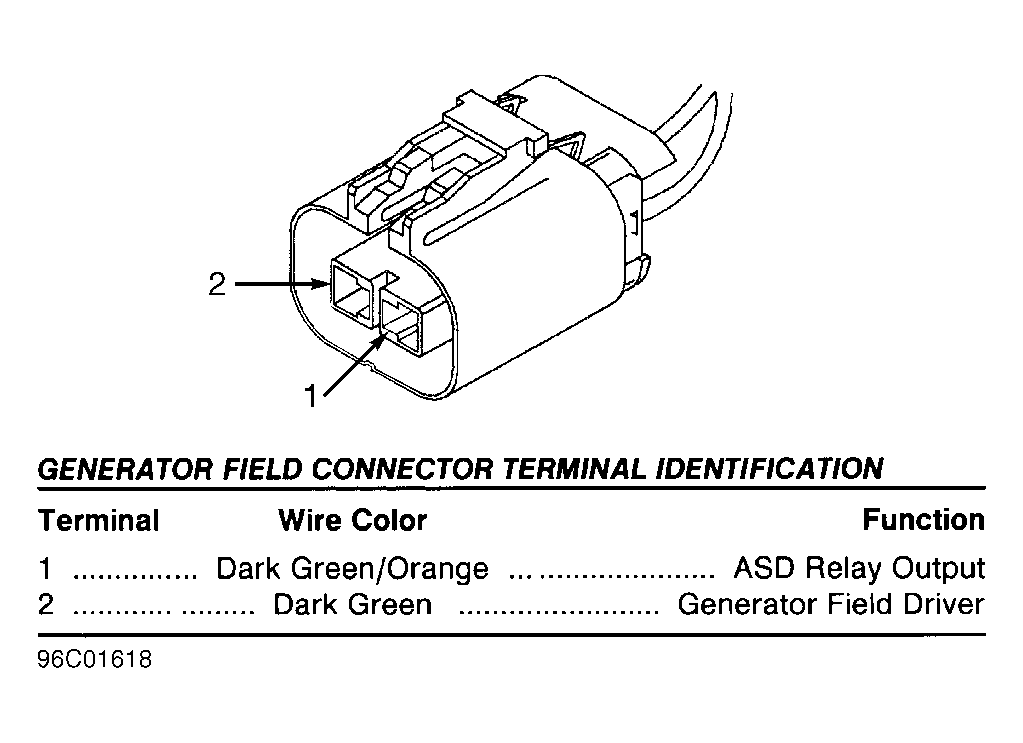

| Generator Field | Fig 14 |
| High Speed Radiator Fan Relay | Fig 15 |
| Idle Air Control (IAC) Motor | Fig 16 |
| Injector | Fig 17 |
| Injector 4-Pin Connector | Fig 18 |
| Intake Air Temperature (IAT) | Fig 19 |
| Leak Detection Pump | Fig 20 |
| Low Speed Radiator Fan Relay | Fig 21 |
| Manifold Absolute Pressure (MAP) | Fig 22 |
| Powertrain Control Module (PCM) | Fig 23 |
| Speed Control Servo | Fig 24 |
| Speed Control 2-Pin Switch | Fig 25 |
| Starter Relay | Fig 26 |
| Throttle Position (TP) Sensor | Fig 27 |
| Torque Converter Clutch (TCC) Solenoid | Fig 28 |
| Transmission Range Sensor | Fig 29 |
| Upstream Oxygen Sensor (O2S - Harness Side) | Fig 30 |
| Vehicle Speed Sensor (VSS) | Fig 31 |
| 16-Pin Data Link Connector (DLC) | Fig 32 |
