Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

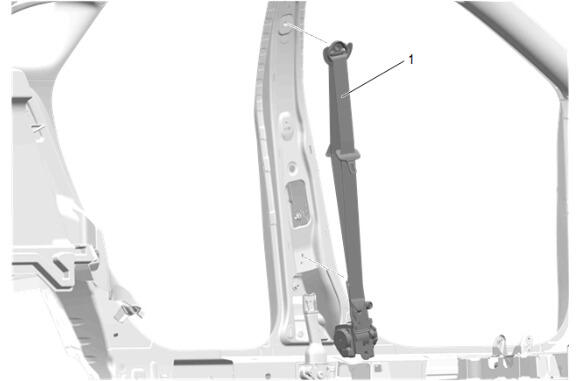

Front Seat Belt Retractor (1) - Install
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

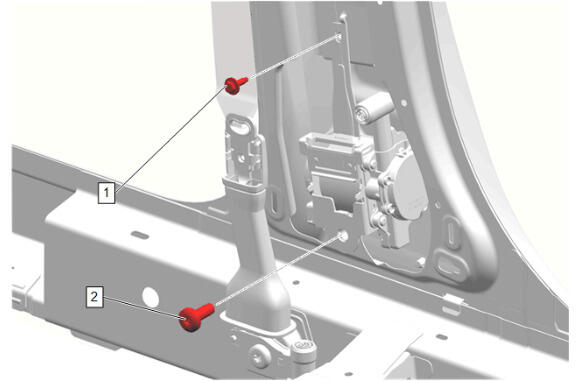

Front Seat Belt Retractor Bolt - Lower (2) - Install and tighten - Fastener Specifications
Front Seat Belt Retractor Bolt - Middle (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

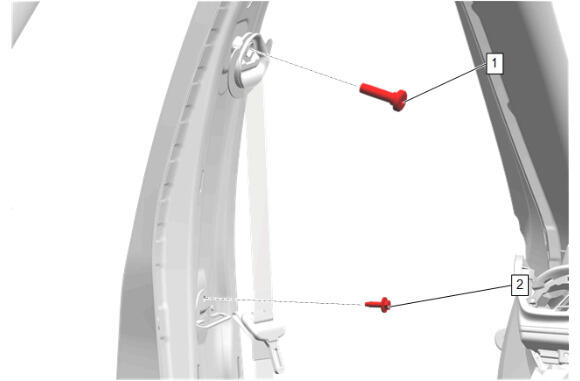

Front Seat Belt Retractor Bolt - Upper (2) - Install and tighten - Fastener Specifications
Front Seat Belt Retractor D Ring Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When replacing the center pillar upper trim panel, feed the seat belt through the panel.

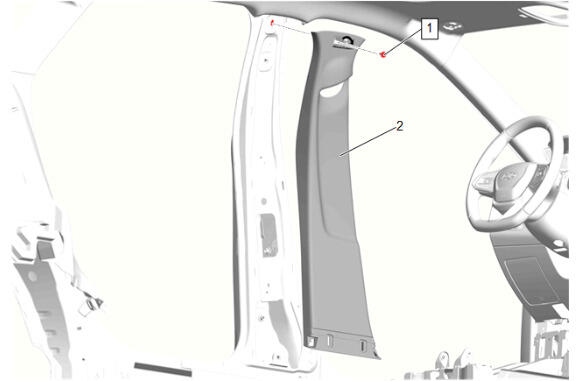

Center Pillar Upper Trim Panel (2) - Install
Center Pillar Upper Garnish Molding Bolt (1) - Install and tighten - Fastener Specifications
Close the center pillar upper trim panel bolt cap.
Courtesy of GENERAL MOTORS COMPANY

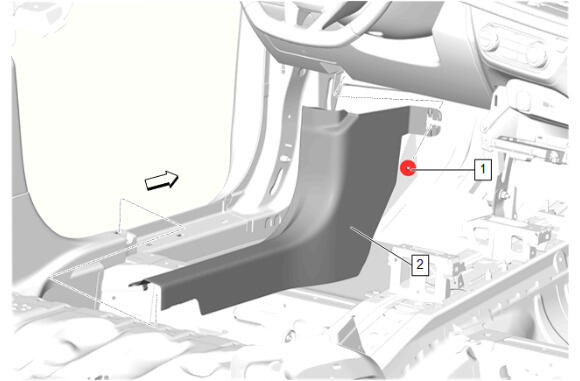

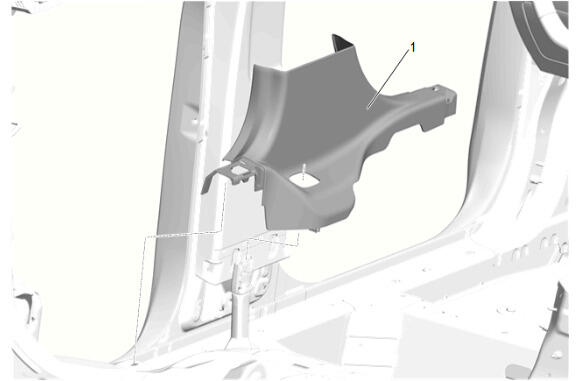

Center Pillar Lower Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

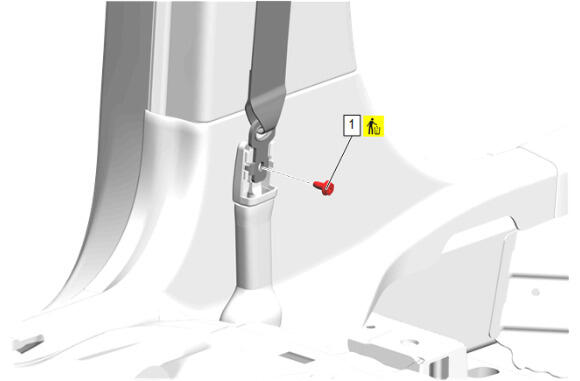

Front Seat Belt Anchor Plate Tensioner Bolt - Upper (1) - Install NEW and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

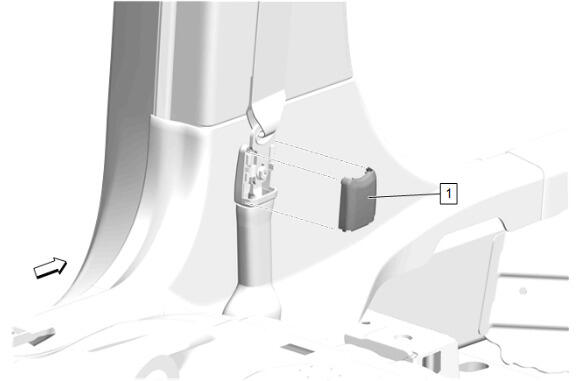

Front Seat Belt Anchor Plate Tensioner Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Sill Garnish Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Inspect each high retention retainer and sheet metal interface for flushness. Replace retainer as required if damage occurs during removal.
When installing new plastic retainers on the front of the seat, ONLY seat the retainer to the first click, otherwise the insertion force into the sheet metal will be greatly increased.

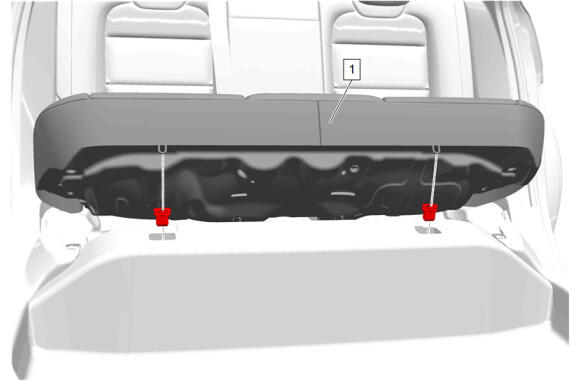

Rear Seat Cushion (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Sill Garnish Molding (2) - Install
Front Side Door Sill Trim Plate Clip (1) - Install
Enable the SIR System. SIR Disabling and Enabling
