Fastener Specifications

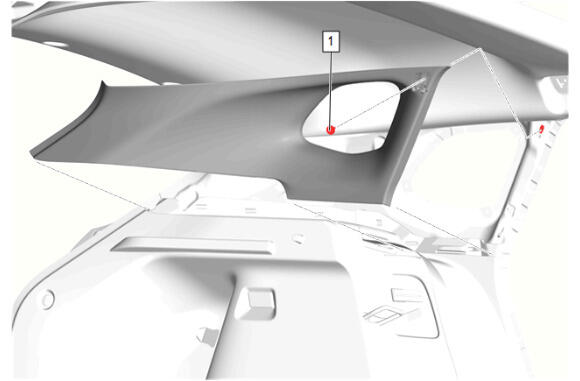

GM5949237Courtesy of GENERAL MOTORS COMPANY
Body Lock Pillar Upper Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Quarter Window Trim Finish Panel Bolt - - 2.5 N.m (22 lb in) Body Lock Pillar Upper Trim Panel Replacement

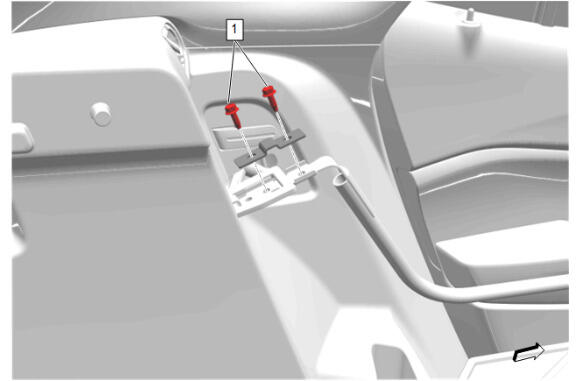

GM6319252Courtesy of GENERAL MOTORS COMPANY
Cargo Partition Rail Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Compartment Panel Bolt [2x] - - 9 N.m (80 lb in) Rear Compartment Panel Reinforcement Replacement

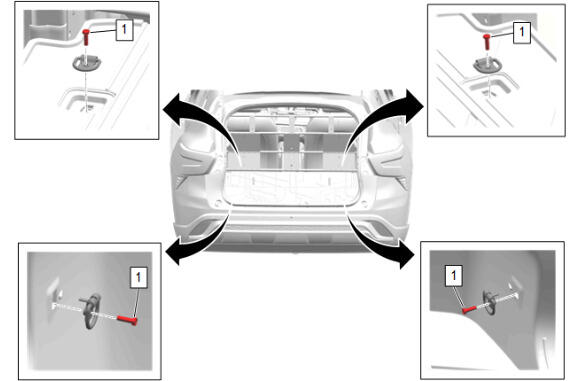

GM6319238Courtesy of GENERAL MOTORS COMPANY
Cargo Tie Down Loop

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cargo Tie Down Loop Bolt [4x] - - 9 N.m (80 lb in) Cargo Tie Down Loop Replacement (- K1T) , or Cargo Tie Down Loop Replacement (K1T)

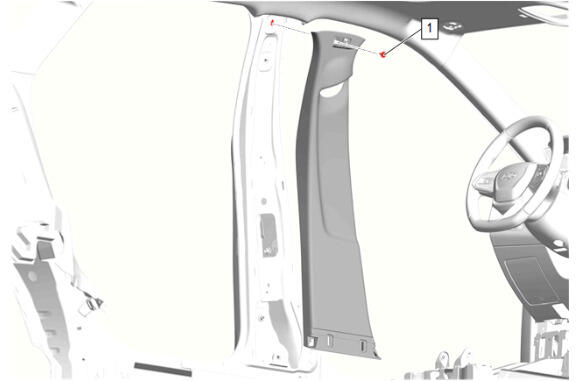

GM5949239Courtesy of GENERAL MOTORS COMPANY
Center Pillar Upper Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Center Pillar Upper Garnish Molding Bolt - - 2.5 N.m (22 lb in) Center Pillar Upper Trim Panel Replacement (- K1T) , or Center Pillar Upper Trim Panel Replacement (K1T)

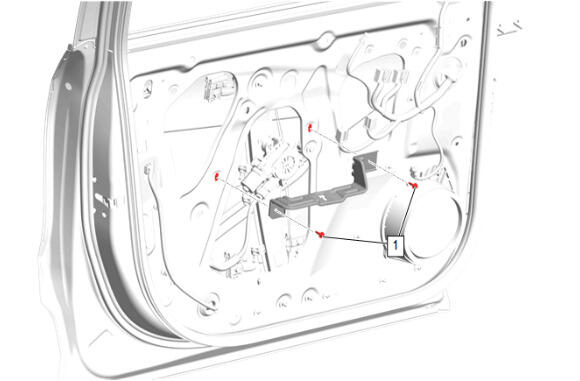

GM5949240Courtesy of GENERAL MOTORS COMPANY
Front Side Door Armrest Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Armrest Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Armrest Bracket Replacement

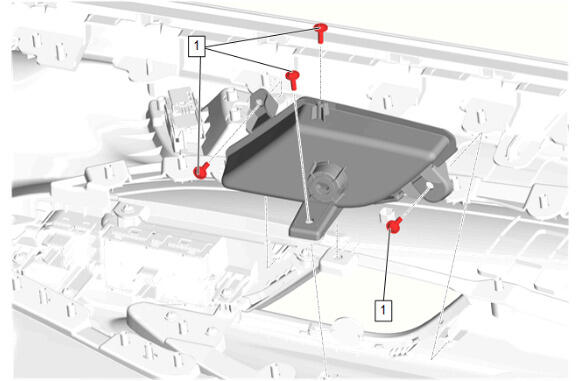

GM6181116Courtesy of GENERAL MOTORS COMPANY
Front Side Door Armrest Pull Cup

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt @ Front Side Door Armrest Pull Cup [4x] - - 0.8 N.m (7 lb in) Front Side Door Armrest Pull Cup Replacement

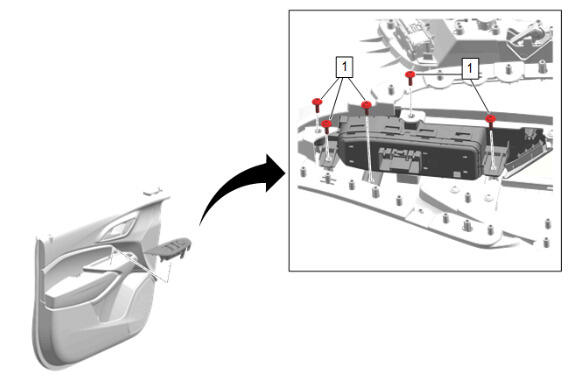

GM6181113Courtesy of GENERAL MOTORS COMPANY
Front Side Door Armrest Switch Mount Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt @ Front Side Door Armrest Switch Mount Plate [5x] - - 0.8 N.m (7 lb in) Front Side Door Armrest Switch Mount Plate Replacement - Driver Side
Front Side Door Armrest Switch Mount Plate Replacement - Passenger Side

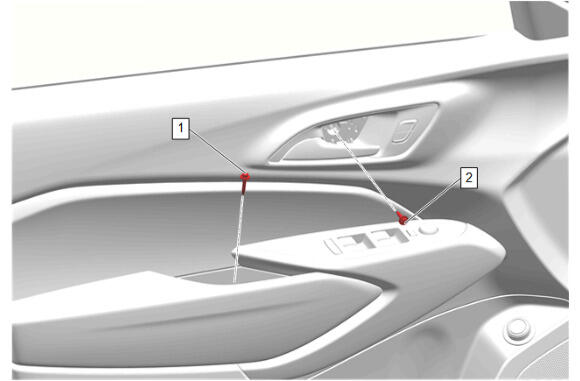

GM5949242Courtesy of GENERAL MOTORS COMPANY
Front Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Inside Handle Bolt - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation
2 Front Side Door Armrest Pull Cup Bolt - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation

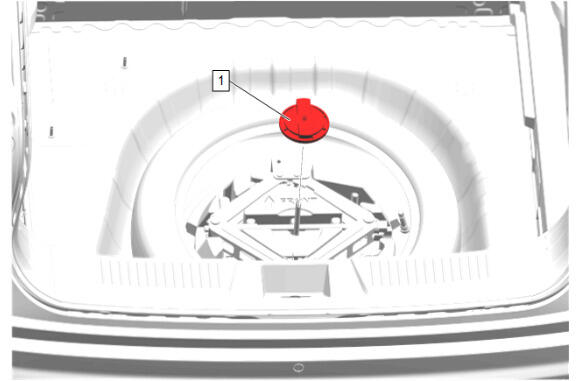

GM5949249Courtesy of GENERAL MOTORS COMPANY
Jack Stowage Container

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Jack and Tool Stowage Bracket Nut - - 4 N.m (35 lb in) Jack Stowage Container Replacement (- K1T)

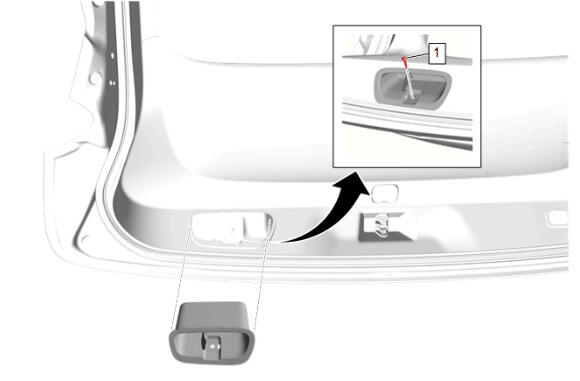

GM5949243Courtesy of GENERAL MOTORS COMPANY
Liftgate Trim Finish Panel Pull Cup

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Lower Trim Finish Panel Bolt - - 2.5 N.m (22 lb in) Liftgate Trim Finish Panel Pull Cup Replacement

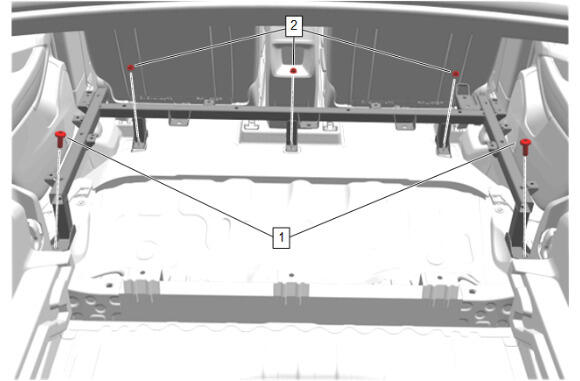

GM6319286Courtesy of GENERAL MOTORS COMPANY
Load Floor Panel Frame - Front

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Load Floor Panel Frame Bolt [2x] - - 45 N.m (33 lb ft) Load Floor Panel Frame Replacement - Front Side
2 Load Floor Panel Frame Nut [3x] - - 22 N.m (16 lb ft) Load Floor Panel Frame Replacement - Front Side

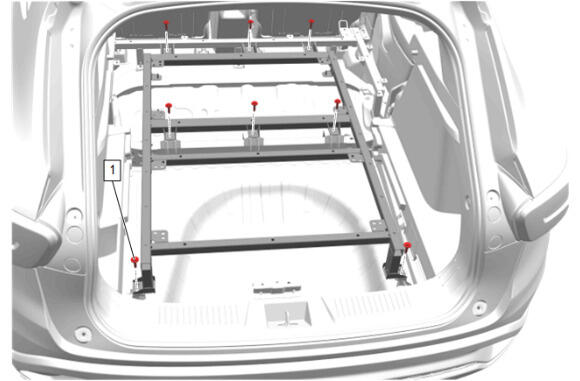

GM6319285Courtesy of GENERAL MOTORS COMPANY
Load Floor Panel Frame - Rear

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Load Floor Panel Frame Bolt [8x] - - 22 N.m (16 lb ft) Load Floor Panel Frame Replacement - Rear Side

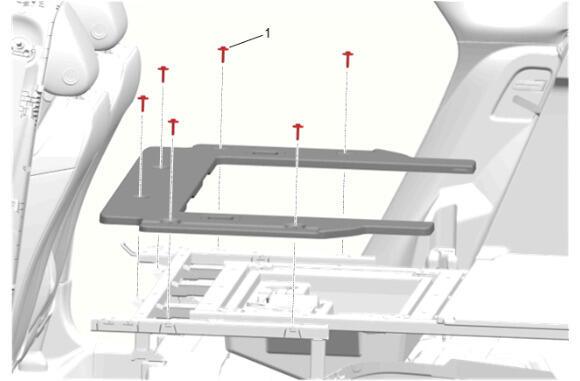

GM6319250Courtesy of GENERAL MOTORS COMPANY
Load Floor Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Compartment Floor Stowage Compartment Bracket Bolt [6x] - - 3 N.m (27 lb in) Load Floor Trim Panel Replacement (K1T)
GM5949244Courtesy of GENERAL MOTORS COMPANY
Luggage Shade Pivot

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Window Side Garnish Molding Bolt - - 1.5 N.m (13 lb in) Luggage Shade Pivot Replacement

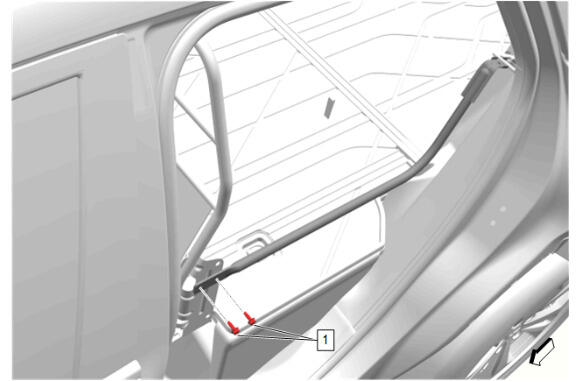

GM6319254Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Panel Reinforcement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Compartment Panel Bolt [2x] - - 9 N.m (80 lb in) Rear Compartment Panel Reinforcement Replacement

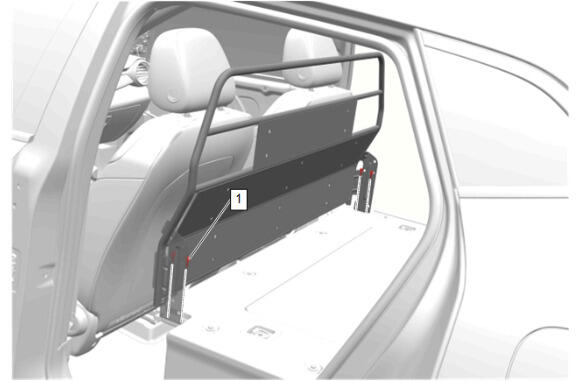

GM6319259Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Partition Upper Rail

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Compartment Panel Bolt [4x] - - 9 N.m (80 lb in) Rear Compartment Partition Upper Rail Replacement (K1T)

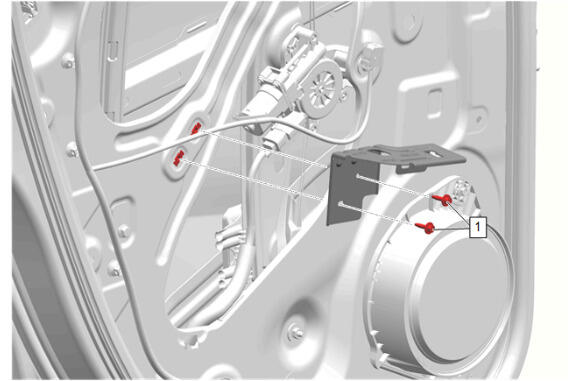

GM5949245Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Armrest Pull Cup Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Pull Cup Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Rear Side Door Armrest Pull Cup Bracket Replacement

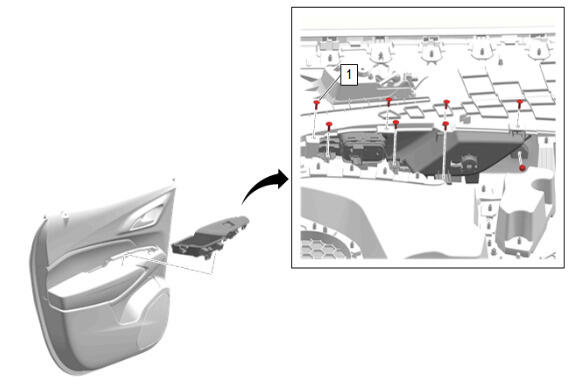

GM6181115Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Armrest Switch Mount Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Trim Bolt [8x] - - 0.8 N.m (7 lb in) Rear Side Door Armrest Switch Mount Plate Replacement

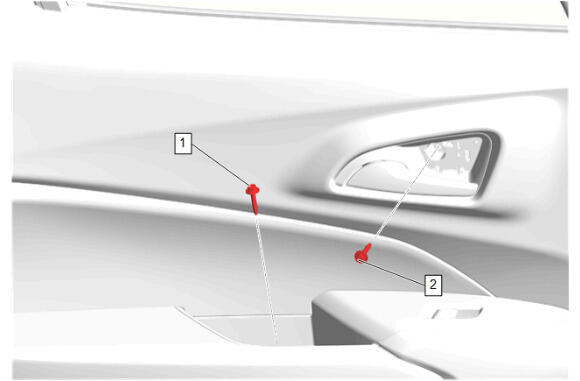

GM5949252Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Inside Handle Bolt - - 2.5 N.m (22 lb in) Rear Side Door Trim Removal and Installation
2 Rear Side Door Armrest Pull Cup Bolt - - 2.5 N.m (22 lb in) Rear Side Door Trim Removal and Installation

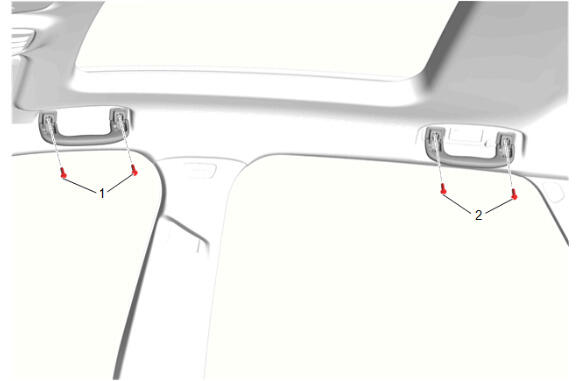

GM5949247Courtesy of GENERAL MOTORS COMPANY
Roof Rail Assist Handle, Roof Rail Rear Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Rail Assist Handle Bolt [2x] - - 6 N.m (53 lb in) Roof Rail Assist Handle Replacement - Front
2 Roof Rail Rear Assist Handle Bolt [2x] - - 6 N.m (53 lb in) Roof Rail Rear Assist Handle Replacement

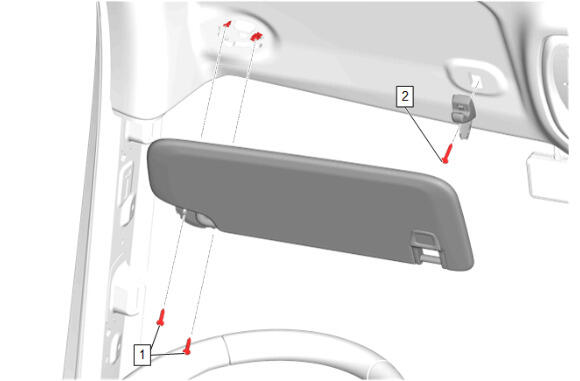

GM5949248Courtesy of GENERAL MOTORS COMPANY
Sunshade, Sunshade Support

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Sunshade Bolt [2x] - - 2.5 N.m (22 lb in) Sunshade Replacement (CAC) , or Sunshade Replacement (- CAC) , or Sunshade Replacement (K1T - CAC)
2 Sunshade Support Bolt - - 2 N.m (18 lb in) Sunshade Support Replacement

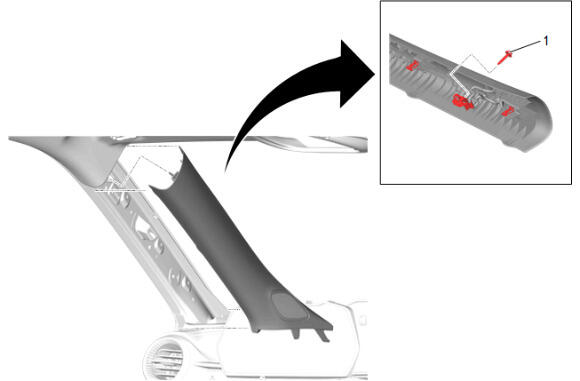

GM5949251Courtesy of GENERAL MOTORS COMPANY
Windshield Garnish Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Garnish Molding Bolt - - 2.5 N.m (22 lb in) Windshield Garnish Molding Replacement
