Fastener Specifications

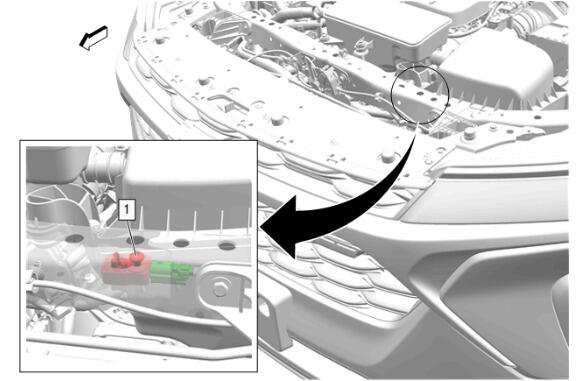

GM5949551Courtesy of GENERAL MOTORS COMPANY
Airbag Front End Discriminating Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Front End Discriminating Sensor - - 7.5 N.m (66 lb in) Airbag Front End Discriminating Sensor Replacement - Left Side
Airbag Front End Discriminating Sensor Replacement - Right Side

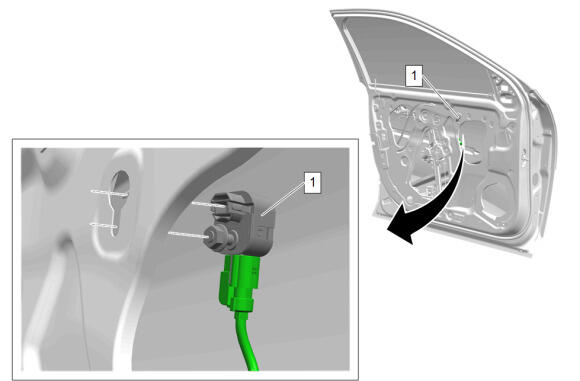

GM6173991Courtesy of GENERAL MOTORS COMPANY
Airbag Side Impact Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Side Impact Sensor - - 7.5 N.m (66 lb in) Airbag Side Impact Sensor Replacement

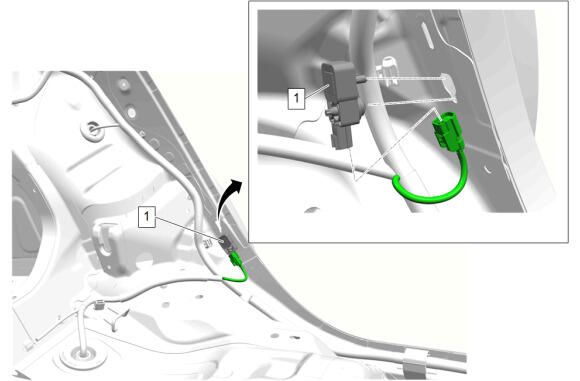

GM6173998Courtesy of GENERAL MOTORS COMPANY
Airbag Side Impact Rear Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Side Impact Rear Sensor - - 7.5 N.m (66 lb in) Airbag Side Impact Rear Sensor Replacement (Left Side) , or Airbag Side Impact Rear Sensor Replacement (Right Side) , or Airbag Side Impact Rear Sensor Replacement (Left Side) , or Airbag Side Impact Rear Sensor Replacement (Right Side)

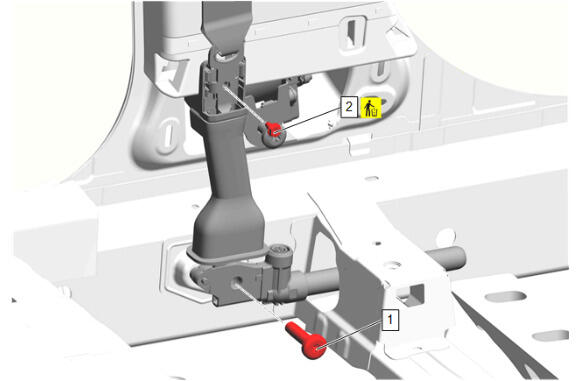

GM5949556Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Anchor Plate Tensioner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Anchor Plate Tensioner Bolt - Lower - - 45 N.m (33 lb ft) Front Seat Belt Anchor Plate Tensioner Replacement
2 Front Seat Belt Anchor Plate Tensioner Bolt - Upper Yes Yes 5 N.m (44 lb in) Front Seat Belt Anchor Plate Tensioner Replacement

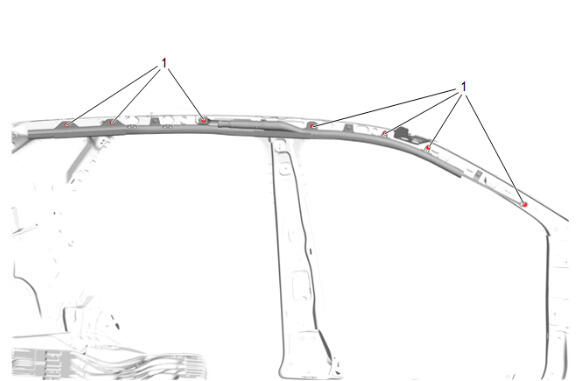

GM5949553Courtesy of GENERAL MOTORS COMPANY
Front and Rear Row Seat Roof Rail Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front and Rear Row Seat Roof Rail Airbag Bolt [7x] - - 9 N.m (80 lb in) Front and Rear Row Roof Rail Airbag Replacement (CAC) , or Front and Rear Row Roof Rail Airbag Replacement (- CAC)

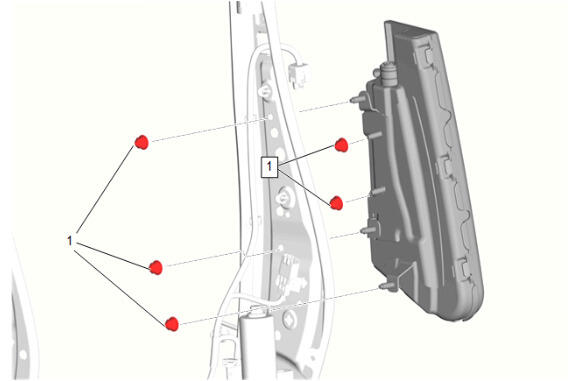

GM6000964Courtesy of GENERAL MOTORS COMPANY
Front Seat Outboard Seat Back Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Outboard Seat Back Airbag Nut [5x] - - 7 N.m (62 lb in) Front Seat Outboard Seat Back Airbag Replacement

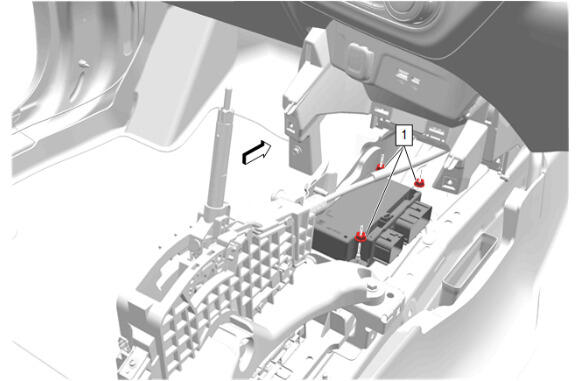

GM5949554Courtesy of GENERAL MOTORS COMPANY
Restraints Control Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Sensing and Diagnostic Module Nut [3x] - - 9 N.m (80 lb in) Restraints Control Module Replacement

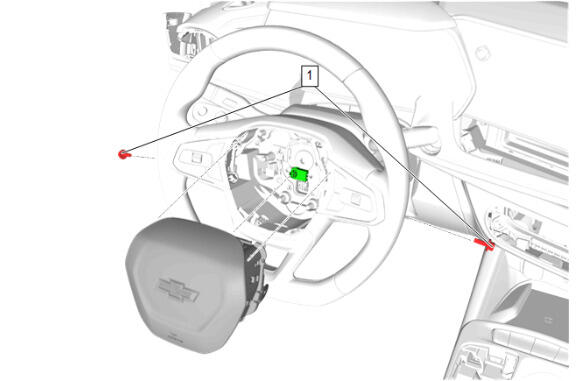

GM5949552Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Airbag Bolt [2x] - - 9 N.m (80 lb in) Steering Wheel Airbag Replacement
