Installation Procedure

CAUTION:

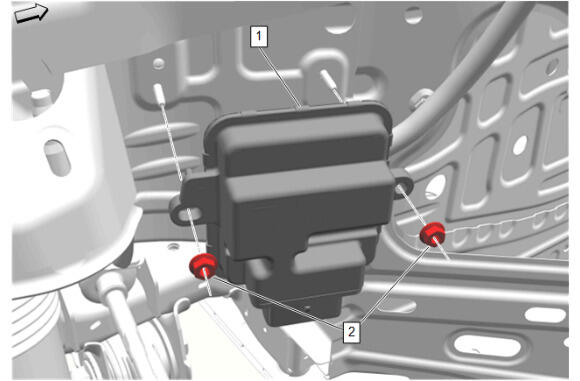

Trailer Brake Power Control Module Nut (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

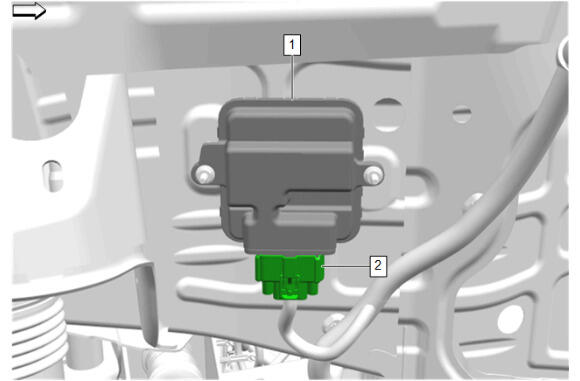

Electrical Connector (2) @ Trailer Brake Control Module (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Rear Wheelhouse Liner - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

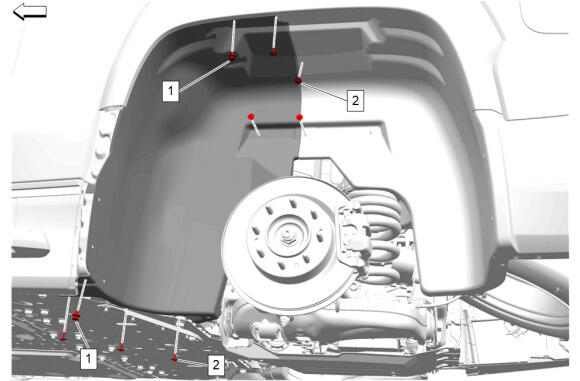

Rear Wheelhouse Liner Bolt - Right Side (2) - Install and tighten [7x] - Fastener Specifications
Rear Wheelhouse Liner Retainer - Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

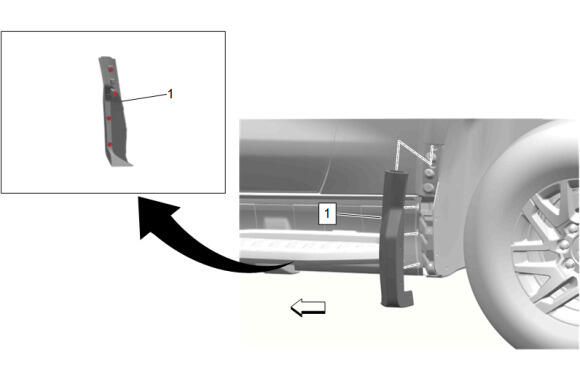

Rear Tire Front Air Deflector - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

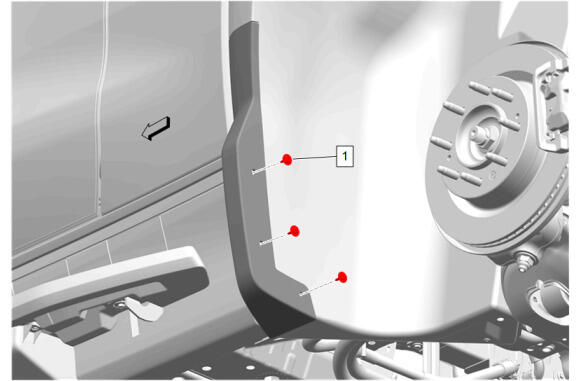

Rear Tire Front Air Deflector Bolt - Right Side (1) - Install and tighten [3x] - Fastener Specifications
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
