Fastener Specifications

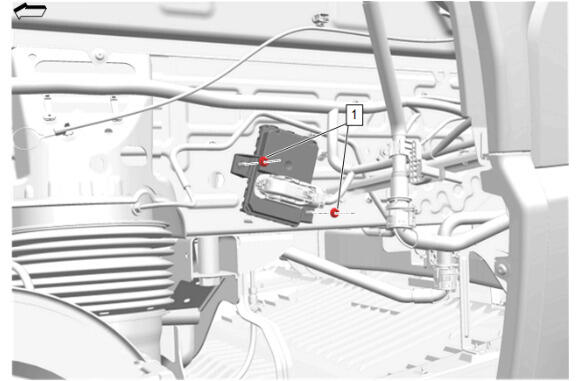

Trailer Brake Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Trailer Brake Power Control Module Nut [2x] | - | - | 9 N.m (80 lb in) | Trailer Brake Control Module Replacement |

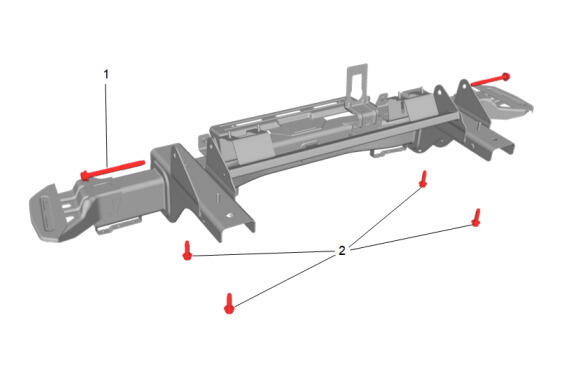

Trailer Hitch Platform
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Trailer Hitch Platform Bolt [2x] | - | - | First Pass: 150 N.m (111 lb ft) Final Pass: 45 degrees - 60 degrees |
Trailer Hitch Platform Replacement |
| 2 | Trailer Hitch Platform Bolt [4x] | - | - | 160 N.m (118 lb ft) | Trailer Hitch Platform Replacement |

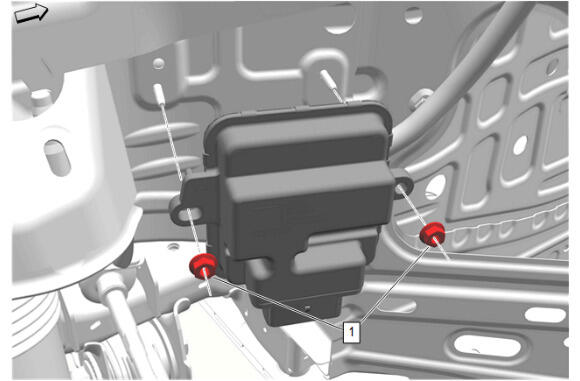

Trailer Lamp Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Trailer Lamp Control Module Bracket Nut [2x] | - | - | 9 N.m (80 lb in) | Trailer Lamp Control Module Replacement |
Trailer Tire Pressure Indicator Sensor Replacement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Tire Pressure Indicator Sensor Nut | - | - | 9 N.m (80 lb in) | Trailer Tire Pressure Indicator Sensor Replacement |
