Fastener Specifications

GM6318836Courtesy of GENERAL MOTORS COMPANY

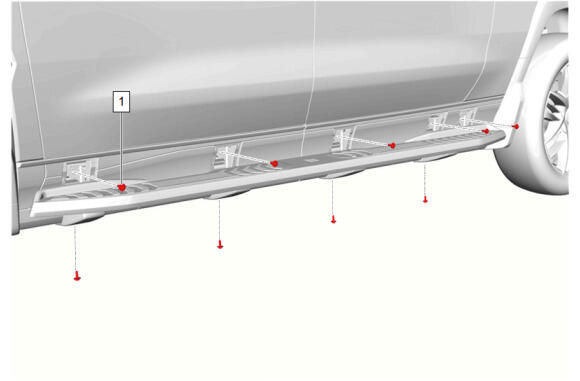

Assist Step (BVE)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Assist Step Bolt [9x] - - 22 N.m (16 lb ft) Assist Step Replacement (BVE)

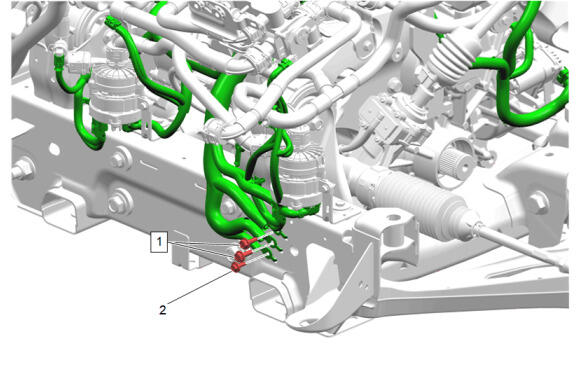

GM6334485Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Wiring Harness Ground Bolt [2x] - - 22 N.m (16 lb ft) Front Cradle Replacement
2 Engine Wiring Harness Bolt - - 9 N.m (80 lb in) Front Cradle Replacement

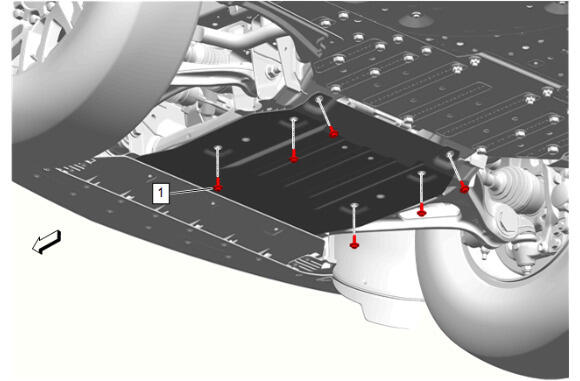

GM6230801Courtesy of GENERAL MOTORS COMPANY
Front Compartment Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Compartment Air Deflector Bolt [6x] - - 22 N.m (16 lb ft) Front Compartment Air Deflector Replacement

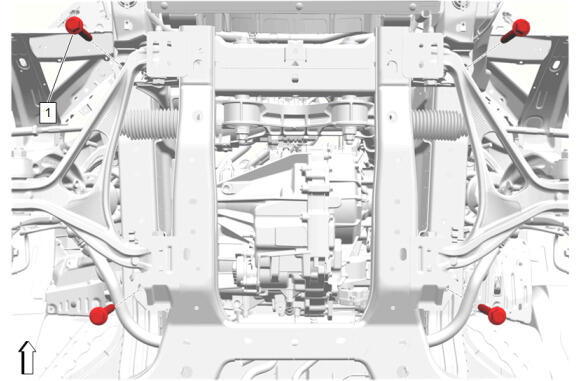

GM6326583Courtesy of GENERAL MOTORS COMPANY
Front Cradle

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drivetrain and Front Suspension Cradle Bolt - - First Pass: 240 N.m (177 lb ft)
Final Pass: 30 degrees - 45 degrees		 Front Cradle Removal and Installation (FE2) , or Front Cradle Removal and Installation (F47)

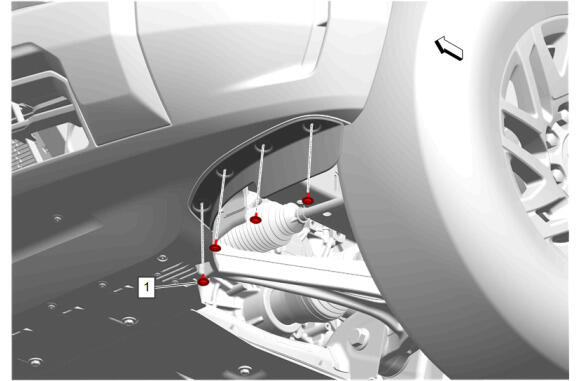

GM6245535Courtesy of GENERAL MOTORS COMPANY
Front Tire Front Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Tire Front Air Deflector Bolt [4x] - - 2.5 N.m (22 lb in) Front Tire Front Air Deflector Replacement

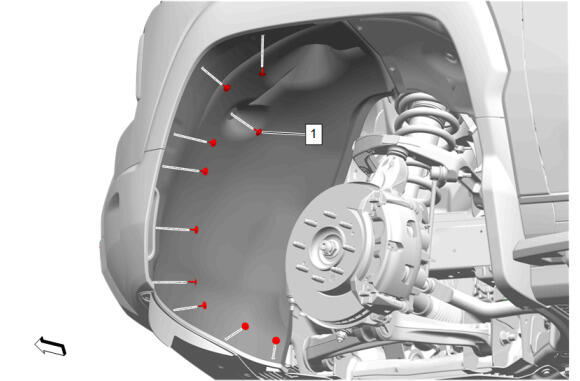

GM6281796Courtesy of GENERAL MOTORS COMPANY
Front Wheelhouse Front Liner

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheelhouse Liner Bolt [10x] - - 2.5 N.m (22 lb in) Front Wheelhouse Front Liner Replacement

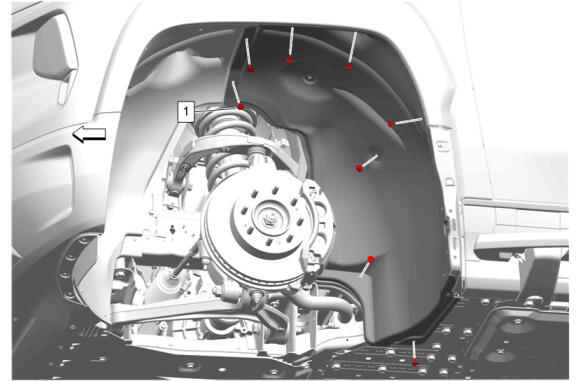

GM6286560Courtesy of GENERAL MOTORS COMPANY
Front Wheelhouse Rear Liner

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheelhouse Liner Bolt [8x] - - 2.5 N.m (22 lb in) Front Wheelhouse Rear Liner Replacement

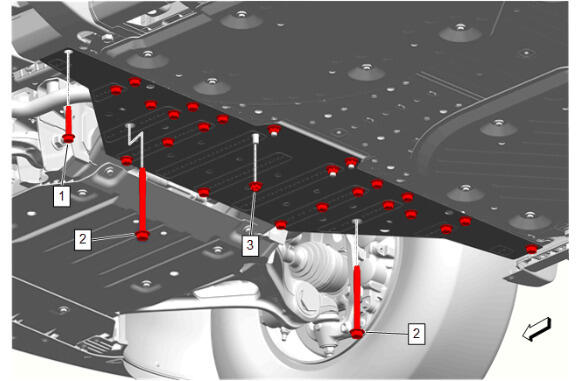

GM6242093Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Tray Lower Front Reinforcement

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Voltage Battery Tray Reinforcement Bolt [21x] - - 160 N.m (118 lb ft) High Voltage Battery Tray Lower Front Reinforcement Replacement
2 High Voltage Battery Tray Reinforcement Bolt [2x] - - 240 N.m (177 lb ft) High Voltage Battery Tray Lower Front Reinforcement Replacement
3 High Voltage Battery Tray Reinforcement Nut [4x] - - 100 N.m (74 lb ft) High Voltage Battery Tray Lower Front Reinforcement Replacement

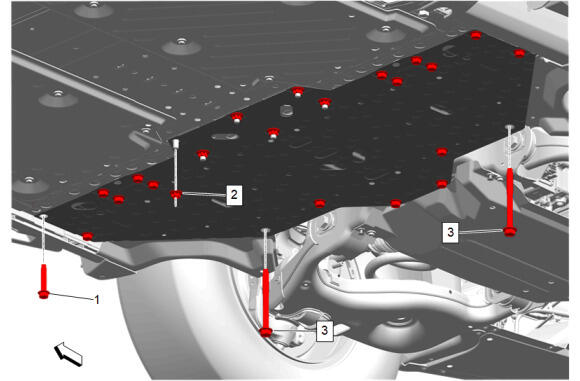

GM6248425Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Tray Lower Rear Reinforcement

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Voltage Battery Tray Reinforcement Bolt [16] - - 160 N.m (118 lb ft) High Voltage Battery Tray Lower Rear Reinforcement Replacement
2 High Voltage Battery Tray Reinforcement Nut [6x] - - 100 N.m (74 lb ft) High Voltage Battery Tray Lower Rear Reinforcement Replacement
3 High Voltage Battery Tray Reinforcement Bolt [2x] - - 240 N.m (177 lb ft) High Voltage Battery Tray Lower Rear Reinforcement Replacement

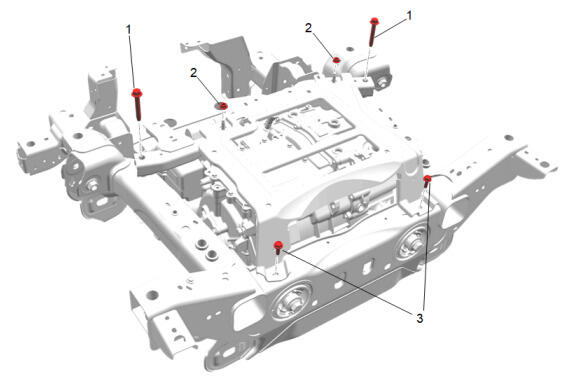

GM6333403Courtesy of GENERAL MOTORS COMPANY
Power Electric Carrier Frame and High Voltage Battery DC/AC Converter Control Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Power Electric Carrier Frame Bolt [2x] - - 58 N.m (43 lb ft) Power Electric Carrier Frame Replacement
2 High Voltage Battery DC/AC Converter Control Module Nut [2x] - - 22 N.m (16 lb ft) Rear Suspension Cradle Replacement (- NYS) , or Rear Suspension Cradle Replacement (NYS)
3 High Voltage Battery DC/AC Converter Control Module Bolt [2x] - - 22 N.m (16 lb ft) Rear Suspension Cradle Replacement (- NYS) , or Rear Suspension Cradle Replacement (NYS)

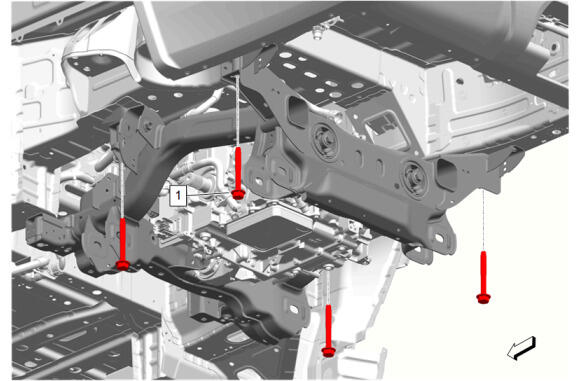

GM6308456Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Cradle

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Cradle Rear Bolt [4x] - - First Pass: 240 N.m (177 lb ft)
Final Pass: 30 degrees - 45 degrees		 Rear Suspension Cradle Removal and Installation (FE2) , or Rear Suspension Cradle Removal and Installation (F47)

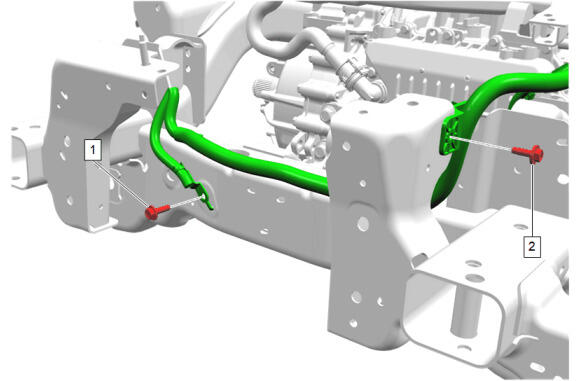

GM6331416Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Cradle/Rear Chassis Harness

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Chassis Rear Wiring Harness Ground Bolt - - 22 N.m (16 lb ft) Rear Suspension Cradle Replacement (- NYS) , or Rear Suspension Cradle Replacement (NYS)
2 Engine Wiring Harness Bolt - - 9 N.m (80 lb in) Rear Suspension Cradle Replacement (- NYS) , or Rear Suspension Cradle Replacement (NYS)
GM6305360Courtesy of GENERAL MOTORS COMPANY
Rear Tire Front Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Tire Front Air Deflector Bolt [3x] - - 2.5 N.m (22 lb in) Rear Tire Front Air Deflector Replacement

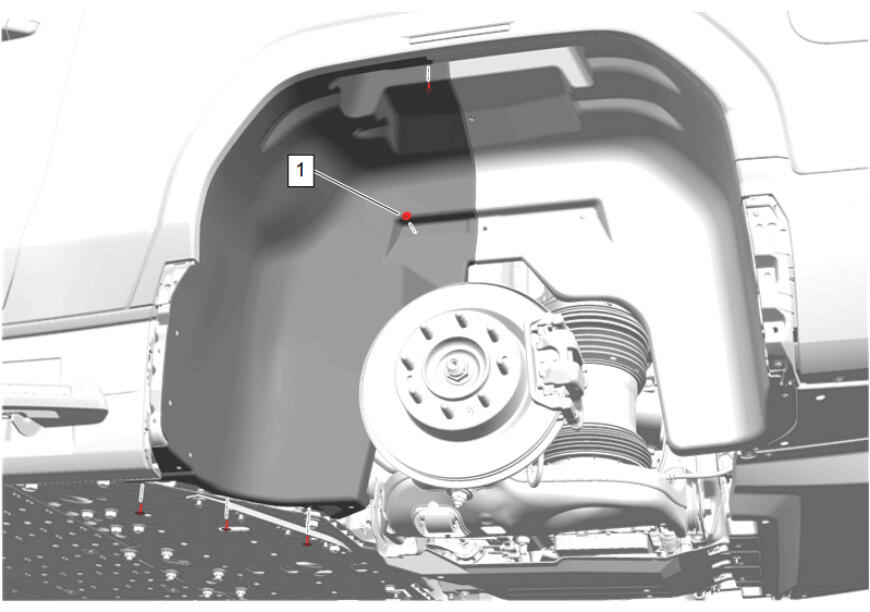

GM6305449Courtesy of GENERAL MOTORS COMPANY
Rear Wheelhouse Panel Front Liner

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheelhouse Liner Bolt [5x] - - 2.5 N.m (22 lb in) Rear Wheelhouse Panel Front Liner Replacement

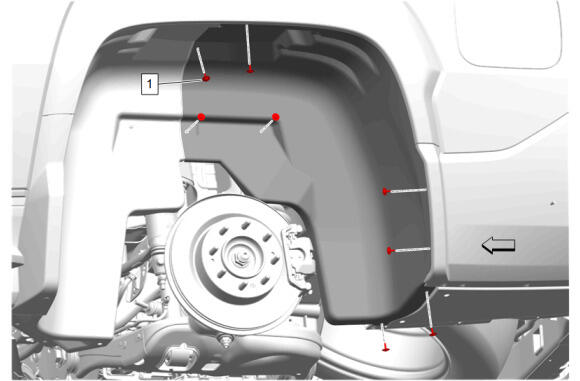

GM6305451Courtesy of GENERAL MOTORS COMPANY
Rear Wheelhouse Panel Rear Liner

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheelhouse Liner Bolt [8x] - - 2.5 N.m (22 lb in) Rear Wheelhouse Panel Rear Liner Replacement

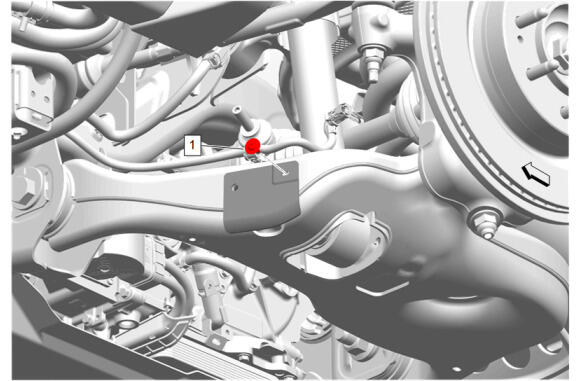

GM6305363Courtesy of GENERAL MOTORS COMPANY
Underbody Front Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Front Air Deflector Bolt - - 2.5 N.m (22 lb in) Underbody Front Air Deflector Replacement - Rear Suspension Lower Control Arm

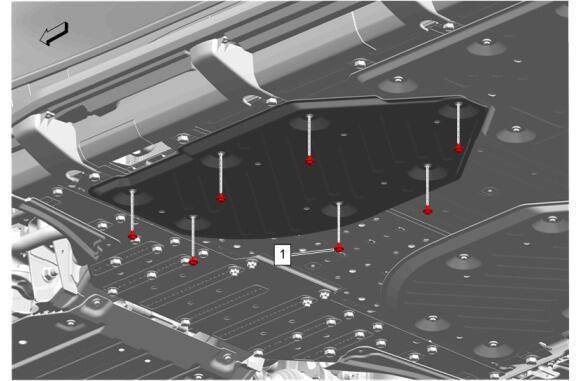

GM6231173Courtesy of GENERAL MOTORS COMPANY
Underbody Number 4 Cross Sill Shield - Front

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Number 4 Cross Sill Shield Retainer [7x] - - 22 N.m (16 lb ft) Underbody Number 4 Cross Sill Shield Replacement - Front

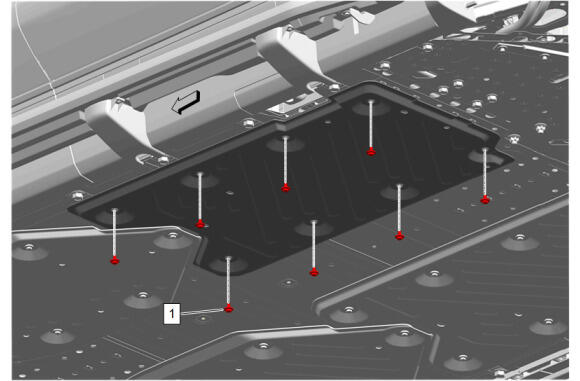

GM6231437Courtesy of GENERAL MOTORS COMPANY
Underbody Number 4 Cross Sill Shield - Rear

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Number 4 Cross Sill Shield Retainer [8x] - - 22 N.m (16 lb ft) Underbody Number 4 Cross Sill Shield Replacement - Rear

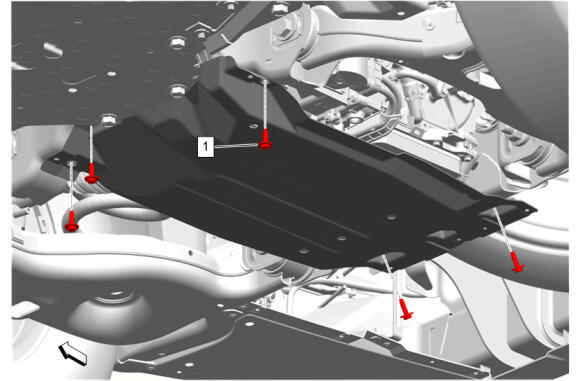

GM6261954Courtesy of GENERAL MOTORS COMPANY
Underbody Rear Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Rear Air Deflector Bolt [5x] - - 22 N.m (16 lb ft) Underbody Rear Air Deflector Replacement

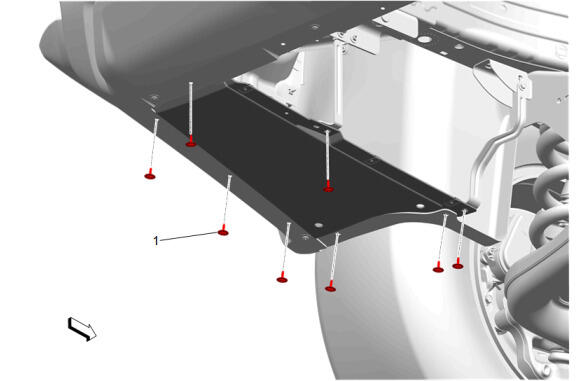

GM6262059Courtesy of GENERAL MOTORS COMPANY
Underbody Rear Air Outer Deflector

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Rear Air Deflector Bolt [8x] - - 2.5 N.m (22 lb in) Underbody Rear Air Outer Deflector Replacement

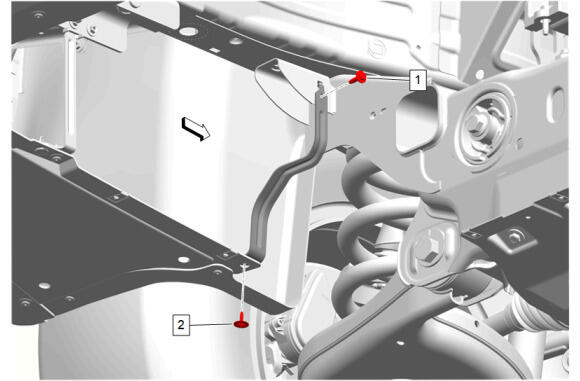

GM6289643Courtesy of GENERAL MOTORS COMPANY
Underbody Rear Air Outer Deflector Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Rear Air Outer Deflector Bracket Bolt - - 9 N.m (80 lb in) Underbody Rear Air Outer Deflector Bracket Replacement
2 Underbody Rear Air Deflector Bolt - - 2.5 N.m (22 lb in) Underbody Rear Air Outer Deflector Bracket Replacement

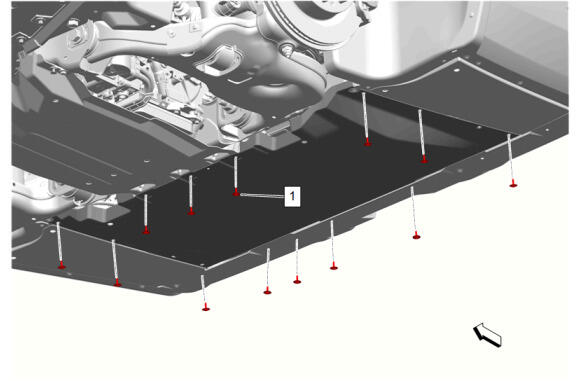

GM6261847Courtesy of GENERAL MOTORS COMPANY
Underbody Rear Air Rear Deflector (RST)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Rear Air Rear Deflector Bolt [13x] - - 2.5 N.m (22 lb in) Underbody Rear Air Rear Deflector Replacement

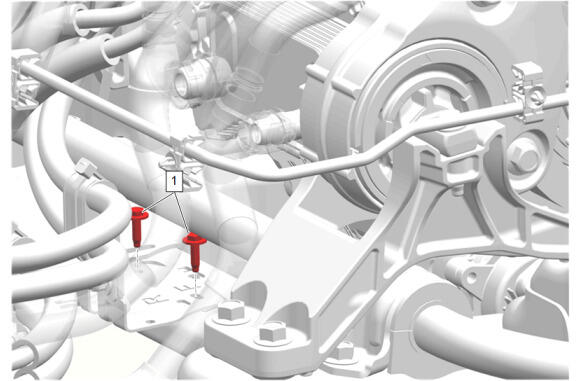

GM6333997Courtesy of GENERAL MOTORS COMPANY
Wiring Harness Bracket Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Wiring Harness Bracket Bolt [2x] - - 9 N.m (80 lb in) Front Cradle Replacement
